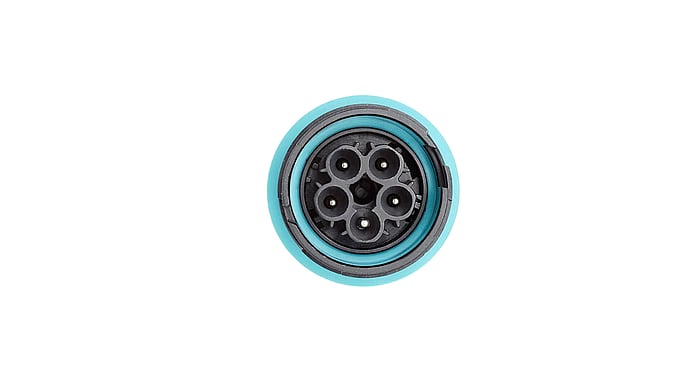

Mini circular connector THB405, plug, 5P, screw, IP66/IP68/IP69
CHF 8.15 excl. VAT, plus shipping costs
Description
5-pin mini circular connector THB405 with bayonet lock from Techno, Italy
Version: Plug
Connection: Screw
Locking: Bayonet
Counterpart: THB.405.B2A
Other Techno products and designs on request.
Technical data
Number of poles: 5
Protection class: IP66/IP68
Dimensions: Ø 38.0 x 80.0 mm / mounted with counterpart Ø 38.0 x 141.2 mm
Cable diameter: Ø 7.0 - 13.5 mm
Cable cross-section: 0.5 - 1.5 mm2
Rated voltage: 500V AC
Rated current: 17.5 A
Temperature range: -40°C...+125°C
Manufacturer: Techno
Subject to errors and technical changes
Additional information
| Circular connector | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
Data sheets
| TH405 | PDF(750.51 KB) |
|---|
Accessories
-
6000337BC
DIN plastic key for cable glands SW24 & SW21CHF 1.00150 Available immediately -
THB.405.B2A
Mini circular connector THB405, socket, 5P, screw, IP66/IP68/IP69CHF 8.85Available to order
