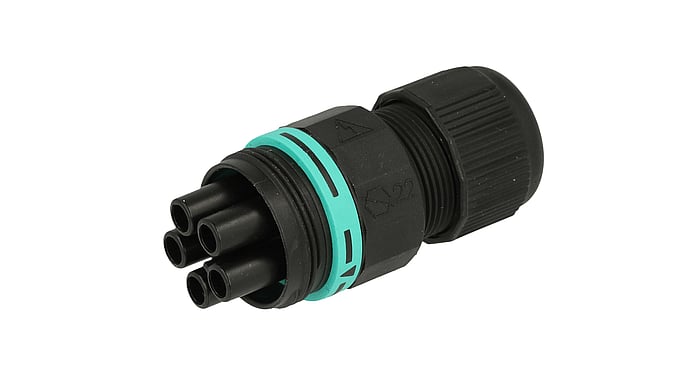

Mini circular connector TH387, socket, 5P, screw connection, IP66/IP68
CHF 7.10 excl. VAT, plus shipping costs
Description
5-pin mini circular connector TH387 with screw lock from Techno
Version: Socket, wire protection
Connection: Screw
Locking: Screw
Counterpart: THB.387.A5A
Also available as a set with matching mating connector: THB.387.AB5A
Other Techno products and designs on request.
Technical data
Number of poles: 5
Protection class: IP66/IP68
Dimensions: Ø 23.0 x 50.0 mm
Cable diameter: Ø 7.0 - 12.0 mm
Cable cross-section: 0.25 - 1.5 mm2
Rated voltage: 500V AC
Rated current: 17.5 A
Temperature range: -40°C...+125°C
Manufacturer: Techno
Subject to errors and technical changes
Additional information
| Circular connector | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
Data sheets
| TH387 | PDF(651.46 KB) |
|---|---|
| Assembly Illustrations TH387 | PDF(1.47 MB) |
