TH394 device connector set, 3P, push-in connection, IP66/IP67/IP68
CHF 4.80 excl. VAT, plus shipping costs
Description

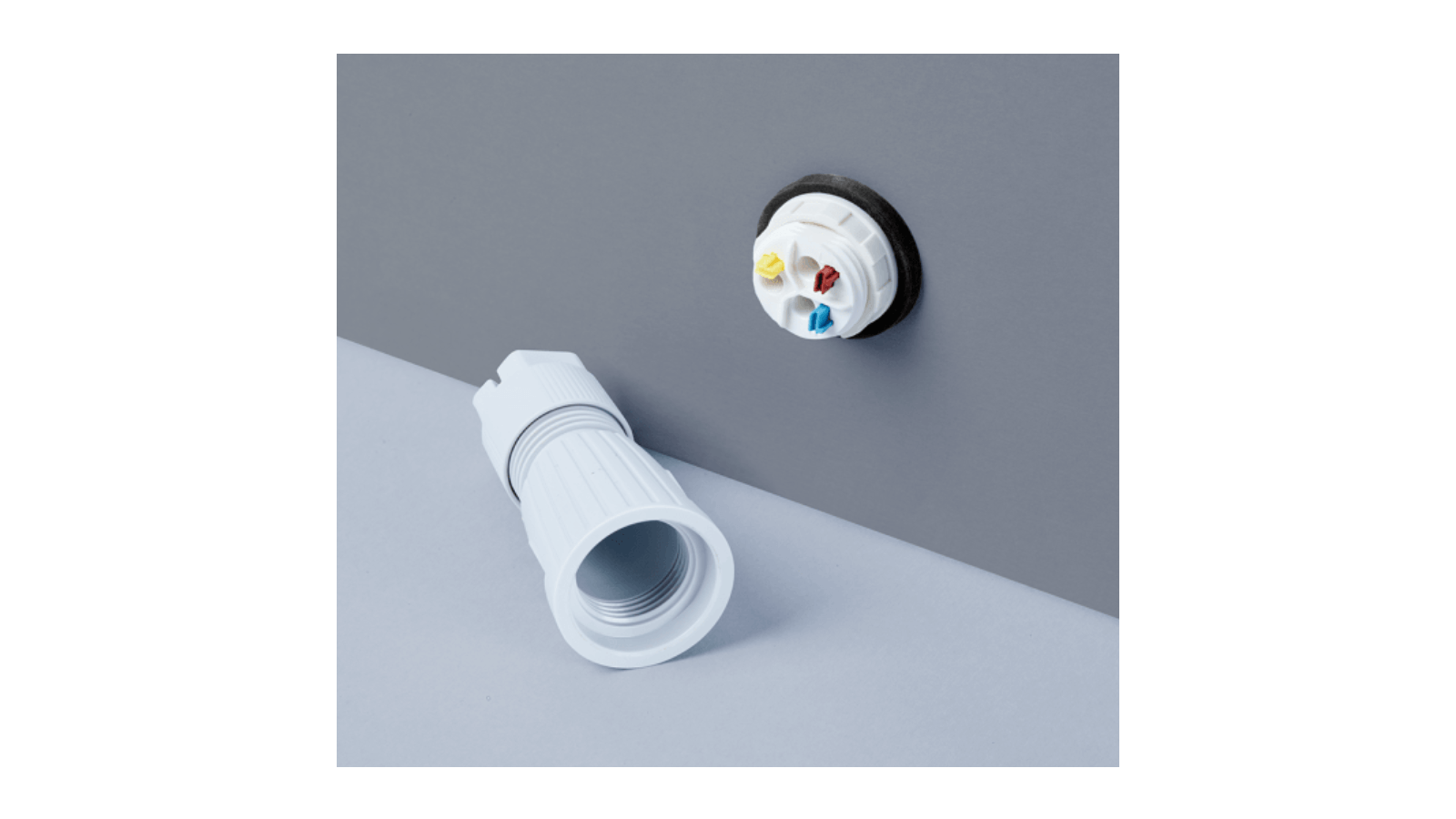

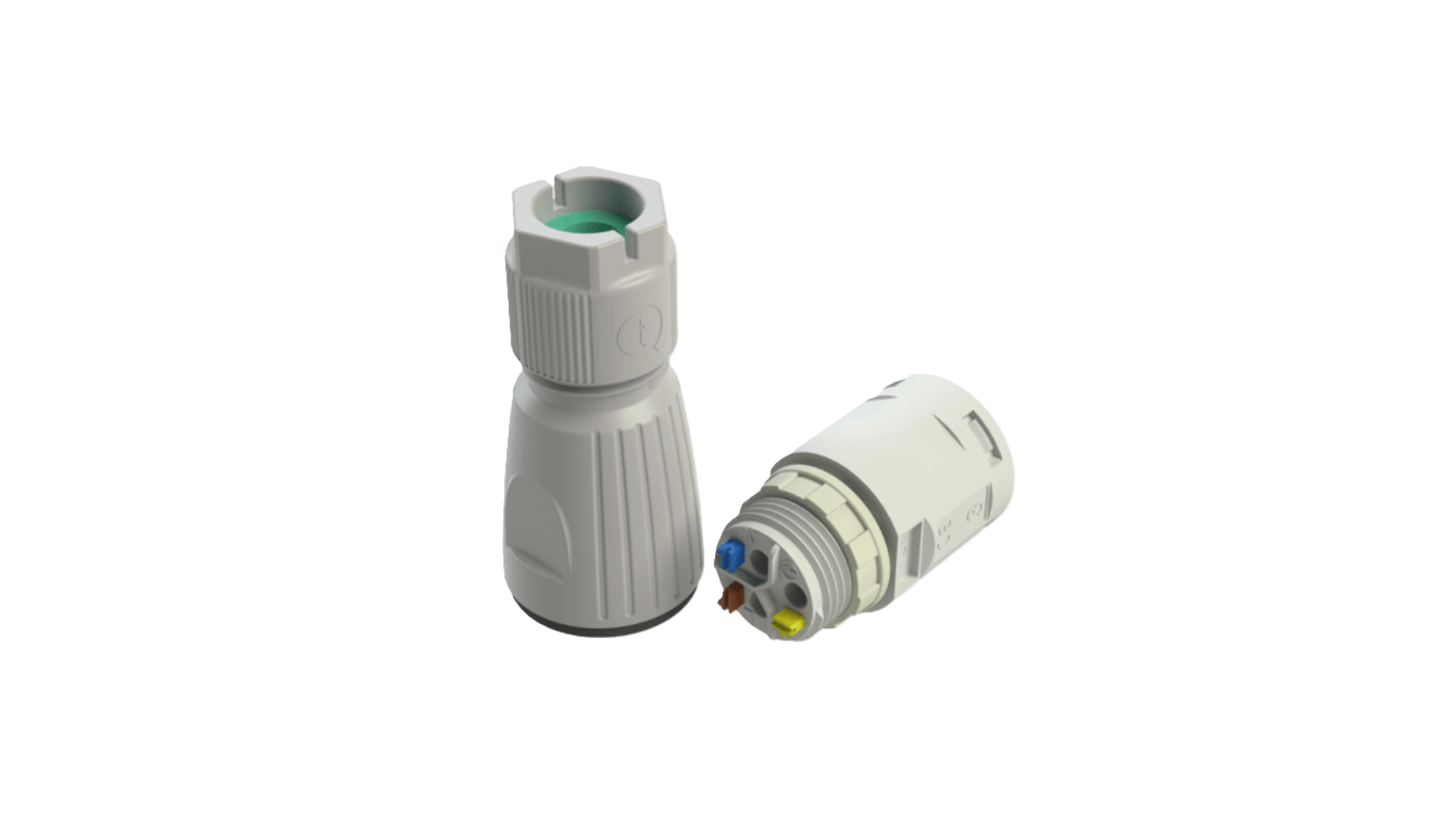

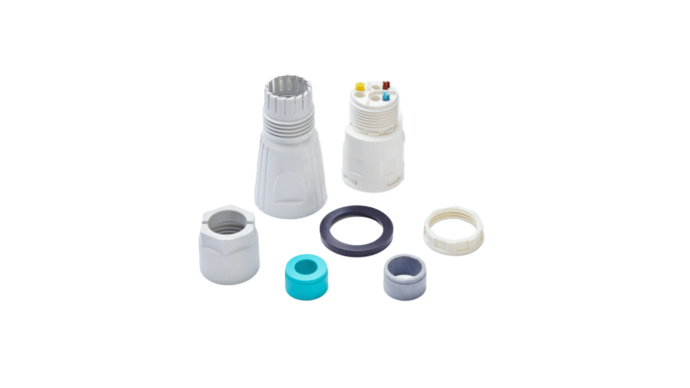

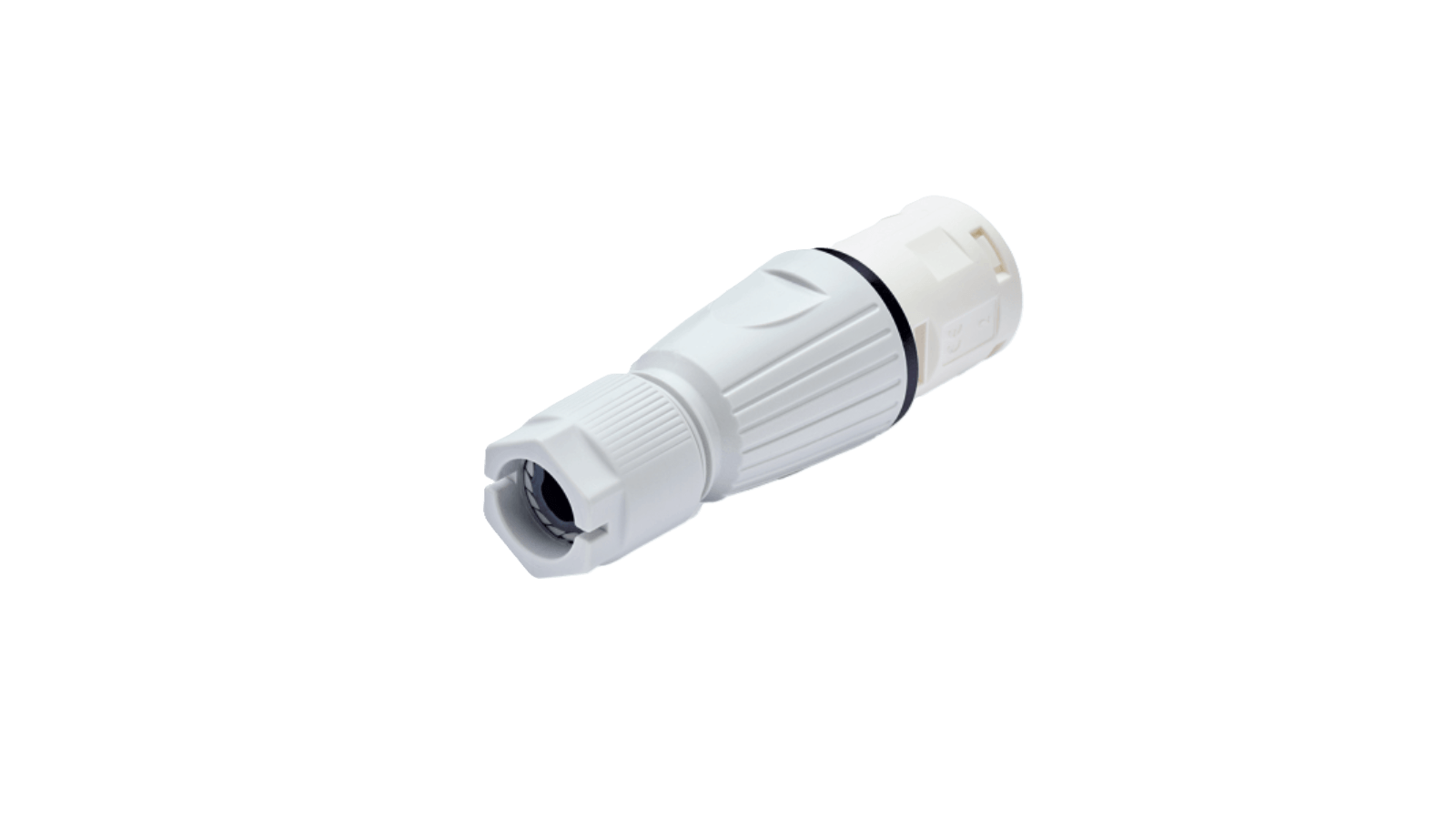

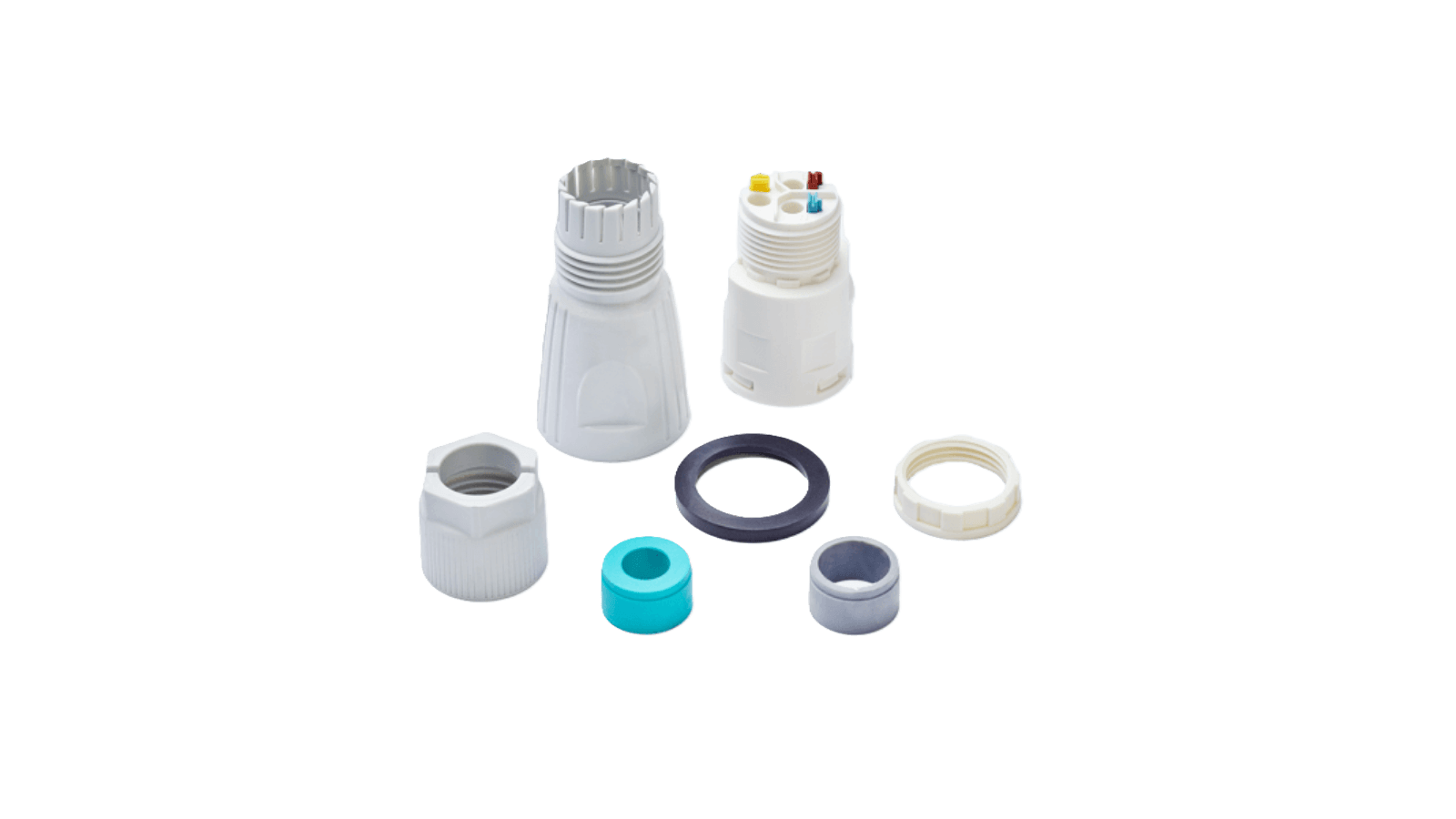

3-pin TH394 device connector set with screw lock from Techno
Version: Rear panel device connector
Connection: Push-in (screwless)
Locking: Screw
Other Techno products and designs on request.
Technical data
Number of poles: 3
Protection class: IP66/IP67/IP68
Dimensions: Ø30 mm x 59.8 mm
Panel diameter: M20
Panel thickness: 2.50mm
Cable diameter:
Cable cross-section: 0.75 - 2.5 mm2 (without wire end ferrule)
Rated voltage: 400V
Rated current: 16 A
Temperature range: -20°C...+70°C
Manufacturer: Techno
Subject to errors and technical changes
Additional information
| Circular connector | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
Data sheets
| TH394 Brochure | PDF(1.86 MB) |
|---|---|
| Technical data sheet TH394 | PDF(1.31 MB) |
