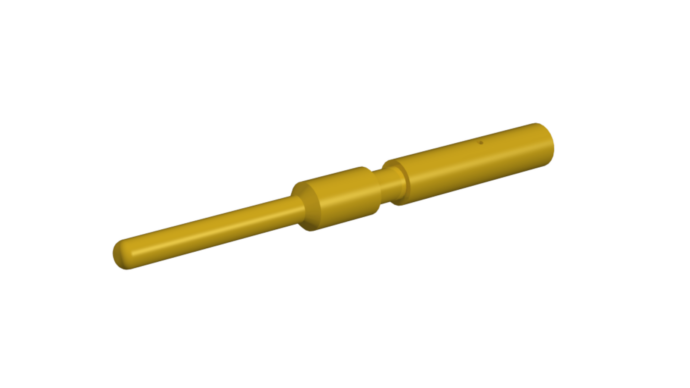

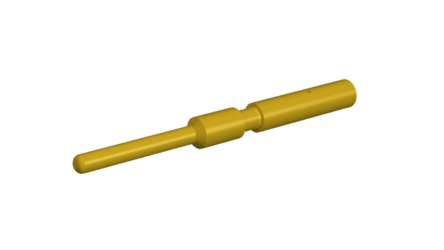

M40 crimping pin 2mm, turned 7.015.952.001
Price per 100 pieces
CHF 150.05 excl. VAT, plus shipping costs
Item no:
7015952001
Stock level:74 Available immediately
Packaging ex works:
1 bag of 100 pcs
Description
Contact: Crimp pin (m) 1.0 - 4.0 mm2 for Hummel contact inserts M40 Performance
Article number: 7015952001 (7.015.952.001)
suitable for contact inserts: M40 power
requires crimp sockets: 7015952002 (7.015.952.002)
(PU 1 bag of 100 pieces)
Suitable crimping pliers: 7000900919 (7.000.900.919), 7000900920 (7.000.900.920)
Technical data
- Connection type: Crimping
- Use: Pen
- Crimp contact: Crimp pin Signal 2 mm turned
- Contact material : Copper-zinc alloy
- Material contact surface: nickel-plated, gold-plated 0.25µm
- Contact Ø signal: 2mm
- Length (L): 37 mm
- Connection range: 1.0 - 4.0mm2
- Suitable crimping pliers: 7000900919, 7000900920
- Manufacturer: Hummel
Subject to errors and technical changes
Additional information
| LEDs | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||
| More | ||||||||||||||
|
||||||||||||||
Data sheets
| Data sheet | PDF(153.35 KB) |
|---|---|
| Catalog excerpt Contacts M40 | PDF(60.68 KB) |
