M16 contact insert (w) 15-pin (12+3), without crimp contacts
Sales price (VP) per 1 piece
CHF 7.15 excl. VAT, plus shipping costs
Item no:
7003985102
Stock level:631 Available immediately
Packaging ex works:
25 pcs
Description
Hummel socket insert - M16 15-pin (12+3), without crimp contacts
.
Other, not published HUMMEL products and versions on request.
Technical data
- Connection type: Crimping
- Number of poles: 15

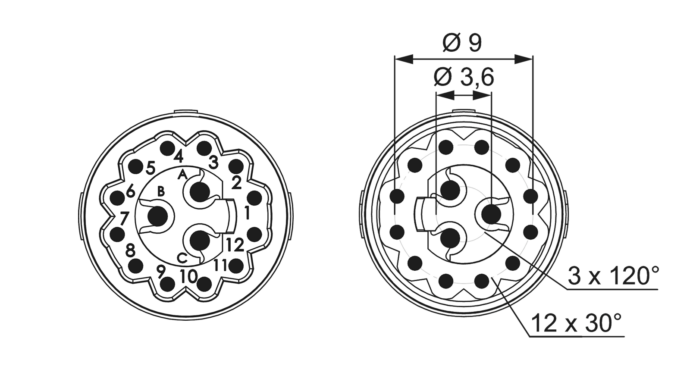

- Pole image: 12+3
- Application: Socket
- Color contact insert: white
- Insulator material: PA 6, PBT
- Number of contacts Signal: 12
- Number of contacts Power: 3
- Contact Ø signal: 0.8 mm
- Contact Ø power: 1.25 mm
- Rated current signal: 3A
- Rated current power: 10A
- Nominal voltage for pollution degree 3 Signal: 24 V~
- Rated voltage for pollution degree 3 Power: 60 V~
- Test voltage signal: 400 V~
- Test voltage power: 840 V~
- Insulation resistance signal: > 10^8 Ω
- Insulation resistance power: > 10^8 Ω
- max. contact resistance signal: 3 mOhm
- Temperature range: -40°C...+125°C
- Degree of soiling: 3
- Flammability: V-0 (UL 94)
