Circular connector accessories

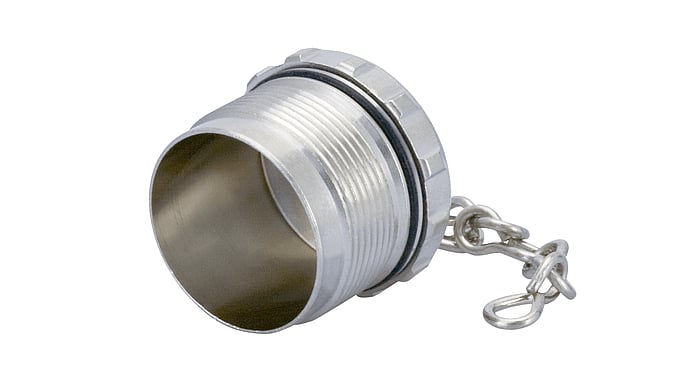

M23 protective cap made of brass with chain 70mm
Sales price (VP) per 1 piece
CHF 10.80 excl. VAT, plus shipping costs
Item no:
70109S0783
Stock level:24 Available immediately
Packaging ex works:
5 piece
Description
M23 protective cap made of brass with chain 70mm
for connectors with internal thread
Other, non-published HUMMEL designs and products on request.
Technical data
- Shape: round
- Seal type: O-ring
- Suitable for: M23 Hybrid, M23 Power, M23 Profinet, M23 RJ45, M23 Signal (except TWILOCK/-S), connectors with female thread (except TWILOCK/-S)
- Length chain/rope: 70 mm
- Material seals/o-rings: FKM (FPM)
- Temperature range: -40°C...+125°C
- Locking type: Screw fastening
- Protection class: IP 67, IP 69 K
- Material: Nickel-plated brass
Errors and technical changes reserved.
