Techno cable socket TH211, 3-gang, 3P, IP65
CHF 25.10 excl. VAT, plus shipping costs
Description

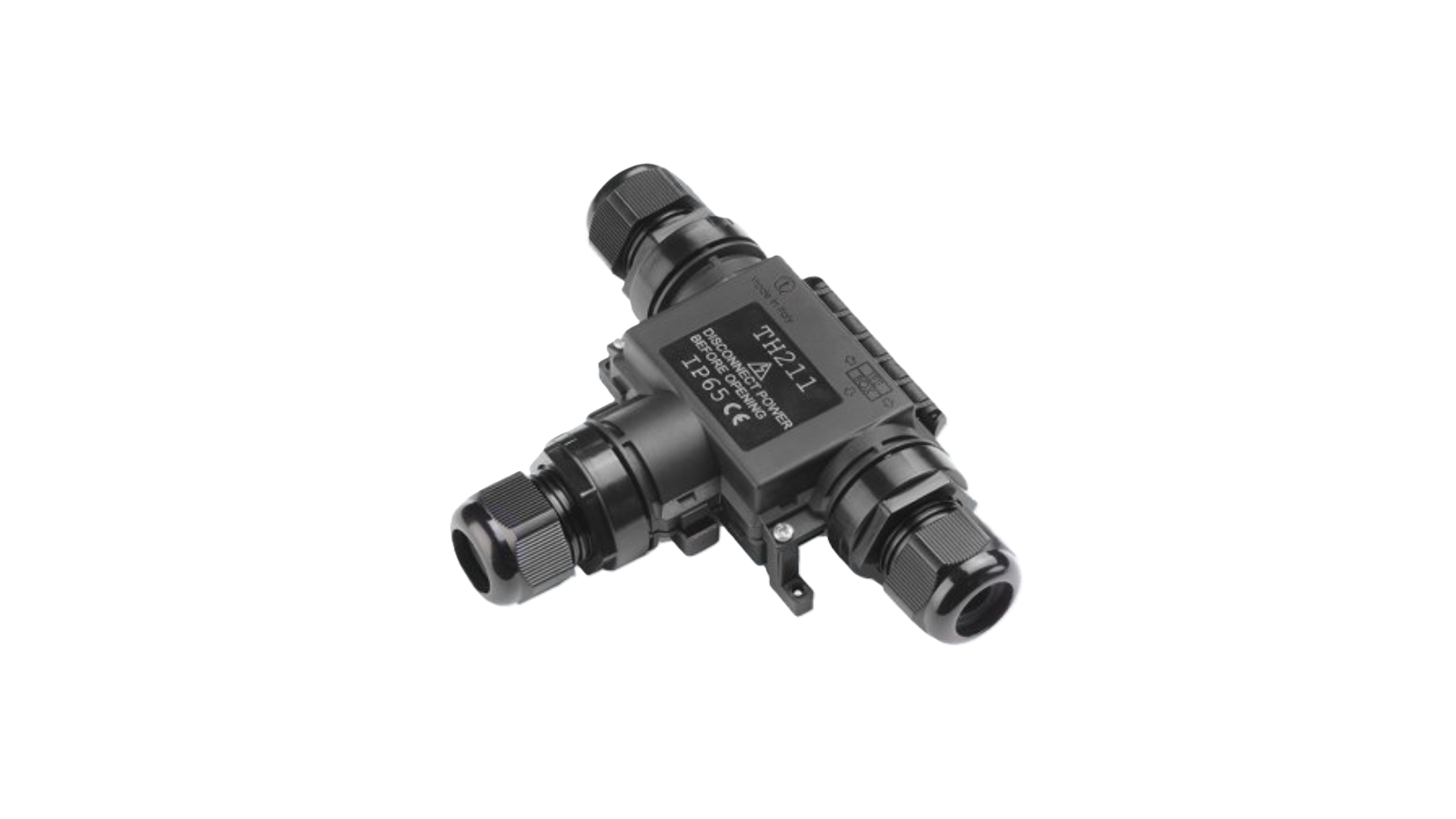

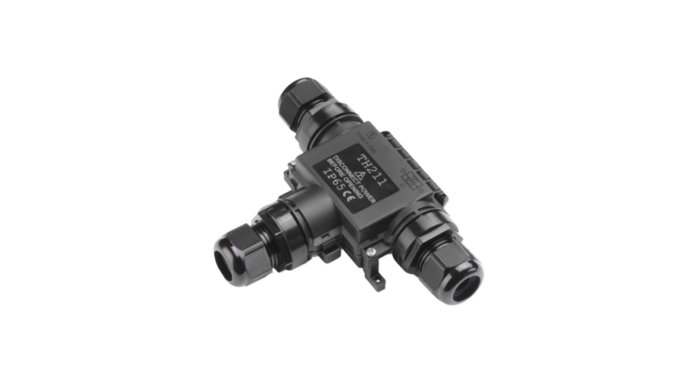

TH211 cable socket from Techno
3-gang cable junction box with 3-pin cable distributor from Techno.
- 3-way cable socket
- For cable diameter: Ø 8.0 - 17.0 mm
- External dimensions: 137.0 x 118.0 x 36.0 mm
- Internal dimensions: 58.0 x 45.0 x 27.0 mm
- Protection classes: IP65
Other Techno products and designs on request.
Technical data
Number of outputs: 3
External dimensions:137.0 x 118.0 x 36.0 mm
Internal dimensions: 58.0 x 45.0 x 27.0 mm
Temperature range: T 85°C
Housing material: PA66 UL94 V2
O-rings: TPE
Material properties: Halogen-free, silicone-free
Subject to errors and technical changes
Additional information
| Cable sockets and power distributors | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| Circular connector | ||||||||||||
|
||||||||||||
| LEDs | ||||||||||||
|
|
||||||||||||
Data sheets
| TH 211 | PDF(991.89 KB) |
|---|
