Techno cable socket TH209, 4P, screw connection, D7-13.5 IP66/IP68
CHF 16.40 excl. VAT, plus shipping costs
Description

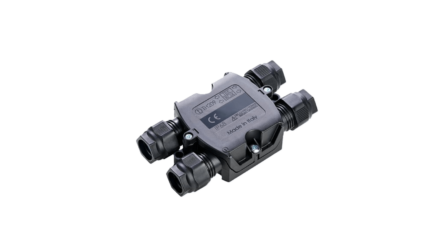

TH209 cable socket from Techno
4-gang cable junction box incl. 4-pin cable connector from Techno.
- 4-gang cable socket (incl. cable connector THB.032.A4B)
- For cable diameter: Ø 7.0 - 13.5 mm
- External dimensions: 121.0 x 64.5 x 28.0
- Internal dimensions: 43.0 x 53.5 x 24.0
- Protection classes: IP66/IP68
Other Techno products and designs on request.
Technical data
Number of outlets: 4
External dimensions: 121.0 x 64.5 x 28.0
Internal dimensions: 43.0 x 53.5 x 24.0
Temperature range: -25°C...+60°C
Housing material: PA66 UL94 V2
O-rings: TPE
Material properties: Halogen-free, silicone-free
Subject to technical changes
Additional information
| Cable sockets and power distributors | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| Circular connector | ||||||||||||||||
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
Data sheets
| THA209 | PDF(1.05 MB) |
|---|
Accessories
-
THA.209.A1A
Techno cable box TH209 (without contents)CHF 9.75537 Available immediately -
THB.209.A5A
Techno cable socket THB209, 4-gang, 5P, screw connection, D7-13.5 IP66/IP68CHF 15.45Available to order
