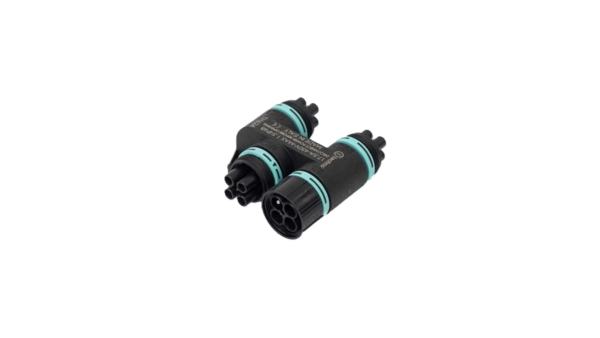

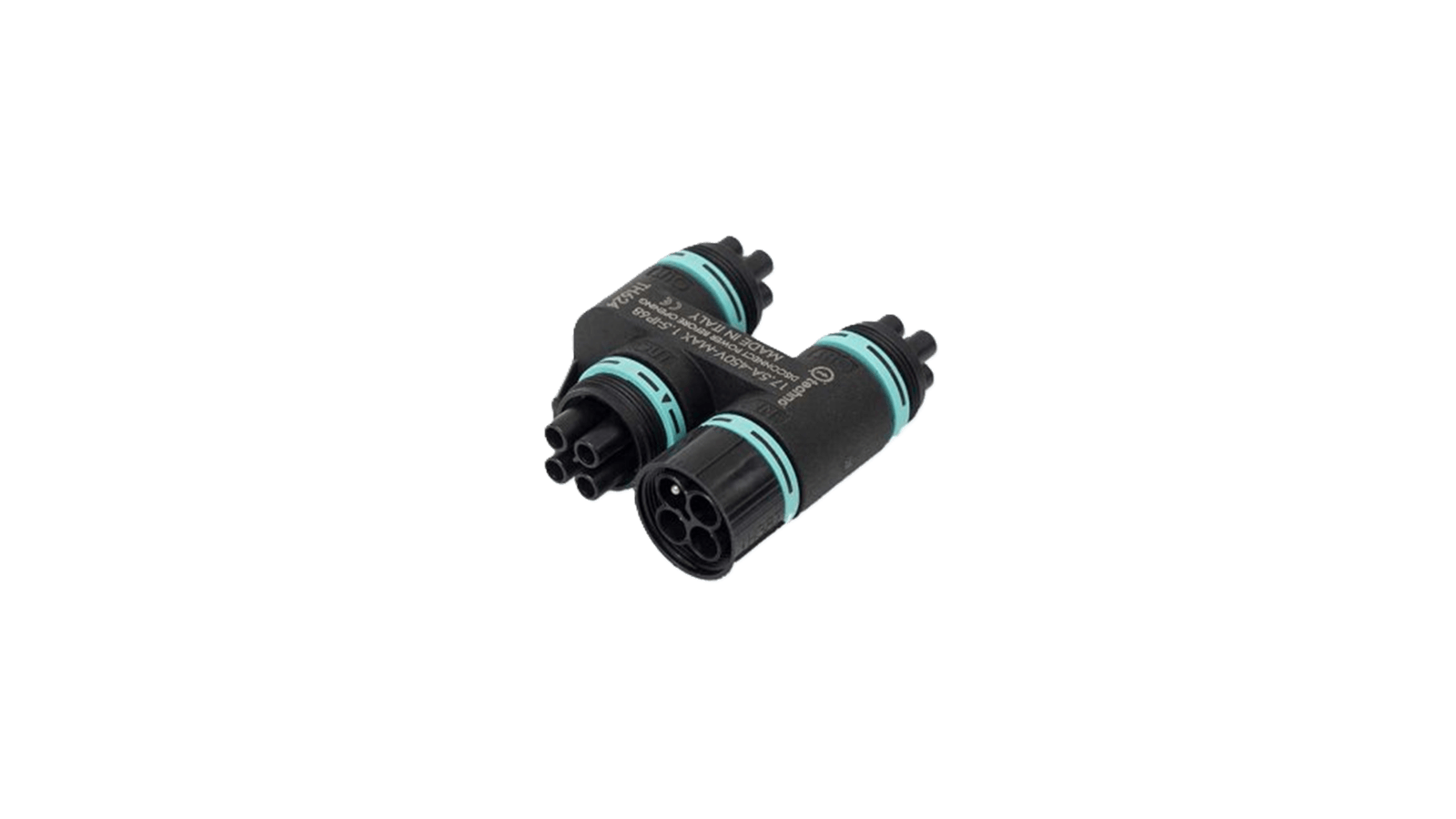

Techno H cable distributor TH624, 4-way, plug & socket, 4P, screw connection, IP68
CHF 25.85 excl. VAT, plus shipping costs
Description
4-way cable connector/power distributor TH624 from Techno, Italy
with 4 connections (1+3) - Simple and quick installation increases efficiency during installation.
Number of inputs/outputs: 4 (1+3)
1x socket
3x plug/pin
Locking: Screw
Matching connectors (single):
Sockets: THB.387.A4A
Plug: THB.387.B4A

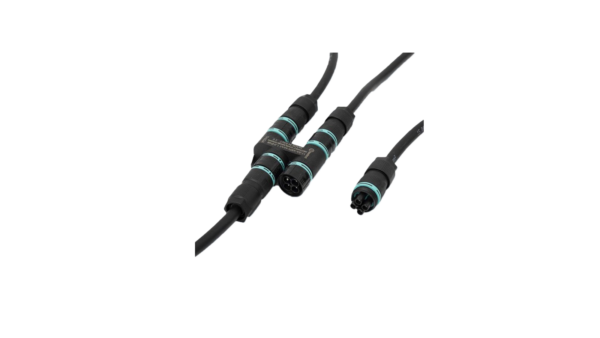

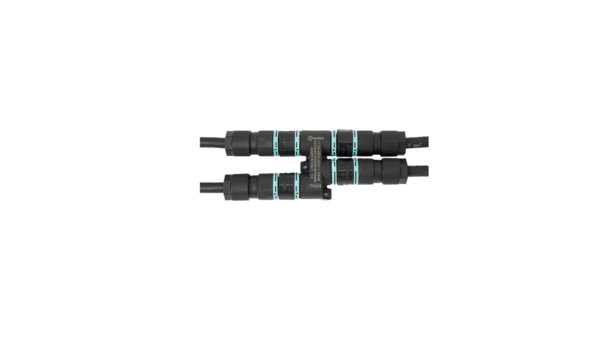

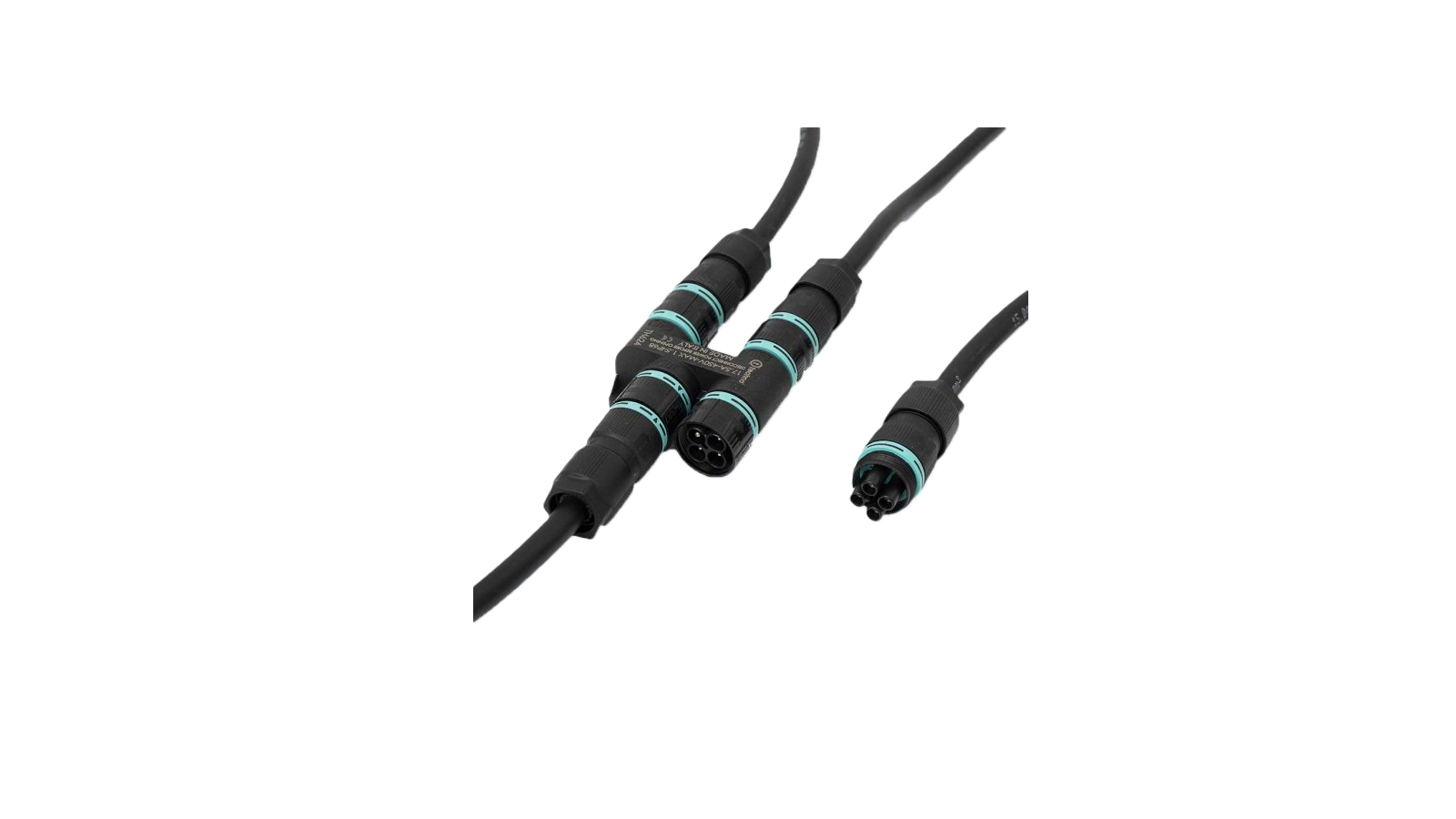

Also available as a set with corresponding plug connectors: THH.624.A4A.R
Other Techno products and designs on request.
Technical data
Number of inputs/outputs: 4 (1+3)
External dimensions:65.0 x 61.0 x 25.0 mm
Nominal voltage: 500V AC
Nominal current: 17.5A
Temperature range: -40°...+125°C
IP protection: IP68
Housing material: PA66 GF UL94 V0
O-rings: TPE
Material properties: Halogen-free, silicone-free
Contacts: Brass
Subject to errors and technical changes
Additional information
| Cable sockets and power distributors | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| Circular connector | ||||||||||
|
||||||||||
| LEDs | ||||||||||
|
|
||||||||||
Data sheets
| TH624 | PDF(1.84 MB) |
|---|---|
| Techno Compact Catalog | PDF(2.76 MB) |
Accessories
-
THB.387.B4A
Mini circular connector TH387, socket, 4P, screw connection, IP66/IP68CHF 6.35200 Available immediately -

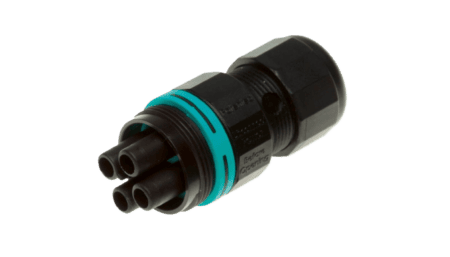

THB.387.A4A
Mini circular connector TH387, plug, 4P, screw connection, IP66/IP68CHF 6.35123 Available immediately
Similar products
-
THB.387.AB3A
Round plug, 3p, pin+socket, screw connection, wire protection, D7-12mm, IP68CHF 11.00Available to order -
THB.387.AB2A
Round plug, 2p, male & female, screw connection, wire protection, D7-12mm, IP68CHF 10.6024 Available immediately -

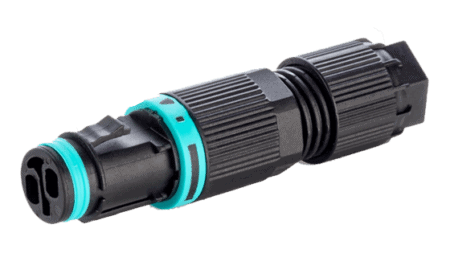

THB.381.B2A
