Plastic cable gland
HSK-K-Multi (metric)
Selling price (VP) per piece
CHF 1.35 - CHF 405.55
Item no:
n. a.
Stock: n. a.
Packaging ex works:
50 piece
Estimated delivery time:
2 weeks
Description

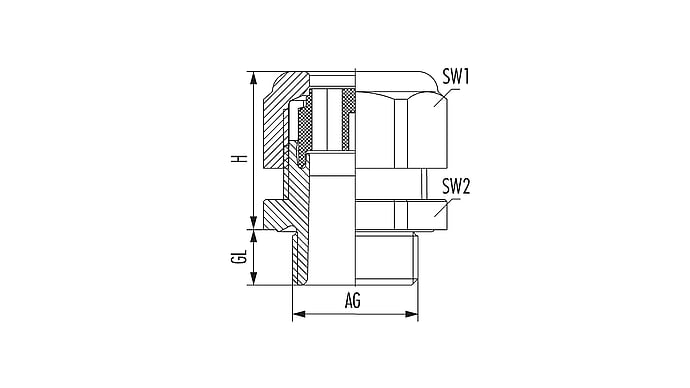

HSK-K-Multi (metric) polyamide
Plastic cable gland from HUMMEL in different colors and for different cable diameters
.
Plastic cable gland from HUMMEL in different colors and for different cable diameters
.
HSK-K: The right solution for every application
HUMMEL offers a huge portfolio of cable glands for industrial applications. The plastic cable glands in the HSK-K series belong to the premium segment and meet the highest quality standards. They meet all requirements for harsh industrial environments, both indoors and outdoors. They have all the relevant certificates and can therefore be used worldwide. Customers can therefore choose between metric thread types, PG or NPT threads. There are also cable glands for flat cables, cable glands with multiple inserts and cable glands with a flexible cable outlet. The HSK-K series includes cable glands made of polyamide and PVDF.
.
// Protection class IP 66, IP 68 up to 10 bar and IP 69K
// RoHS and REACH/SVHC compliant
// free from conflict materials
// halogen and phosphorus-free
// Fire protection class V0 according to UL94
// Outdoor-resistant polyamide in accordance with UL 746C f1 (HSK-K black)
.
// Protection class IP 66, IP 68 up to 10 bar and IP 69K
// RoHS and REACH/SVHC compliant
// free from conflict materials
// halogen and phosphorus-free
// Fire protection class V0 according to UL94
// Outdoor-resistant polyamide in accordance with UL 746C f1 (HSK-K black)
.
HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all relevant approvals for the international markets and for numerous industries. Other, non-published HUMMEL designs and products on request.
Technical data
- Material: Polyamide V0 according to UL94
- Molded seal: Elastomer
- Protection class: IP 54, with additional O-ring: IP68 - 10bar/30mi, IP 69 K
- Temperature range: -40°C...+100°C
- Color: grey / black
- RAL: 7035 / 9005
- Type rating according to: 12, 4, 4X, 6, UL 50 E
// mit zusätzlich vormontiertem O-Ring am Anschlussgewinde auf Anfrage
// langes Anschlussgewinde auf Anfrage
// diese Einsätze sind Beispiele, weitere Einsätze (auch kundenspezifische) auf Anfrage
// Der Kabeldurchmesser darf den Bohrungsdurchmessers bis zu 20% unterschreiten, jedoch maximal 1mm
.
Fehler und technische Änderungen vorbehalten
