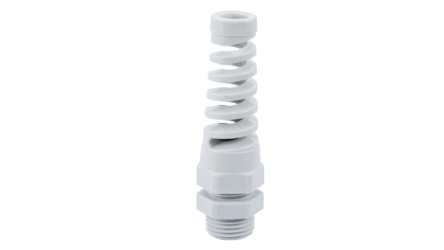

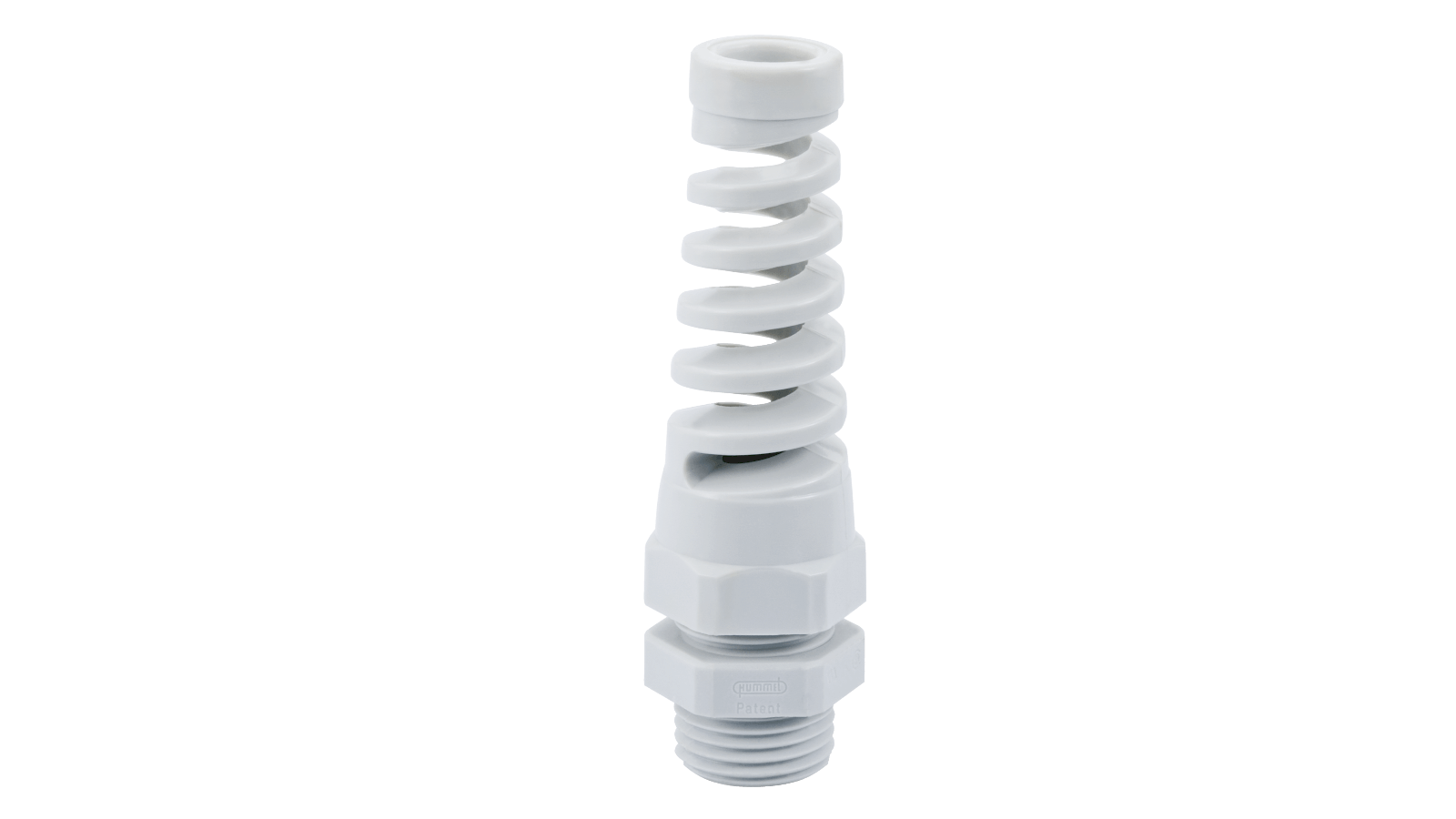

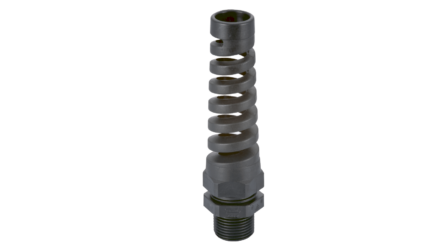

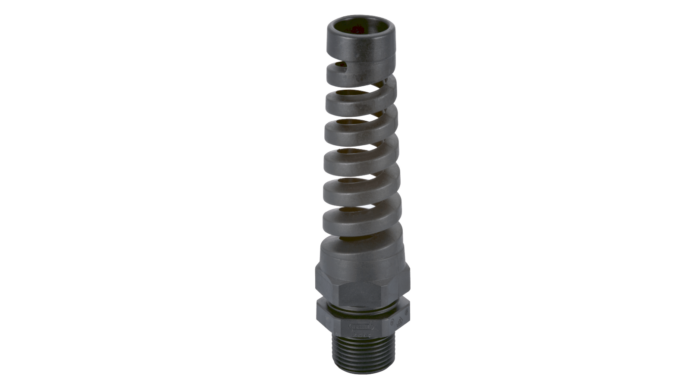

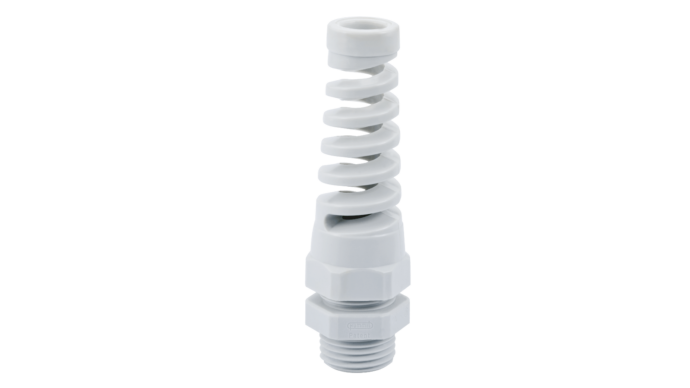

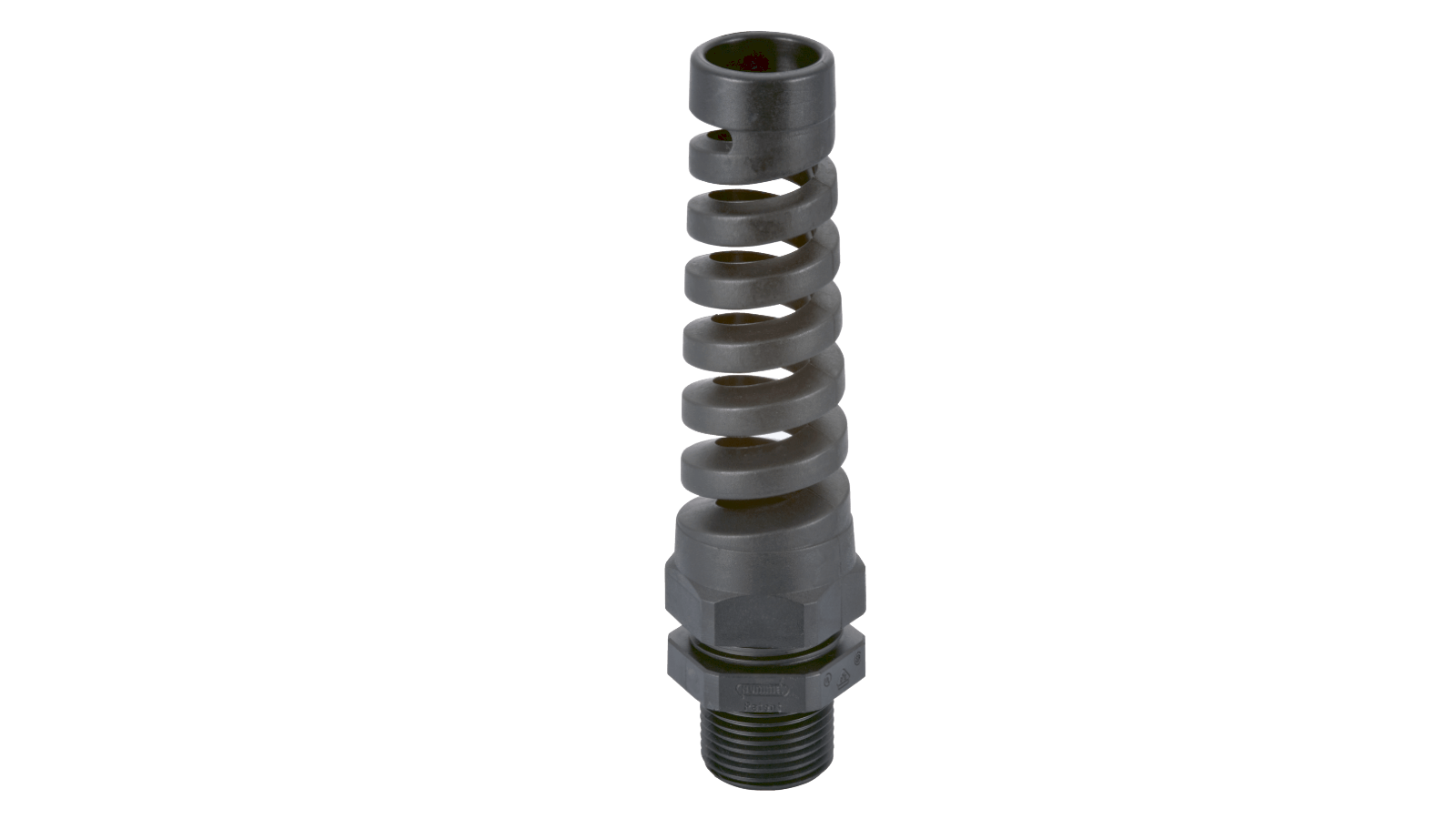

Plastic cable gland
HSK-K-FLEX PG 9 (short, long)
Sales price (VP) per 1 piece
CHF 1.10 excl. VAT, plus shipping costs
Item no:
n. a.
Stock: n. a.
Packaging ex works:
100 piece
Estimated delivery time:
1-2 weeks
Description
HSK-K-FLEX PG 9 (short, long) Polyamide
Plastic cable gland from HUMMEL in different colors and for different cable diameters
.
.
HSK-K: The right solution for every application
HUMMEL offers a huge portfolio of cable glands for industrial applications. The plastic cable glands in the HSK-K series belong to the premium segment and meet the highest quality standards. They meet all requirements for harsh industrial environments, both indoors and outdoors. They have all the relevant certificates and can therefore be used worldwide. Customers can therefore choose between metric thread types, PG or NPT threads. There are also cable glands for flat cables, cable glands with multiple inserts and cable glands with a flexible cable outlet. The HSK-K series includes cable glands made of polyamide and PVDF.
.
// Protection class IP 66, IP 68 up to 10 bar and IP 69K
// RoHS and REACH/SVHC compliant
// free from conflict materials
// halogen and phosphorus-free
// Fire protection class V0 according to UL94
// Outdoor-resistant polyamide in accordance with UL 746C f1 (HSK-K black)
.
// Protection class IP 66, IP 68 up to 10 bar and IP 69K
// RoHS and REACH/SVHC compliant
// free from conflict materials
// halogen and phosphorus-free
// Fire protection class V0 according to UL94
// Outdoor-resistant polyamide in accordance with UL 746C f1 (HSK-K black)
.
HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all relevant approvals for the international markets and for numerous industries. Other, non-published HUMMEL designs and products on request.

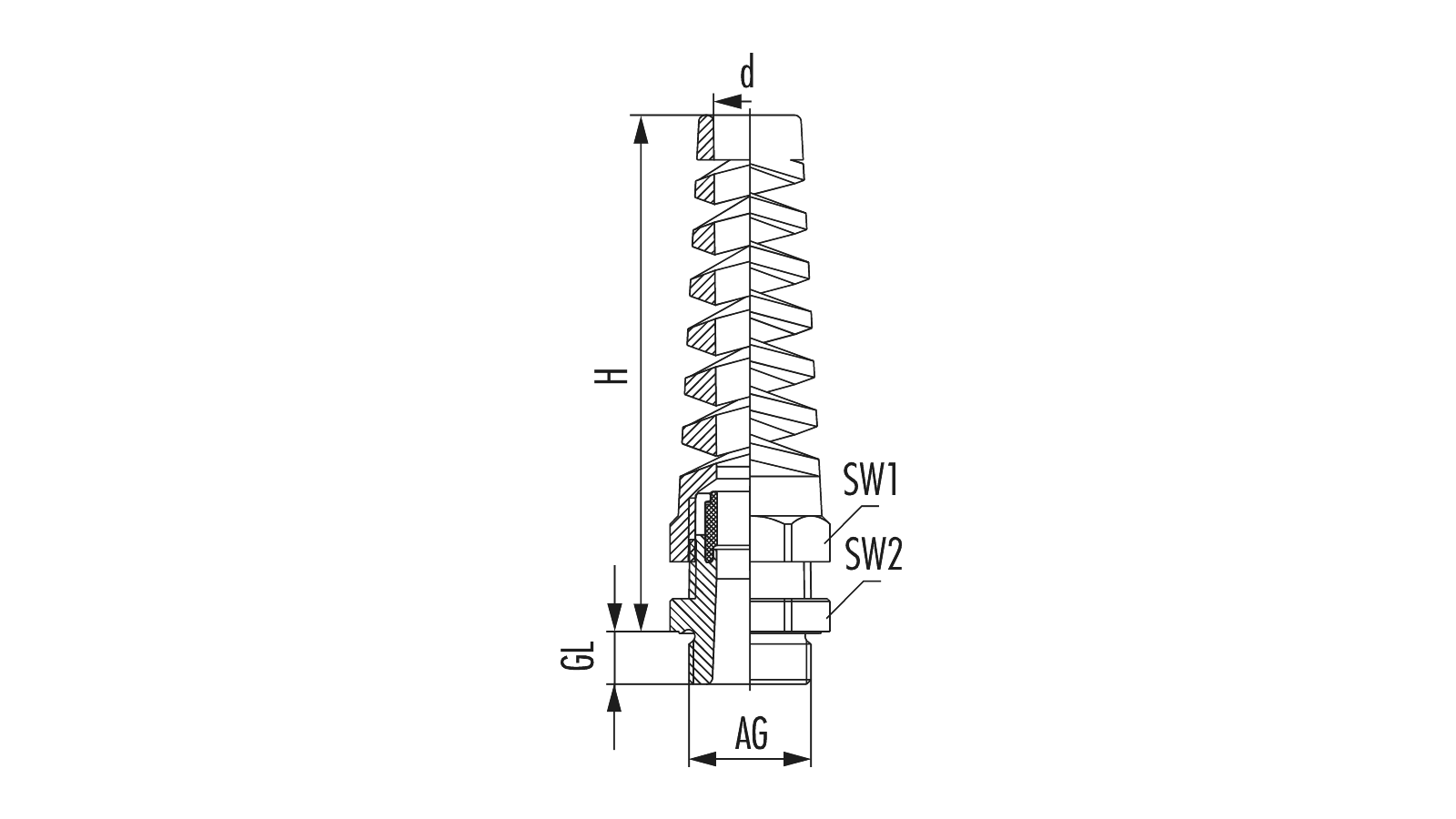

Technical data
- Material: Polyamide
- Molded seal: NBR
- Protection class: IP 54, with additional O-ring: IP68 - 10bar/30min, IP 69 K
- Temperature range: -40°C...+100°C
- Color: grey / black
- RAL: 7035 / 9005
- Male thread (AG): PG 9
- Thread lengths: short / long
// with additional pre-assembled O-ring on the connection thread on request
// other sealing materials e.g. silicone on request
.
Subject to errors and technical changes
Additional information
| LEDs | ||
|---|---|---|
|
||
| More | ||
|
||
Data sheets
| Catalog excerpt HSK-K-Flex (metric/long, PG/long | PDF(839.43 KB) |
|---|
