for the hazardous area
HSK-K-MZ-Ex (metric) Ex cable gland
Selling price (VP) per piece
CHF 5.75 - CHF 45.20
Item no:
n. a.
Stock: n. a.
Estimated delivery time:
2 weeks
Description
HSK-K-MZ-Ex (metric) M16 x 1.5 - M63 x 1.5 Polyamide
Plastic cable gland from HUMMEL for hazardous areas with various threads and cable diameters.
Plastic cable gland from HUMMEL for hazardous areas with various threads and cable diameters.
.
Ex cable glands made of plastic
The cable gland made of specially formulated, glass fiber-reinforced polyamide is designed for use on electrical equipment with Ex e and Ex t types of protection. It has been developed in accordance with the DIN EN IEC 60079-7 and 60079-31 series of standards and complies with the current ATEX and IECEx approvals.
.
// halogen-free
// Protection class IP 68 up to 10 bar
// Vibration protection of the union nut
// Abrasion-resistant labeling
// can be used in zones 1-2 and zones 20-22
// halogen-free
// Protection class IP 68 up to 10 bar
// Vibration protection of the union nut
// Abrasion-resistant labeling
// can be used in zones 1-2 and zones 20-22
.
HUMMEL offers different clamping ranges, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all relevant approvals for the international markets and for numerous industries. Other, non-published HUMMEL designs and products on request.
Technical data
- Material: Polyamide
- Molded seal: NBR
- O-ring material: NBR
- Protection class: IP 68 - 10bar / IP 69 K
- Ex protection class: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da
- Temperature range: -40°C...+70°C
- Color: black
- RAL: 9005
Errors and technical changes reserved.
Additional information
| LEDs | ||||
|---|---|---|---|---|
|
||||
| More | ||||
|
||||
Data sheets
| HSK-K-MZ-Ex (metric, PG) | PDF(740.13 KB) |
|---|
Similar products
-
HSK-MZ-Ex (metric)
HSK-MZ-Ex (metric)CHF 7.30 - CHF 18.95Select version This product has several variants. The options can be selected on the product page -
HSK-M-Ex M16 x 1.5 (metric-long)
HSK-M-Ex M16 x 1.5 (metric-long)CHF 6.95 - CHF 7.90Select version This product has several variants. The options can be selected on the product page -
HSK-M-EMV-D (metric/long)
HSK-M-EMV-D (metric/long)CHF 8.80 - CHF 125.95Select version This product has several variants. The options can be selected on the product page -
HSK-V-Ex
HSK-V-ExCHF 88.40 - CHF 98.25Select version This product has several variants. The options can be selected on the product page -
HSK-K-Ex-Active M16 x 1.5 (short)
HSK-K-Ex-Active M16 x 1.5 (short)CHF 2.40 - CHF 2.60Select version This product has several variants. The options can be selected on the product page -
HSK-M-Ex M25 x 1.5 (metric)
HSK-M-Ex M25 x 1.5 (metric)CHF 8.45 - CHF 1'033.75Select version This product has several variants. The options can be selected on the product page -

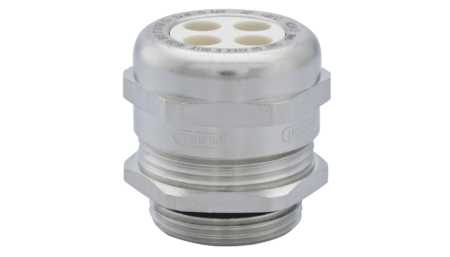

HSK-M-Multi-Ex (metric)
HSK-M-Multi-Ex (metric)CHF 9.30 - CHF 20.70Select version This product has several variants. The options can be selected on the product page -
Hummel V-N-FS (metric)
Hummel V-N-FS (metric)CHF 17.35 - CHF 53.55Select version This product has several variants. The options can be selected on the product page -
Hummel reduction RS-INOX (metric)
Hummel reduction RS-INOX (metric)CHF 19.30 - CHF 33.75Select version This product has several variants. The options can be selected on the product page -

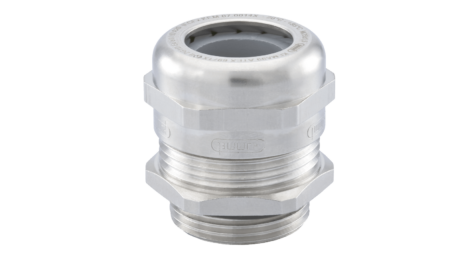

HSK-M-EMV-Ex (metric)
