for the hazardous area
Ex cable gland HSK-K-MZ-Ex d (metric, NPT)
Sales price (VP) per 1 piece
CHF 23.20 - CHF 23.40
Item no:
n. a.
Stock: n. a.
Packaging ex works:
25 pcs
Estimated delivery time:
1-2 weeks
Description

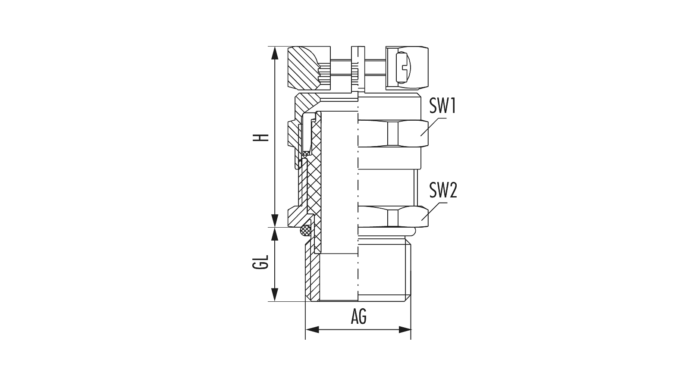

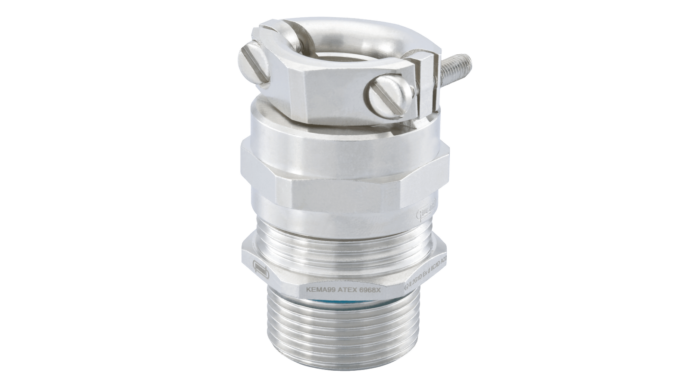

Hummel HSK-K-MZ-Ex d M12 x 1.5 - M40 x 1.5, NPT 3/8″ - 1 1/2″ brass, nickel-plated
Plastic cable gland from HUMMEL for hazardous areas with various threads and cable diameters.
.
Safe explosion protection
Not all explosion protection is the same. There are different scenarios and application sources that require different explosion protection. Ex cable glands from HUMMEL offer protection in very different environments.
.
Ex e Increased safety:
The cable gland prevents the occurrence of sparks and arcs inside or on external parts of electrical equipment that do not occur during normal operation.
.
Ex d Flameproof enclosure:
Parts that can ignite an explosive atmosphere are firmly enclosed in an enclosure. The enclosure withstands the pressure of an explosion and prevents transmission to the outside.
Plastic cable gland from HUMMEL for hazardous areas with various threads and cable diameters.
.
Safe explosion protection
Not all explosion protection is the same. There are different scenarios and application sources that require different explosion protection. Ex cable glands from HUMMEL offer protection in very different environments.
.
Ex e Increased safety:
The cable gland prevents the occurrence of sparks and arcs inside or on external parts of electrical equipment that do not occur during normal operation.
.
Ex d Flameproof enclosure:
Parts that can ignite an explosive atmosphere are firmly enclosed in an enclosure. The enclosure withstands the pressure of an explosion and prevents transmission to the outside.
.
Ex ta protection against dust:
The cable gland protects the enclosure against the ingress of dust in accordance with EN IEC 60529
The cable gland protects the enclosure against the ingress of dust in accordance with EN IEC 60529
.
HUMMEL has many years of experience in handling components for explosion-protected areas. This is the reason for a sophisticated range of Ex products in different materials and variants. Further, unpublished versions on request.
Technical data
- Material: Nickel-plated brass
- Clamping insert: Polyamide V0 according to UL94
- Molded seal: FKM
- O-ring material: FKM
- Protection class: IP68 - 10bar/30min, IP 69 K
- Ex protection class: II 1D Ex ta IIIC Da, II 2G Ex db IIC Gb
- Temperature range: -60°C...+105°C
- Variant: Metric
- External thread (male): M12 x 1.5 - M40 x 1.5 / NPT 3/8″ - 1 1/2″
- Cable diameter: 3 - 6.5 mm... 22-32 mm
- Product group: Ex d
Errors and technical changes reserved.
Additional information
| LEDs | ||||
|---|---|---|---|---|
|
||||
| More | ||||
|
||||
Data sheets
| Catalog excerpt HSK-K-MZ-Ex d (metric, NPT) | PDF(737.2 KB) |
|---|
