V-INOX-Ex d (metric)
CHF 14.60 - CHF 15.60
Description

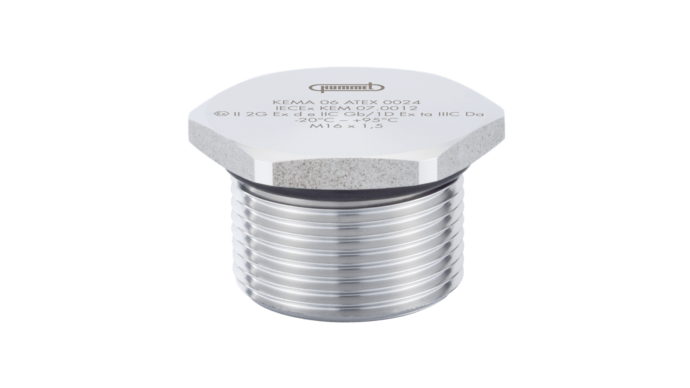

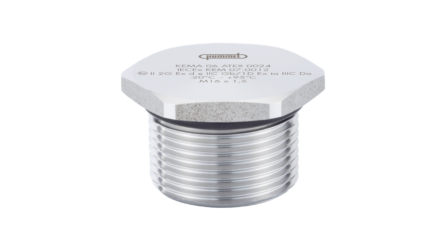

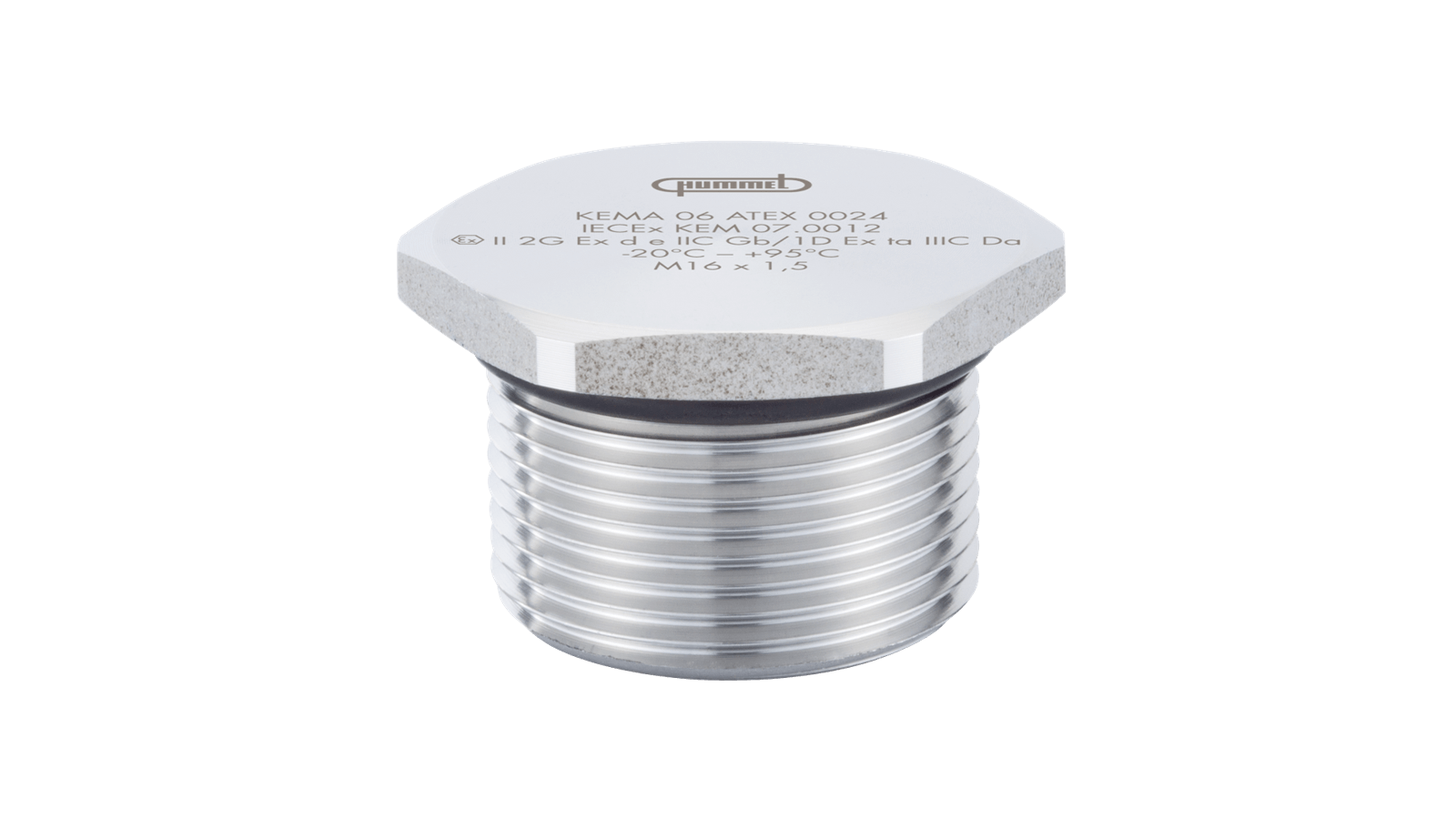

Closure V-INOX-Ex d (metric) INOX 1.4404
The closures are available in different materials, sizes and with different thread types.
.
Ex accessories
Cable glands for explosion-protected areas also require accessories for explosion-protected areas. HUMMEL has developed a wide range of accessories precisely for this segment. These accessories meet all the requirements for hazardous areas and have the necessary certifications and approvals.
.
// Accessories made of plastic, brass and stainless steel
// Closures with Ex approvals
// Reducers in many different sizes
.
Other, non-published HUMMEL designs and products on request.
Technical data
- Material: INOX 1.4404
- O-ring material: NBR
- Protection class: IP68 - 10bar, IP 69 K
- Ex protection class: II 2G Ex db eb IIC Gb / II 1D Ex ta IIIC Da
- Temperature range: -20°C...+95°C
Subject to errors and technical changes
