Cable gland accessories
Hummel V-NE-SD with O-ring (metric)
Sales price (VP) per 1 piece
CHF 0.85 - CHF 1.80
Item no:
n. a.
Stock: n. a.
Packaging ex works:
25 pcs
Estimated delivery time:
1-2 weeks
Description

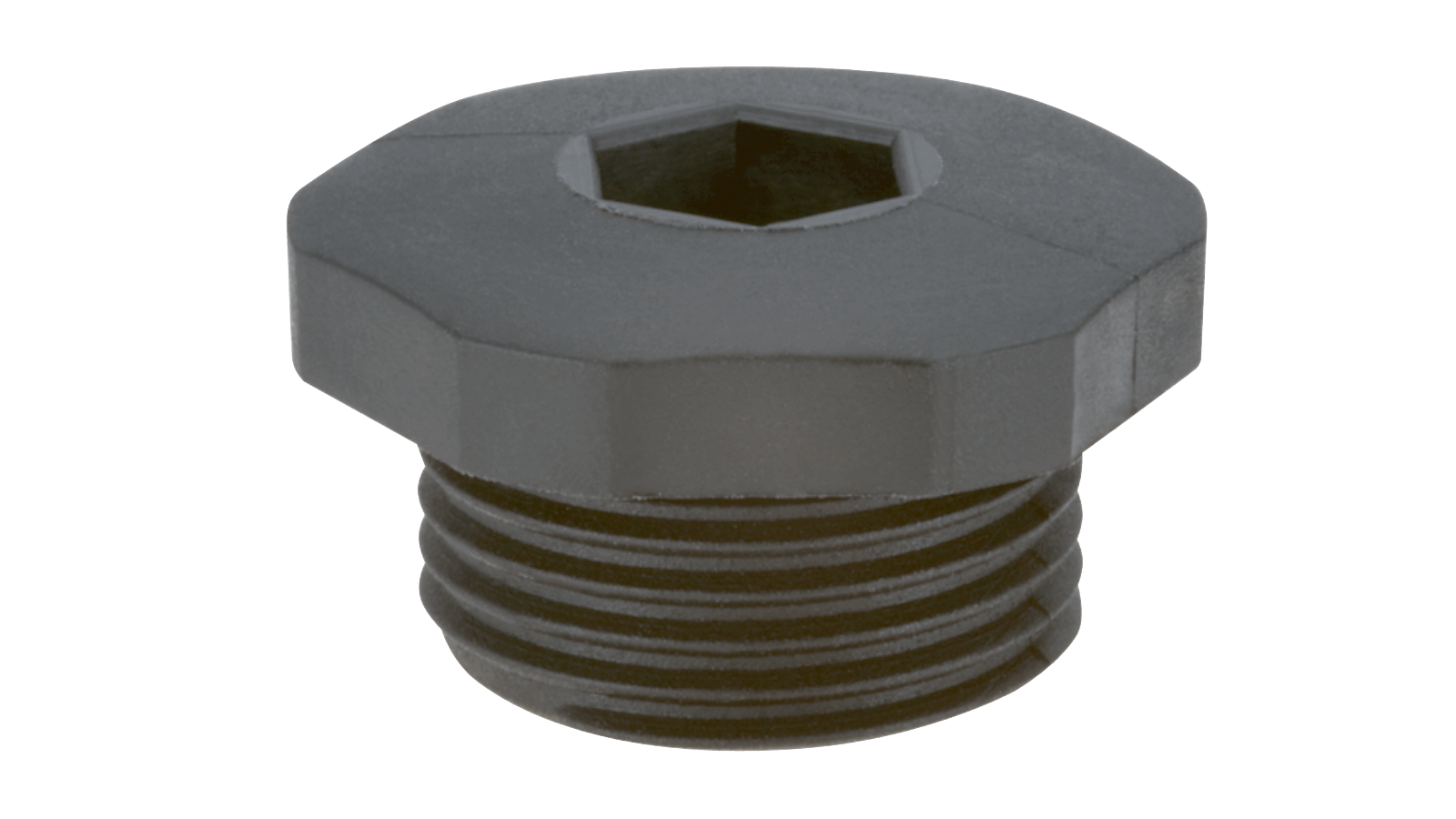

Closure V-NE-SD with O-ring (metric) Polyamide, glass fiber reinforced
For some applications, it is the salt in the soup: the accessories. Seemingly insignificant, but always extremely important. This is because the desired range of functions can often only be achieved with the right accessories. This is why HUMMEL offers a huge range of accessories that are ideally matched to the cable glands and have been tried and tested over many years.
.
.
// Zubehörteile aus Kunststoff, Messing und Edelstahl
// Verschlüsse und Gegenmuttern
// O-Ringe und Anschlussgewinde-Dichtringe
// verschiedene Einsätze (Multi, Flaka)
// Reduzierungen und Erweiterungen
.
Die Zubehörteile gibt es in unterschiedlichen Materialien, Grössen und mit verschiedenen Gewindetypen. Auch die HUMMEL-Zubehörteile verfügen über alle relevanten Zulassungen für die internationalen Märkte.
.
// Verschlüsse und Gegenmuttern
// O-Ringe und Anschlussgewinde-Dichtringe
// verschiedene Einsätze (Multi, Flaka)
// Reduzierungen und Erweiterungen
.
Die Zubehörteile gibt es in unterschiedlichen Materialien, Grössen und mit verschiedenen Gewindetypen. Auch die HUMMEL-Zubehörteile verfügen über alle relevanten Zulassungen für die internationalen Märkte.
.
Other, non-published HUMMEL designs and products on request.
Technical data
- Material: Polyamide, glass fiber reinforced
- O-ring material: NBR
- Protection class: IP68 - 10bar/30min, IP 69 K
- Temperature range: -20°C...80°C
- Tightening torque: 10 Nm
- Color: black
- RAL: 9005
- Variant: Metric
- External thread (male): M12 x 1.5 / M16 x 1.5 / M20 x 1.5 / M25 x 1.5 / M32 x 1.5 / M40 x 1.5 / M50 x 1.5 / M63 x 1.5
Subject to errors and technical changes
