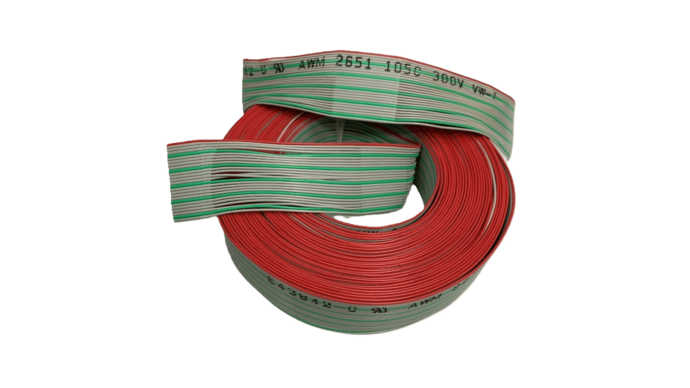

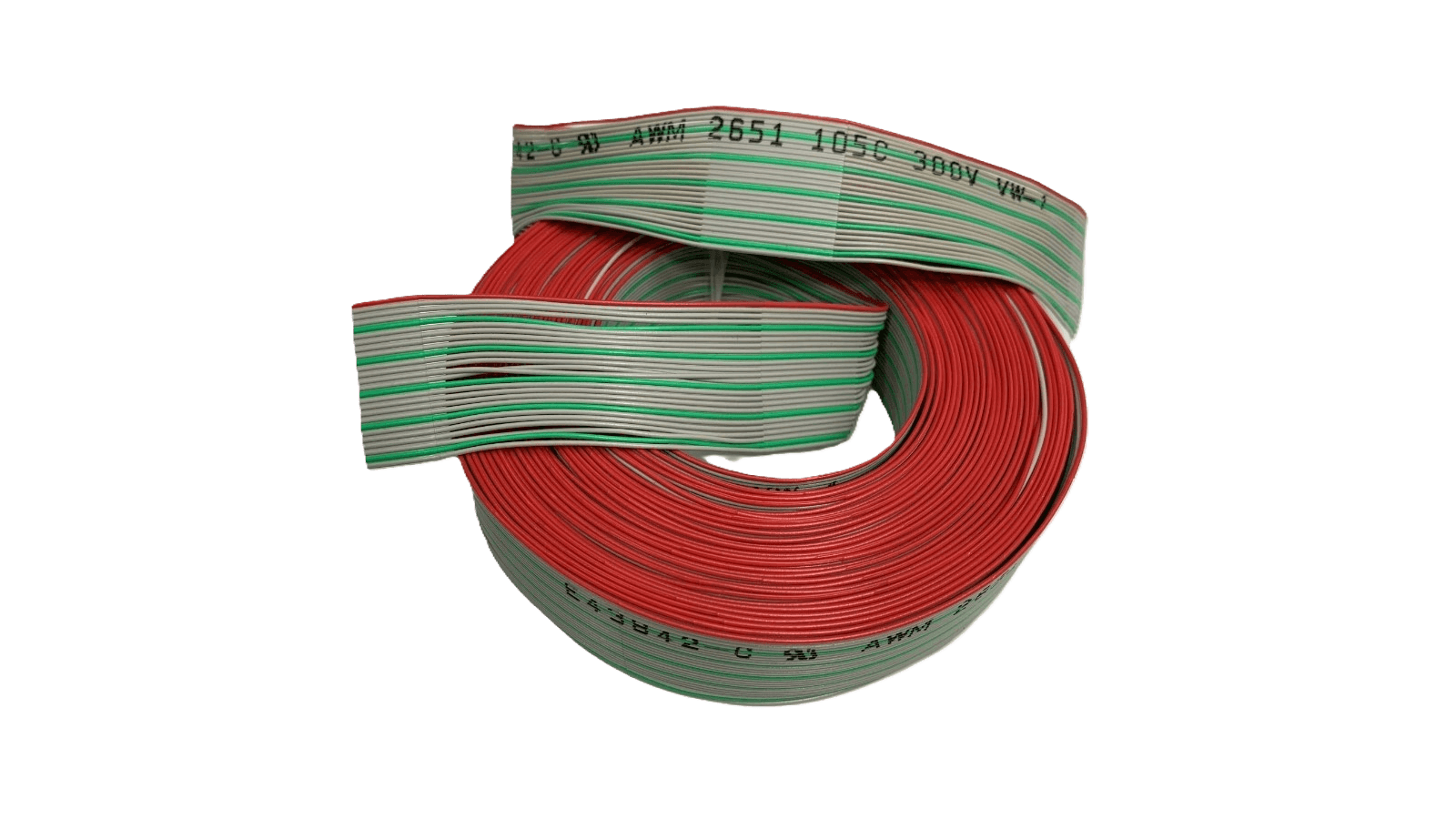

Ribbon cable, 9-64-pin, AWG 28, gray
CHF 1.35 - CHF 4.20
Description
Standard ribbon cable FLEX-B4 from OKI (Japan), 9-64-pin, AWG28, gray, with 1.27 mm contact pitch
Style No: 2651 FLEX-B 0.127 2651
Product: C0089211
Size: 28 AWG
Jacket Material: PVC
Number of wires/number of poles: 9-64
Reel length: 61m (200 Ft)
Technical data
Rated current: 1A
Rated voltage: 300V
Cable cross-section: AWG 28 (7/0.127)
Rating: 105°C 300V
Impedance: 100 Ohm
Insulation: PVC
Color code: Conductor 1 red, conductor 5, 10, 15... etc. green, remaining conductors gray
Errors and technical changes reserved.
Additional information
| LEDs | ||||
|---|---|---|---|---|
|
||||
| More | ||||
|
||||
Data sheets
| Data sheet OKI | PDF(71.03 KB) |
|---|
Accessories
-
D-Sub connector for ribbon cable
D-Sub connector for ribbon cableCHF 0.00 - CHF 7.30Select version This product has several variants. The options can be selected on the product page
Similar products
-
L04A-11PABAB12CM
Flat cable 11-pin, 2.54 mm pitch, length: 120 mmCHF 102.102100 Available immediately -

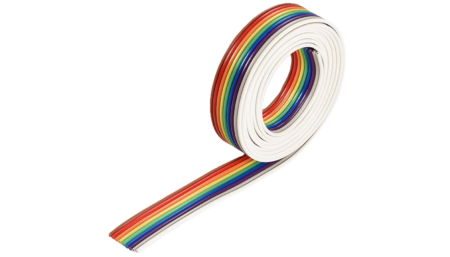

Ribbon cable, 9-64-pin, AWG 28, colored
