Current transformer

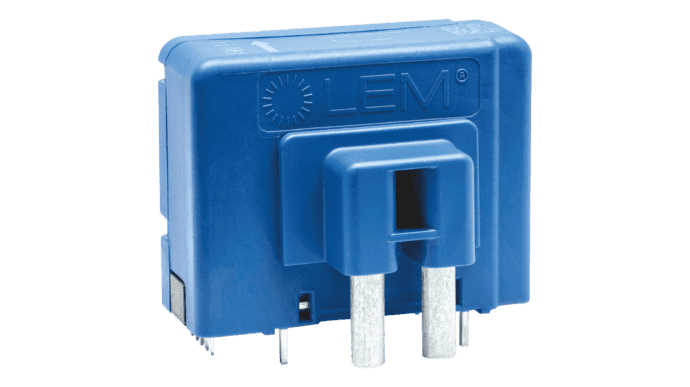

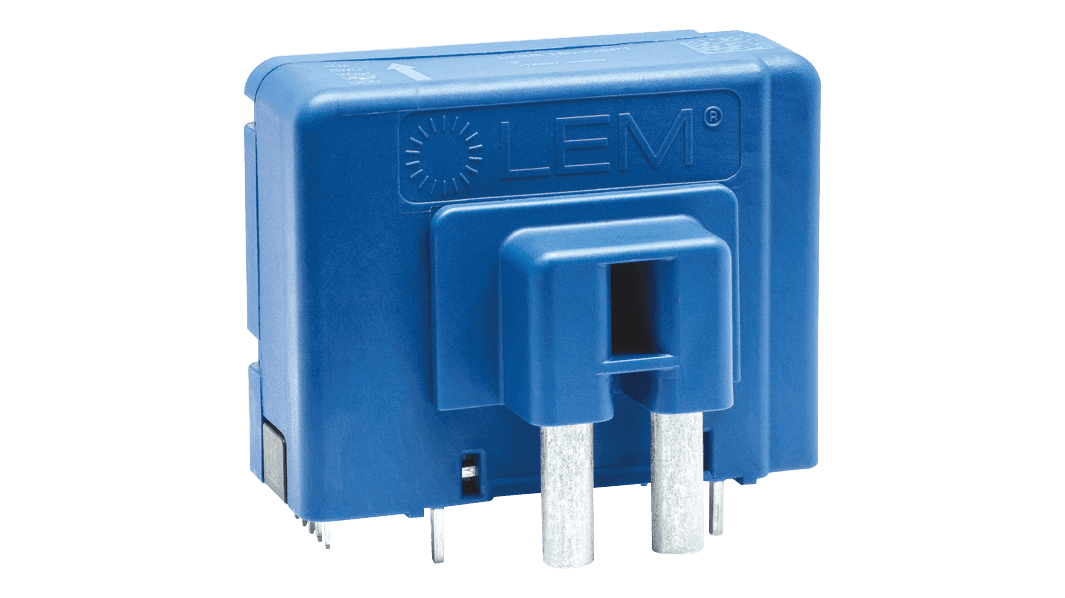

Current transformer 150A / DC, AC, pulse / low drift / high measuring range
CHF 53.10 excl. VAT, plus shipping costs
Item no:
LZSR 150-TP/SP2
In stock: Available to order
Description
- Measuring range up to 3 x the primary rated current (450A peak for the 150A model LZSR 150-P/SP1)
- 150A Nominal current types
- Printed circuit board assembly
- ASIC based Closed Loop (C/L) reverb effect technology
- Low offset drift down to 3ppm/K of Vref (7 times better than the previous generation of C/L Hall effect current transformers)
- Unique, compact housing for all areas (37.75 x 48.2 x 19.4 mm)
Technical data
- Operating temperature range from -40°C to +85°C
- Unipolar supply voltage +5V
- Internal reference voltage output available on additional pin
- Overcurrent detection output (threshold value set to 1.93 x Ipn) available as standard option on additional print
- Available either with primary conductor opening (LZSR-P) or with integrated primary conductor (LZSR-TP)
Remarks
- Specially adapted to 70-120kW solar inverters
Additional information
| Current transformer | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| LZSR 150-TP-SP2 | PDF(928.95 KB) |
|---|
Downloads
| 3D Step File LZSR 150-TP-SP2 | Zip file (624.28 KB) |
|---|
