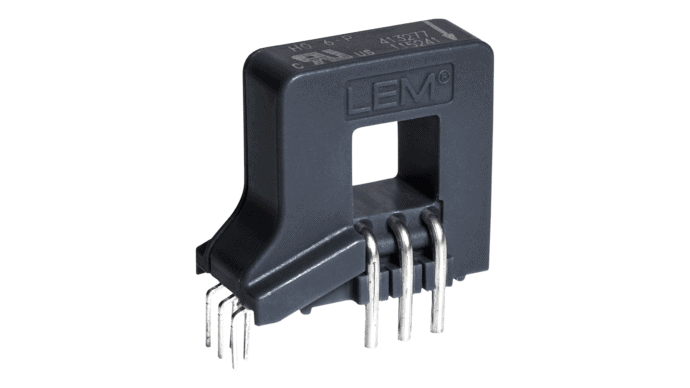

Current transformer
Current transformer 25A / reference IN-OUT / DC, AC, pulse currents
High-performance, low-cost, contactless LEM current transformer PCB PCB mounting with large opening for the primary conductor.
CHF 13.30 excl. VAT, plus shipping costs
Item no:
HO 25-P
In stock: Available to order
Description
- Overcurrent detection at 2.63 x IPN
- Short response time: 3.5 µs
- Reference voltage input and output
- Low offset and gain drift
- Measuring range up to 2.5 x IPN
- Compact design (12 (W) x 24 (L) x 21 (H))
- High accuracy at 25°C: 1% of IPN at 105°C: 4.1% of IPN
- Clearance and creepage distance: 8 mm + CTI 600
- 5 year guarantee
- Manufacturer LEM
Technical data
- Measurement of low DC, AC and pulse currents with galvanic isolation
- Unipolar supply +5Vdc
- Insulation test voltage: up to 4.3KVrms / 50 Hz / 1 min
- Models for PCB assembly
- Large opening: 8 x 8 mm
- Operating temperature: -40°C to +105°C
- Voltage output (0.6 to 0.8 V @ IPN)
- Bandwidth DC... 250 KHz (-3 dB)
Additional information
| Current transformer | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| HO 25-P | PDF(496.05 KB) |
|---|
Downloads
| 3D Step File HO 25-P | Zip file (2.02 MB) |
|---|
