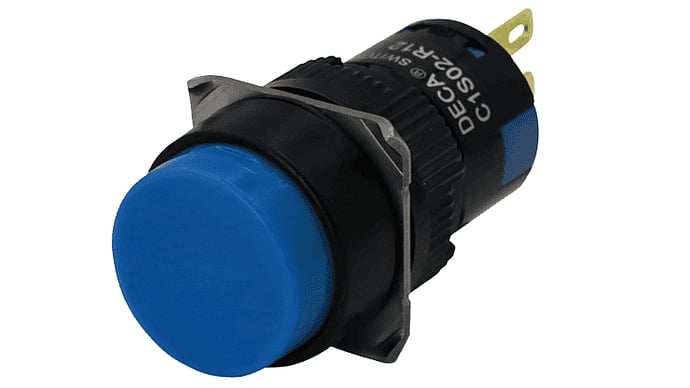

Push-button switch
Pushbutton, blue, 2NC+2NO
CHF 3.50 excl. VAT, plus shipping costs
Item no:
C1S02-R121B-H10
In stock: Available to order
5+ CHF 3.50 CHF 3.30 (5%save)
10+ CHF 3.30 CHF 3.20 (8%save)
20+ CHF 3.20 CHF 3.10 (11%save)
Description
Push-button made of blue plastic.
For switching while actuating.
Connection 2xNC + 2xNO
Technical data
- Connection: soldered
- For installation opening: ø 16mm
- Electrical service life: >50,000 operations
- Mechanical service life: >100,000 operations
- Operating temperature: -25°C to +55°C
- IP65 protected
Additional information
| Push-button switch | ||||||
|---|---|---|---|---|---|---|
|
||||||
| LEDs | ||||||
|
||||||
| Mains cable and accessories | ||||||
|
|
||||||
Data sheets
| Specification C1Sx-R1xxx-x | PDF(1.66 MB) |
|---|
