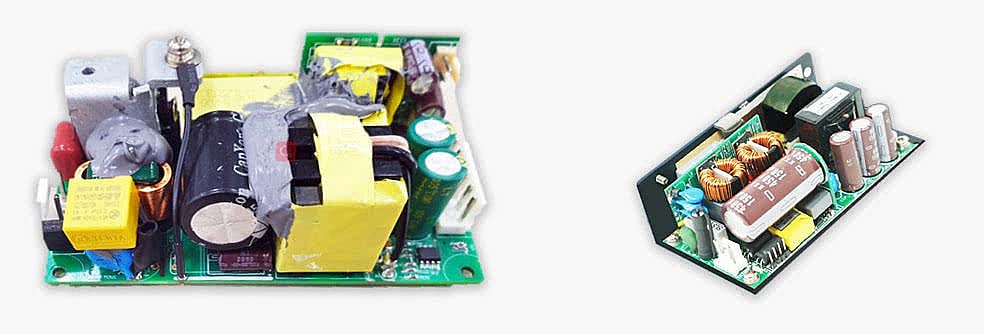

Small open frame power supply unit 2''x 4'', with ITE/medical approval

The NGB150 series from SL Power is a powerful family of next generation AC/DC power supplies for medical and industrial applications with an efficiency of more than 90 %. One of the most important aspects of medical power supplies is safety approval. These models are approved to EN/IEC/UL60601-1, 3rd edition, with insulation levels to the latest EN/IEC/UL62368-1. These models fulfill the 2x MOPP requirements. Furthermore, these products fulfill the EMC requirements according to UL/EN/IEC60601-1-2, 4th edition. The NGB150 models operate with a universal input range of 80V...264Vac over a wide temperature range of -40°C...+85°C and offer full output power up to +50°C and reduced output power up to +80°C. The product family is available in the highest convection power density approx. 50.8 x 101.6mm (2 "x 4"). Standard output voltages range from 12Vdc to 48Vdc with a Uout adjustment range of +/- 10% and optional standby 5Vdc, for both Class I (suffix 'K') and Class II (suffix 'C') input options.

Features NGB150

• 150Watt output power
• UL/CSA/IEC/IEC60601-1, IEC62368-1 approval
• -40°C...+85°C Operating temperature range
• +/- 10% output voltage adjustable
• 5Vdc standby output
• 4 "x 2 "x 1.26" Housing
• <100uA leakage current
• 85V...264Vac Input voltage range
• 3-year guarantee
• SL Power Manufacturer
