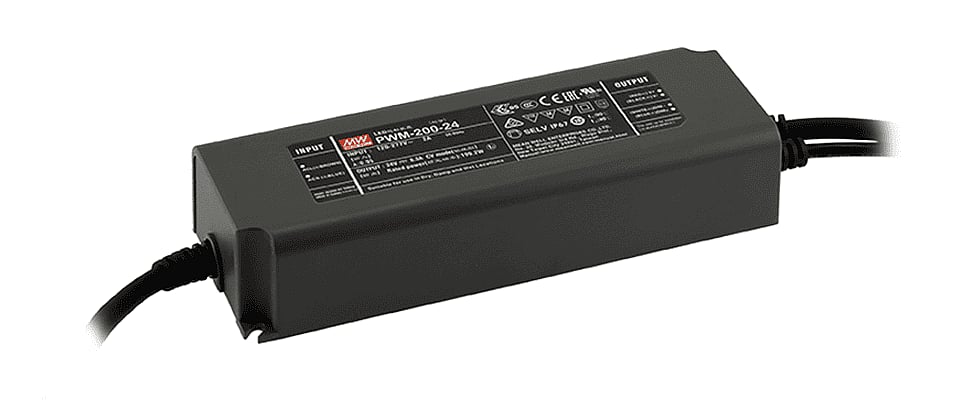

The PWM family of MEAN WELL with PWM output is ideal for dimming LED constant voltage solutions such as LED strips PWM dimming ensures consistent dimming behavior even under different loads. To prevent the risk of flickering, the PWM frequency was set very high at up to 4 kHz.
The DA2 version of the new PWM-200 family enables dimming via an AC push button for the first time, simplifying installation in simpler environments. The LED driver is also available in the "Blank" version with the proven 3in1 dimming function and can be dimmed with 0-10V/1-10V and potentiometer.
Properties
- 200W with PWM output
- PWM frequency 4kHz (Blank) or 2.5kHz (DA2)
- Control
- DA2 type: DALI2 or AC Push
- Blank type: 0/1-10V or resistor
- Dimming range 0.2 to 100%
- Stand-by power consumption <0.5W
- IP67 protected
- Dimensions: 195x68x39.5mm
- 5 year guarantee
Products
-
PWM-200-12
180W LED power supply with PWM output 12V/15A, 3in1 dimmingCHF 92.20Available to order -
PWM-200-12DA2
180W LED power supply unit with PWM output 12V/15A, DALI2, AC PushCHF 101.4050 Available immediately -
PWM-200-24
200W LED power supply with PWM output 24V/8.3A, 3in1 dimmingCHF 92.2021 Available immediately -
PWM-200-24DA2
200W LED power supply unit with PWM output 24V/8.3A, DALI2, AC PushCHF 101.40147 Available immediately -
PWM-200-36
200W LED power supply with PWM output 36V/5.55A, 3in1 dimmingCHF 92.20Available to order -
PWM-200-36DA2
200W LED power supply unit with PWM output 36V/5.55A, DALI2, AC PushCHF 101.40Available to order -
PWM-200-48
200W LED power supply with PWM output 48V/4.17A, 3in1 dimmingCHF 92.20Available to order -
PWM-200-48DA2
200W LED power supply with PWM output 48V/4.17A, DALI2, AC PushCHF 101.40Available to order
