MEAN WELL RSDH-150/300 Series. DC-DC converters with 250 to 1500Vdc input voltage range

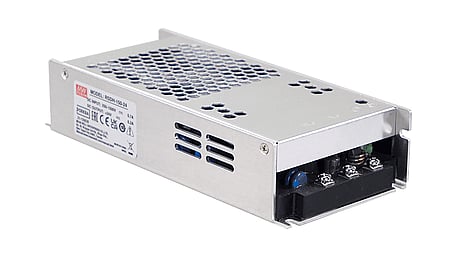

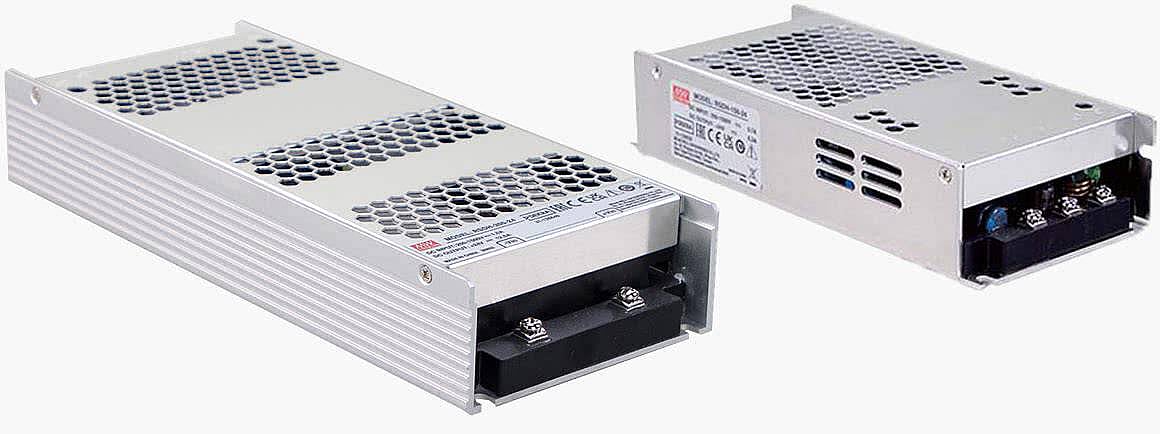

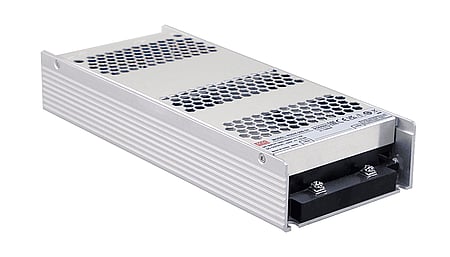

RSDH-150 and RSDH-300 are DC/DC converter series for high voltage applications. Optimized for operation in renewable energies such as solar or wind power plants and energy storage systems, these converters can be used to convert input voltages from 250 to 1500Vdc into isolated output voltages of 12V, 24V, 32V or 48V.

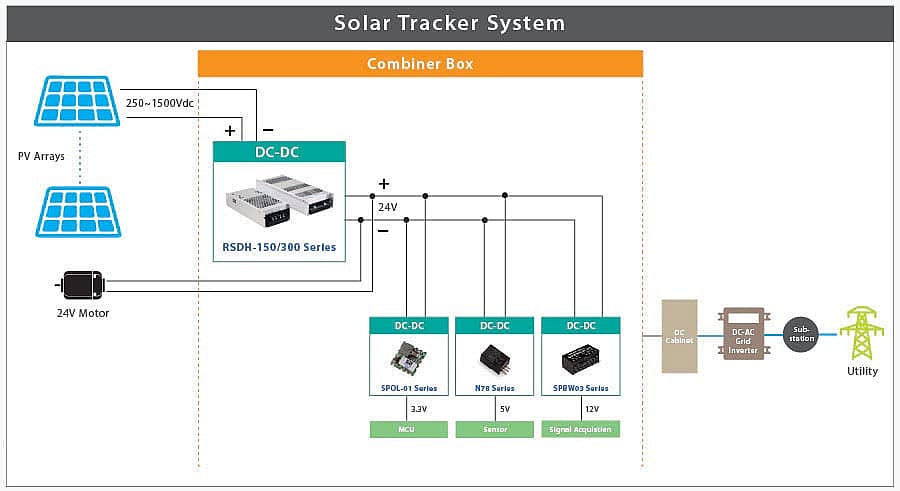

The main features of the RSDH-150/300 series are: 250~1500Vdc ultra-wide input range, fanless design for operation in a wide temperature range of -40～+80°C, 4KVac high isolation level, full input/output protection functions, excellent EMC performance, operation at 5000M altitude and compliance with IEC/EN62109-1 PV safety. These features make the RSDH-150/300 series suitable for PV, energy storage, charging stations and other applications that require conversion from high voltage to low voltage.
