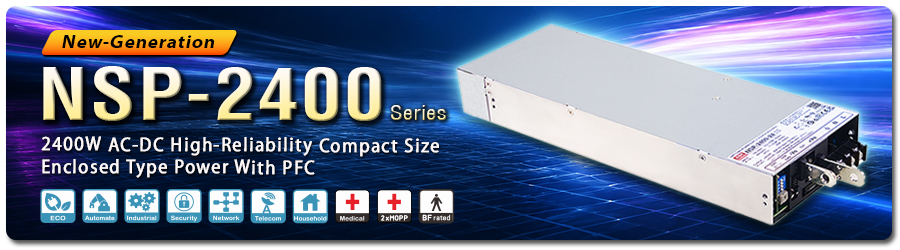

Mean Well NSP-2400 Series – Latest-generation programmable 2,400-watt power supply

The demands placed on modern power supplies are constantly increasing: more power must be made available in ever-smaller spaces. Compact power supplies with high power density are in high demand, particularly in industrial automation, semiconductor manufacturing, medical technology, and renewable energy systems. With the new NSP-2400 series, MEAN WELL is expanding its successful NSP family with a high-performance 2,400-W power supply.

The NSP-2400 combines high power density with extensive features and high reliability. Compared to the previous RSP-2400 series, the unit’s footprint has been reduced by 55%. At the same time, the input voltage range has been expanded to 85–305 VAC. For applications with high short-term power requirements, the power supply also delivers a peak power output of up to 200% of the rated power. This makes it particularly suitable for loads such as motors, pumps, or capacitive loads.

The integrated PV/PC functions allow the output voltage and output current to be flexibly adjusted to the specific application. The output voltage is adjustable from 0 to 120%, and the output current from 0 to 100%. Various safety certifications, as well as compliance with SEMI F47 requirements regarding voltage dips, enable use even in demanding industrial environments. MEAN WELL also offers a 5-year manufacturer’s warranty.

Typical applications for the NSP-2400 include industrial automation, semiconductor equipment, medical devices, laser processing, test and measurement technology, communication systems, and applications in the renewable energy sector. As a result, the new series offers a compact and versatile solution for systems with high power requirements.

Highlights

• Wide input voltage range of 85–305 VAC (can operate at 277 VAC)
• Global certifications for various application areas (ITE IEC 62368-1, Medical IEC 60601-1, Household Appliances IEC 60335-1, Industrial IEC 61558-1 / IEC 61010-1, Power Converters IEC 62477-1, and SEMI F47)
• 200% peak performance
• Programmable output voltage from 0–120% and output current from 0–100%
• Integrated CAN bus interface, optional Modbus
• Wide operating temperature range from –40 to +85 °C (24–60 V models: full-load operation up to +60 °C)
• Integrierter geräuscharmer Lüfter (<46 dB)
• Comprehensive protection features: short circuit, overload, overvoltage, and overtemperature
• Complies with Overvoltage Category III (OVC III)
• Operating altitude up to 5,000 m
• Sehr niedriger Ableitstrom von <500 µA, erfüllt die Anforderungen an 2 × MOPP und ist für medizinische Anwendungen des Typs BF geeignet
• Conformal coating of the printed circuit board for increased durability
• 5-year manufacturer's warranty
