New LED strips of high-end Reel2Reel LED strips

Discover our new constant voltage and constant current high-end reel-to-reel LED strip generation from the Primeflex series by Lumesi with the following highlights:

  • Optimized luminous flux consistency over the entire length thanks to increased copper coating and optimized layout. Longer lengths without luminous flux loss with single-sided feed! With the PF25-M/V140, up to 9.5 m or 6 m 100% consistency without loss!
  • Reel2Reel in the highest quality for professional use, now more affordable than ever!
  • Extremely high efficiency even with a color rendering index of Ra>90 thanks to the use of high-quality, LM80-tested KSF LEDs!

PRIMEFLEX PF25-M/V140 SERIES

constant voltage
PF25 V140
  • 100% constant luminous flux over the entire length up to 9.5 m! With a single power supply thanks to current control IC, optimized layout, and a thicker copper layer. M140 up to 9.5 m, V140 up to 6 m.
  • Very high efficiency with CRI>90 thanks to the KSF 2835 LED
  • 140 LEDs per meter
  • Luminous flux up to 3354 lm/m
  • Top TM-21 L80B10 values: @ Ts. 85°C: > 102kh
  • Available as 14W/m (M version) and 21W/m (V version)
  • Length of the flexible print is 25m without interruption = no solder joints
  • Very high design freedom thanks to 5cm cutting options
  • Multiple copper pads, which make it easier to solder connection cables

PRIMEFLEX PF15-M/H160 SERIES

constant voltage
H160
  • Very high efficiency thanks to the series connection of 8 LEDs and, thanks to the new 2835 KSF LEDs, up to 175lm/W!
  • Up to 3141 lm/m
  • Long range of 6m per feed
  • Available as 12W/m (M version) and 17.3W/m (H version)
  • Top TM-21 L80B10 Value: @ Ts. 85°C: > 102kh
  • Length of the flexible print is 15m without interruption = no solder joints
  • 160 LEDs per meter
  • High design freedom thanks to 5cm cutting options
  • Narrow LED-to-LED spacing (6.25 mm pitch) enables short distance to the diffuser and excellent homogeneity

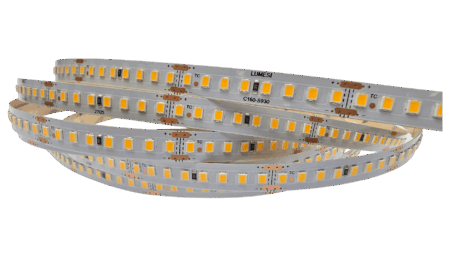

PRIMEFLEX PF15-C160 SERIES

constant current
PF15 C160new
  • Constant current strips with extremely high efficiency at CRI>90 to over 200 lm/W @Tc40°C thanks to the KSF 2835 LED
  • Energy class B
  • Top TM-21 L80B10 values: @ Ts. 85°C: >102kh
  • Only 10mm wide and 5cm cutting options
  • 160 LEDs per meter
  • Example: 4240 lm/m at 4000 K, Tc 40°C, 21 W/m
  • Ideal for applications where high luminous fluxes are required
  • Maximum flexibility in practice. Save production time and reduce your stock levels!
