With the new models FMS-75-500 N-S DALI2 LD and FMS-35-350 N-S DALI2 LD Eaglerise is expanding the FMS series with compact NON-SELV LED power supply units for applications with higher output voltages. The power supply units are DALI-2-certified and also support AC-PUSH-DIM, allowing them to be flexibly integrated into modern lighting control systems.
Features FMS-35-350 N-S DALI2 LD
- Forward voltage range 50 to 220Vdc
- Adjustable output currents 80mA (factory setting) / 100mA / 120mA / 150mA / 200mA / 250mA / 300mA / 350mA
- Dimming range 1 to 100% from 300 to 350mA and minimum dimming level 2.5mA at 80 to 250mA
- Supports DALI Maintenance (Part 251,252,253)
- Suitable for emergency lighting (EOFI level 15%)
- Dimensions 280x30x21mm
- 5 year guarantee
-
FMS-35-350 N-S DALI2 LD
35W LED driver constant current non-SELV 80 to 350mA, 50-200Vdc, DALI2, AC PushCHF 48.30468 Available immediately
-

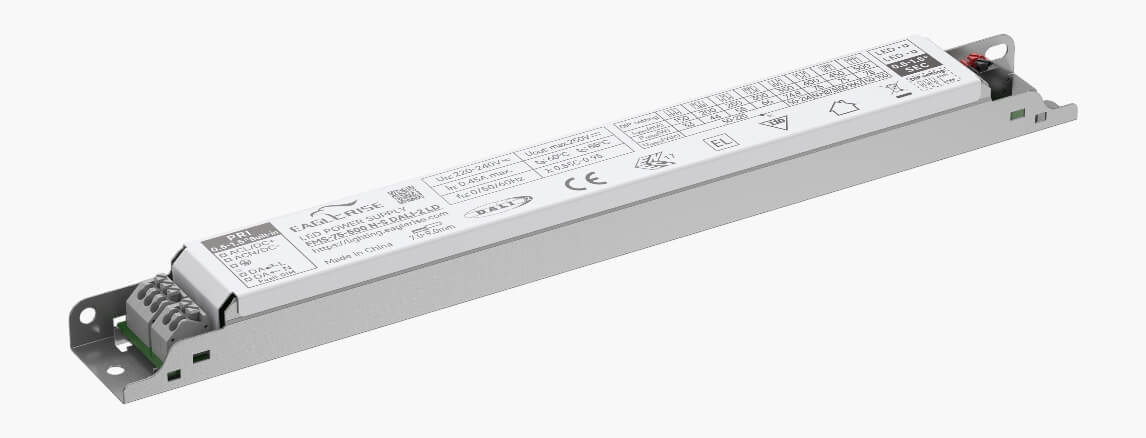

FMS-75-500 N-S DALI-2 LD
75W LED driver constant current non-SELV 150 to 500mA, 50-200Vdc, DALI2, AC PushCHF 49.50453 Available immediately
Features FMS-75-500 N-S DALI-2 LD
- Forward voltage range 50 to 220Vdc
- Adjustable output currents 150mA (factory setting) / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA
- Dimming range 1 to 100% from 300 to 500mA and minimum dimming level 3mA at 150 to 250mA
- Supports DALI Maintenance (Part 251,252,253)
- EOFI Level 15%
- Dimensions 280 x 30 x 21mm (L x W x H)
- 5 year guarantee
