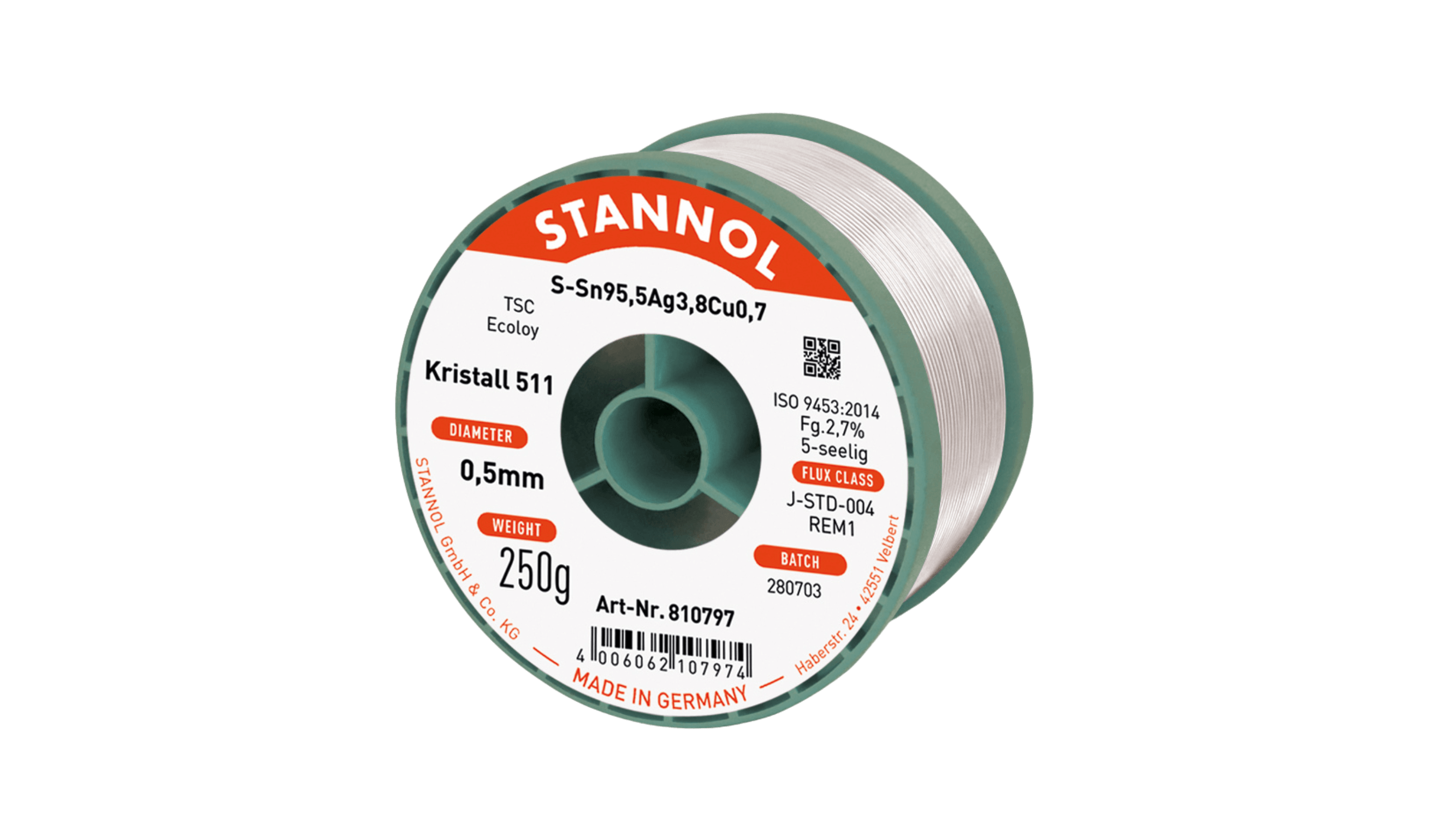

Solder wire crystal 511, Sn95,5Ag3,8Cu0,7 - TSC, RE M1, 0.5mm, 250g
CHF 46.00 excl. VAT, plus shipping costs
Description
Crystal solder wires enable fast soldering on copper and brass as well as on pre-tinned surfaces. The activity of the halogen-activated types on nickel is also good, depending on the oxidation of the nickel layer. The high thermal stability of the crystal fluxes is advantageous when soldering with refractory alloys. The resin and flux systems have been developed to achieve low residue products with reduced activity. This is achieved by partial decomposition and volatilization during the soldering process. Visible smoke may be generated during this process. In any case, the soldering fumes must be removed (extracted) from the operator's working area.
Technical data
- Halogen-free (with crystal 400)
- Fast soldering (several activity levels for all applications)
- good spreading (on copper, brass and nickel)
- Clear residues
- Thermally stable (low splash tendency)
- Mild odor
Areas of application
Soldering iron: The optimum soldering tip temperature and the heat requirement for a manual soldering process depend on the iron design and the soldering task. Unnecessarily high soldering tip temperatures with long soldering contact times should be avoided, as a high soldering tip temperature increases the tendency for the flux to splatter and leads to darker residues. The soldering iron tip should be well tinned. This is possible with Stannol crystal solder wire. Heavily soiled soldering tips should first be cleaned and pre-tinned with Stannol Tippy. Then wipe off excess solder with a clean, damp sponge before re-tinning the soldering iron tip with crystal solder wire.
Additional information
| Wire solders | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
Data sheets
| Technical data sheet_Crystal 511_EN | PDF(884.92 KB) |
|---|---|
| Main catalog_Stannol_EN | PDF(8.18 MB) |
Accessories
-
870052
NC-AA desoldering braid 1.5mm 1.5mCHF 3.30189 Available immediately -
870060
NC-AB desoldering braid 2.2mm (width), 30m (length)CHF 71.5020 Available immediately -
870053
NC-AB desoldering braid 2.2mm 1.5mCHF 3.90392 Available immediately -
870078
NC-BB desoldering braid 2.7mm (width), 30m (length)CHF 73.6012 Available immediately -
870054
NC-BB desoldering braid 2.7mm 1.5mCHF 4.10160 Available immediately -
870051
NC-OO desoldering braid 0.8mm 1.5mCHF 3.7063 Available immediately -
870094
NC-OO desoldering braid 0.8mm (width), 30m (length)CHF 53.909 Available immediately -
0051301799
SD 1000 solder dispenserCHF 70.102 Available immediately -
272018
Tippy Soldering Tip Cleaner Lead FreeCHF 6.50148 Available immediately -
188927
AK-1 Flux 500ml Bidon120 Available immediately -
165105
500-6B Flux pen 10mlCHF 12.5015 Available immediately
Similar products
-
535765

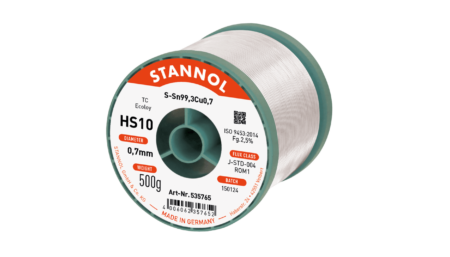

Solder wire HS10, Sn99.3Cu0.7 - TC, RO M1, 0.7mm, 500gCHF 42.0013 Available immediately -
520750

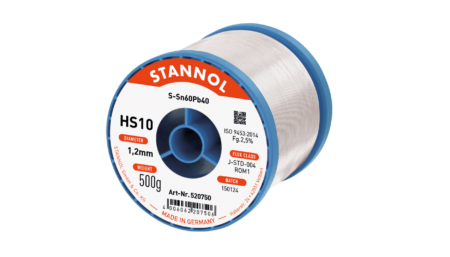

Solder wire HS10, Sn60Pb40, RO M1, 1.2mm, 500gCHF 25.7024 Available immediately -
810653

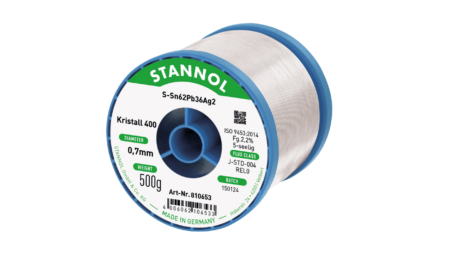

Solder wire Kristall 400, Sn62Pb36Ag2, RE L0, 0.7mm, 500gCHF 50.10Available to order -
519244
Solder wire HS10, Sn60Pb40, RO M1, 0.7mm, 500gCHF 28.5079 Available immediately -
520452
Solder wire HS10, Sn60Pb40, RO M1, 1mm, 500gCHF 26.0073 Available immediately -
518638

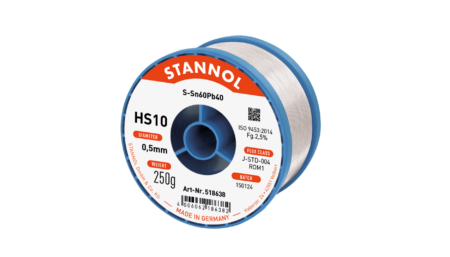

Solder wire HS10, Sn60Pb40, RO M1, 0.5mm, 250gCHF 18.4014 Available immediately -
810659

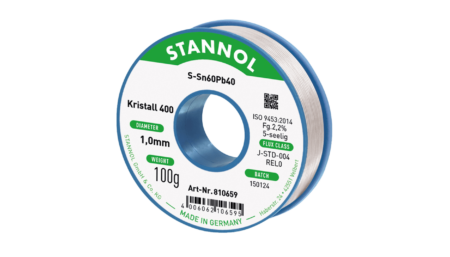

Solder wire crystal 400, Sn60Pb40, RE L0, 1mm, 100gCHF 6.4015 Available immediately -
810652
Solder wire crystal 400, Sn62Pb36Ag2, RE L0, 0.5mm, 250gCHF 29.20Available to order -
810580

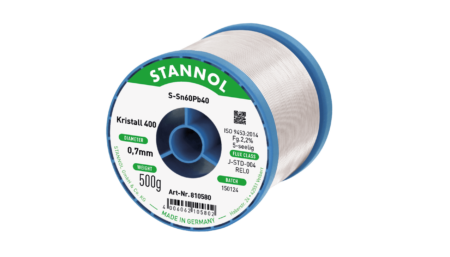

Solder wire crystal 400, Sn60Pb40, RE L0, 0.7mm, 500gCHF 28.50Available to order -
810654

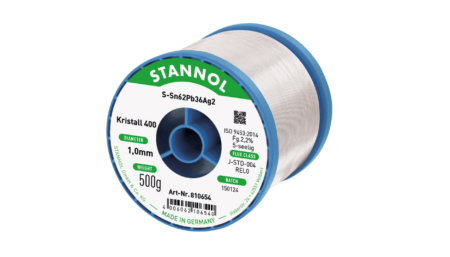

Solder wire Kristall 400, Sn62Pb36Ag2, RE L0, 1mm, 500gCHF 47.80Available to order
