Soldering tools

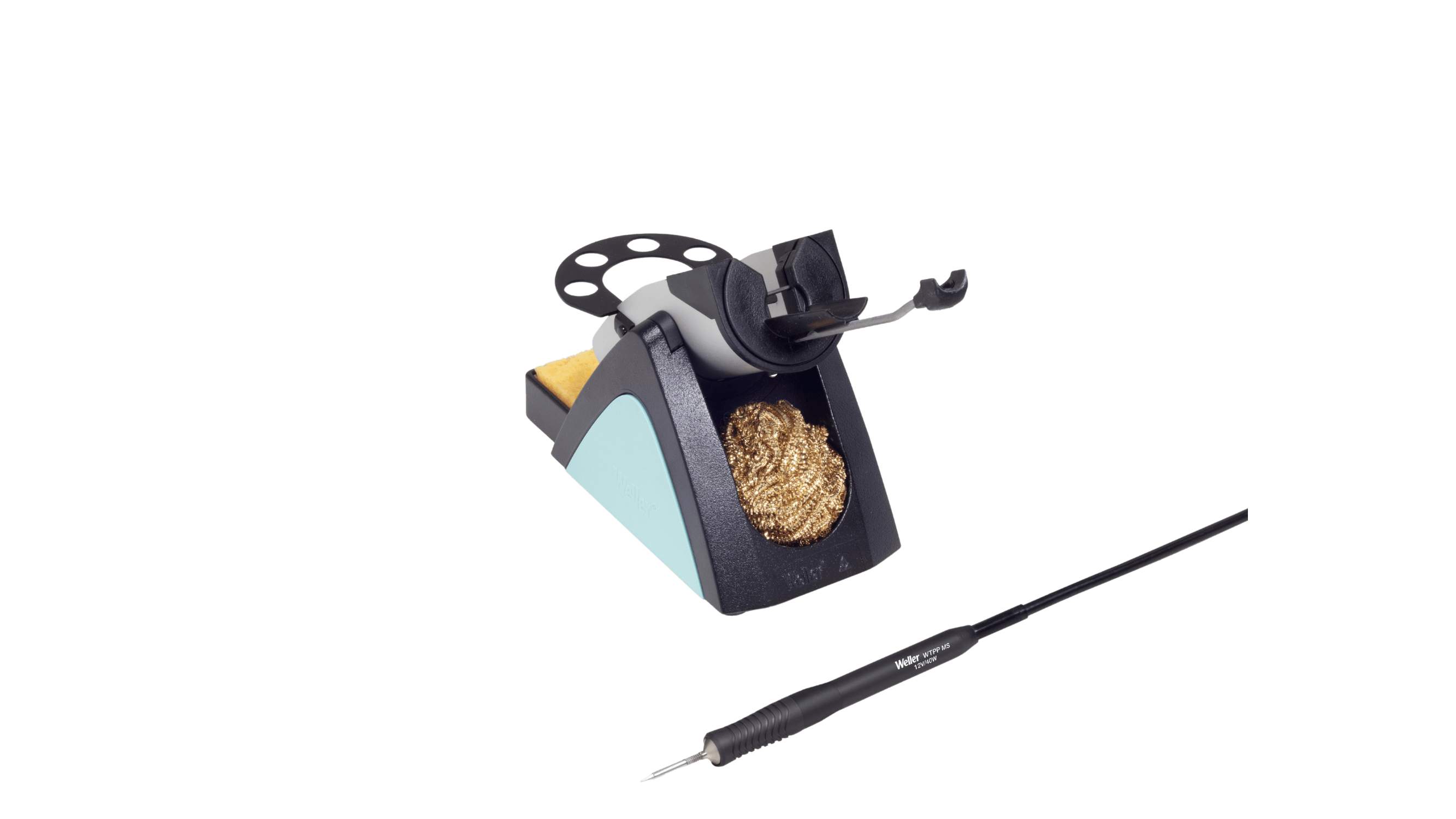

WTPP MS Set, Nano/Pico soldering iron, soldering tip with safety rest WSR 205
CHF 259.00 excl. VAT, plus shipping costs
Item no:
0052924299
Stock: Available to order
Description
- Nano/pico soldering iron with RTP MS tip - for maximum precision
- Ideal for the smallest soldering jobs: Fine, slim boomerang handle for precise handling and ergonomic comfort. Especially for nano and pico soldering applications under the microscope.
- Active soldering tip technology: RTP tips with integrated sensor for maximum heat transfer. Extremely short heat-up time of just 3 seconds. Very fast reaction and recovery times. Soldering tips can be ordered separately (RTP series).
- Quick change, minimum downtime: Patented cartridge system (Active Tip) allows tool-free tip change even when hot. Reduces downtime and improves efficiency.
- Safe & standard-compliant: RTM and RTP tips meet IPC standards, MS versions also conform to MIL-SPEC. Optimum protection for components and PCBs.
- Further features: Standby function to save energy. Handpiece and tip can be ordered separately. Compatible with the entire RT soldering tip family.
Tips/tools
- tips: TO THE MATCHING TIPS
- Supply unit: WT1M, WT2M, WR3M
Scope of delivery

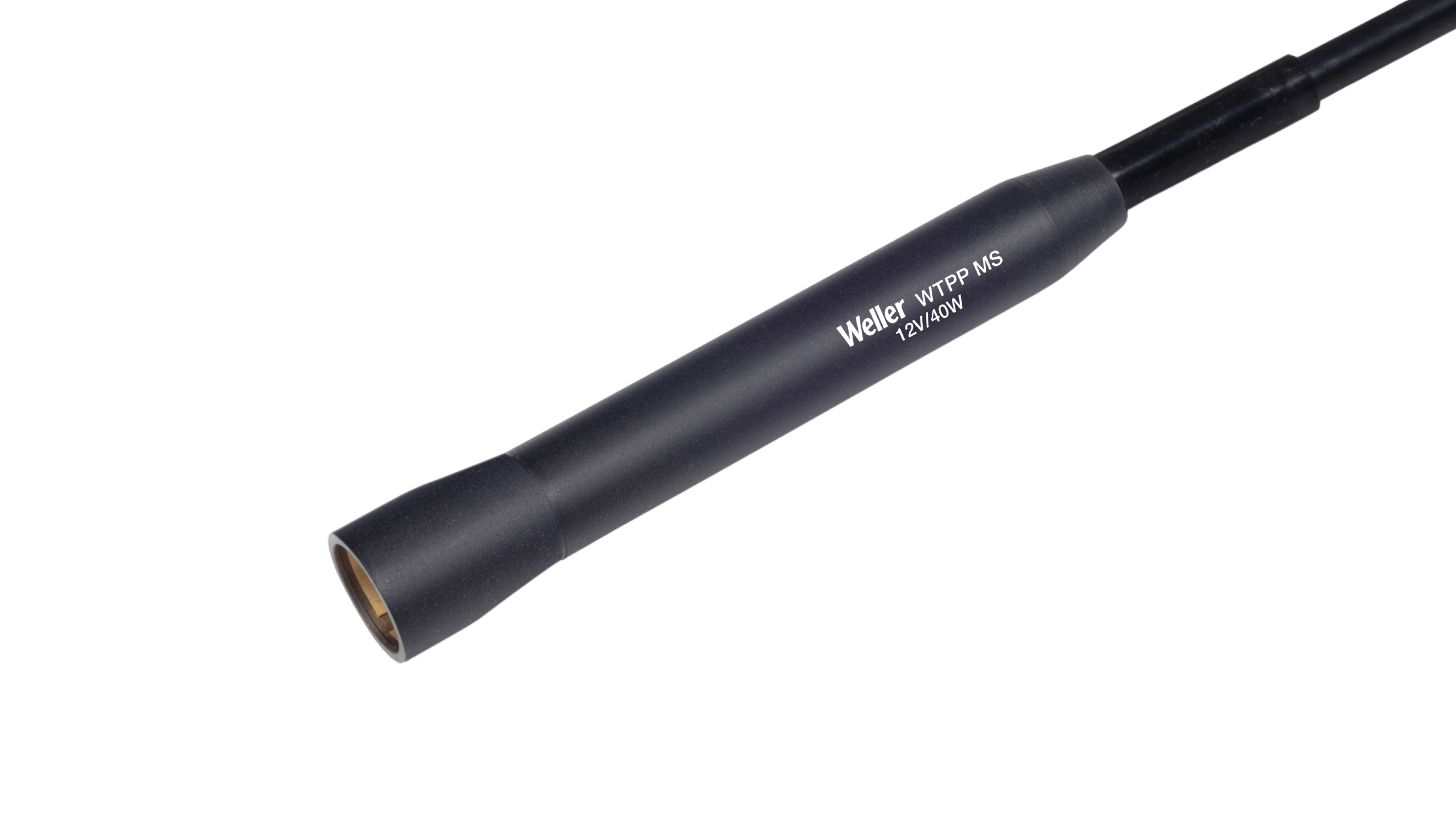

- WTPP MSNano/Pico soldering iron 40 W, 12 V (handpiece without soldering tip)

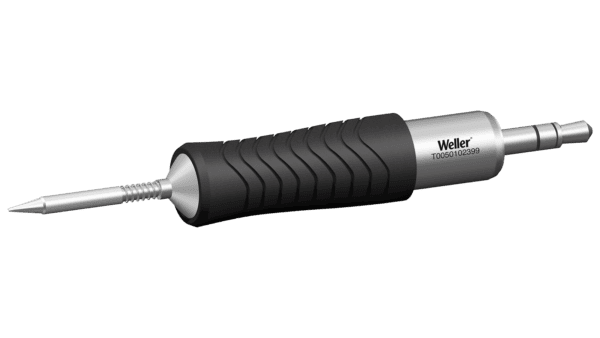

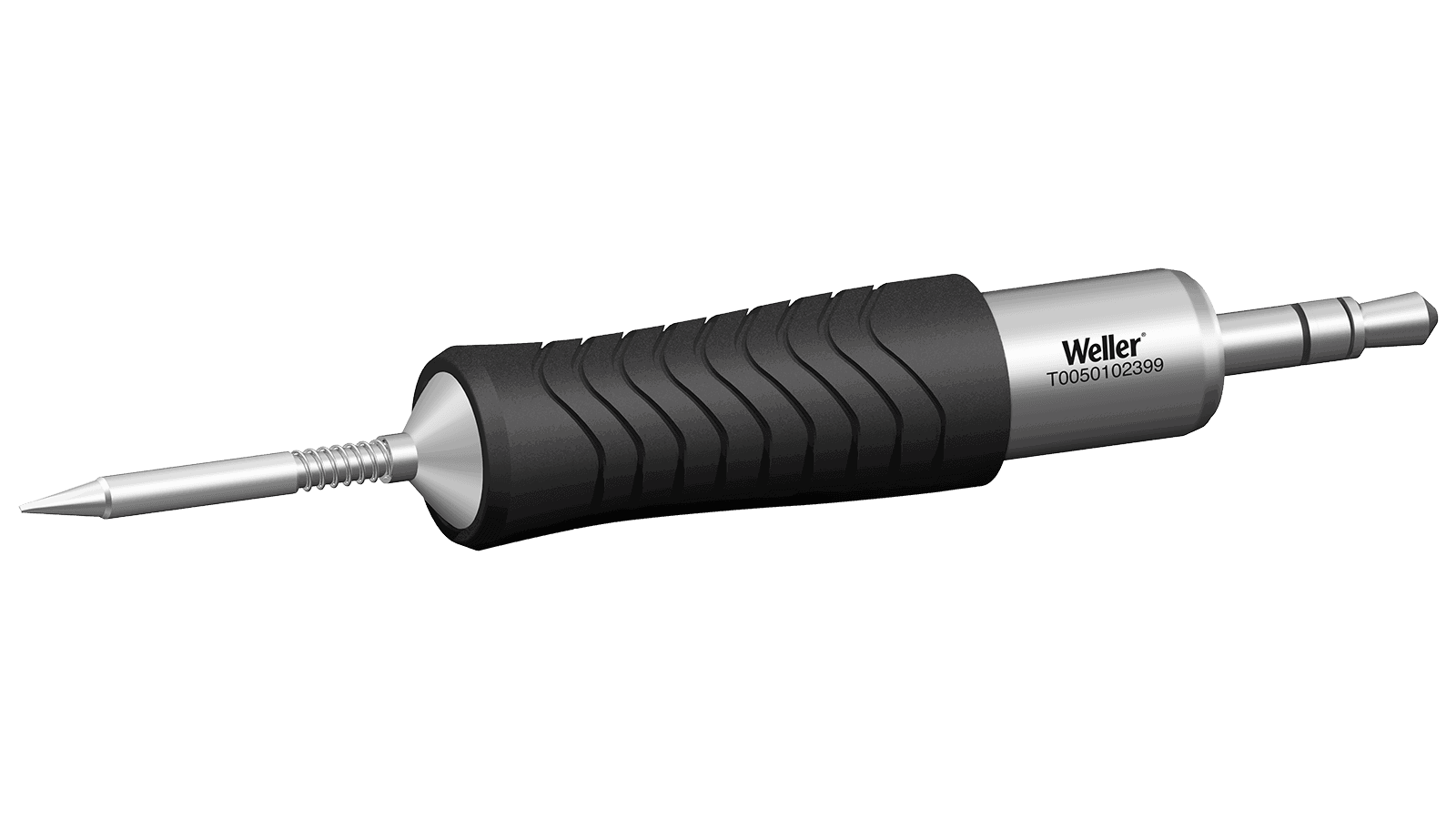

- RTP 004 S MSRT Pico soldering tip, chisel shape Ø 0.4 × 0.2 mm, MIL-SPEC

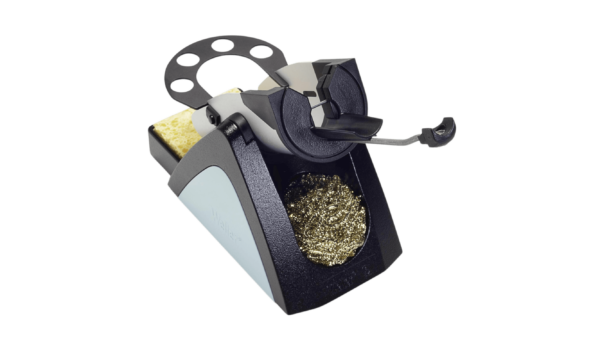

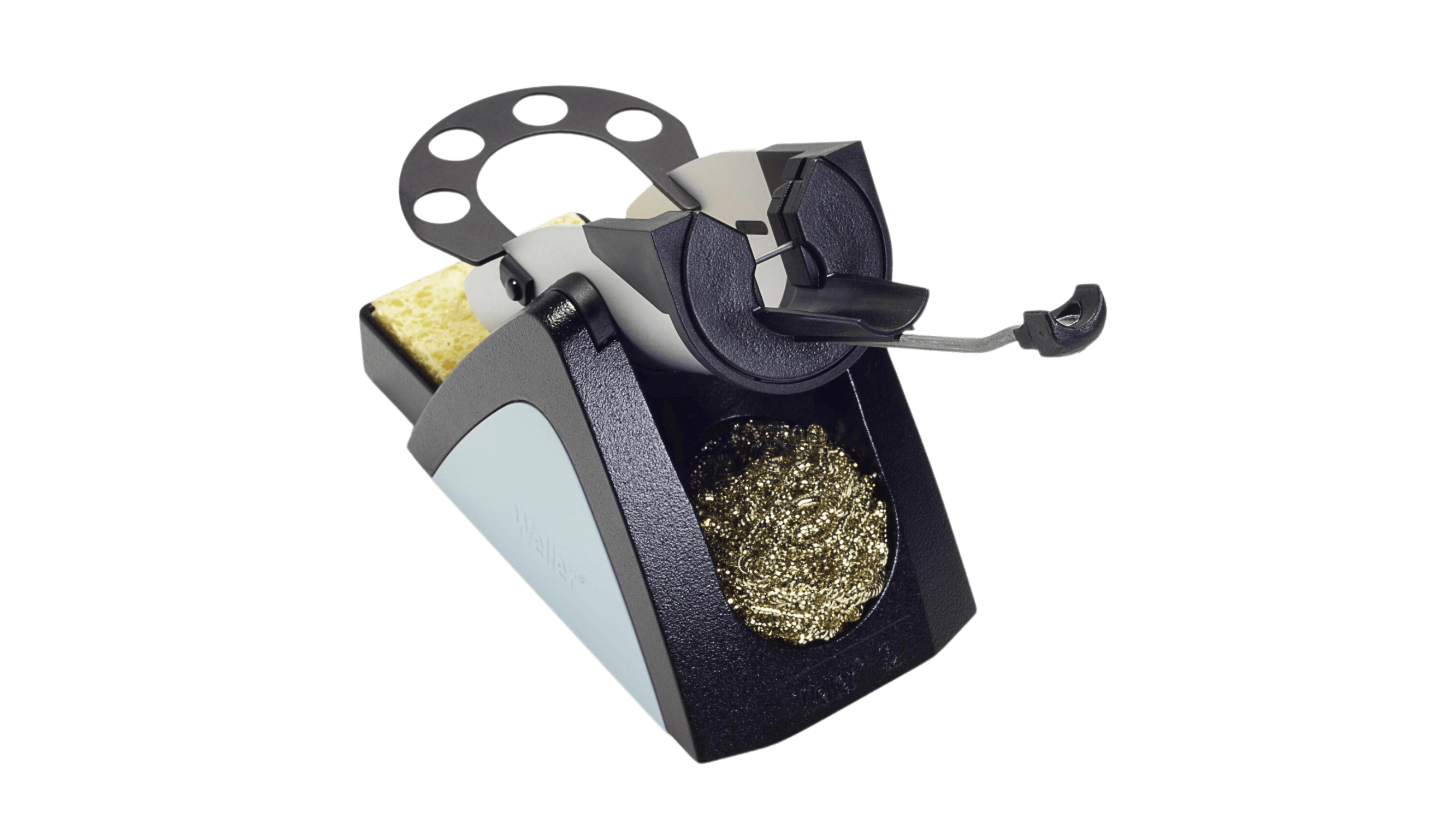

- WSR 205Safety shelf
Additional information
| Soldering tools | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
Data sheets
| TDS | PDF(111.52 KB) |
|---|
Accessories
-
0050101399
RTP 001 C MSCHF 41.80Available to order -
0050101799
RTP 001 C X MSCHF 41.80Available to order -
0050101599
RTP 002 C MSCHF 41.80Available to order -
0050101899
RTP 002 C X MSCHF 41.801 Available immediately -
0050102199
RTP 002 S MSCHF 41.80Available to order -
0050101999
RTP 004 B MSCHF 41.80Available to order -
0050101699
RTP 004 C MSCHF 41.80Available to order -
0050102399
RTP 004 S MSCHF 41.801 Available immediately -
0050102499
RTP 008 S MSCHF 41.801 Available immediately -
0050102799
RTP 010 K MSCHF 41.80Available to order -
0050102699
RTP 013 S MSCHF 41.802 Available immediately -
0051384199
Spiral wool (brass, 2 pcs)CHF 6.90229 Available immediately -
0051303199
Tip activator lead-freeCHF 11.30226 Available immediately -
WATC100F
WATC100F - Automatic tip cleaner with fiber brushesInstead ofCHF 412.00CHF 329.602 Available immediately -
WATC100M
WATC100M - Automatic tip cleaner with metal brushesInstead ofCHF 412.00CHF 329.601 Available immediately -
0053443399
WT 2M Supply unit 230VCHF 479.0024 Available immediately -
0053447699
WT1M, 1-channel supply unit, 95 W, 230 VCHF 349.00Available to order
