Mini torque screwdriver 0.05-0.6 Nm with adapter
CHF 92.90 excl. VAT, plus shipping costs
Description
The torque screwdriver has a 1/4 inch (6.3 mm) hexagon socket bit holder with a clamping ball. The adjustable torque of 0.05 to 0.6 Nm can be set to the desired value using a knurled screw, tolerance (+/-6%). The set value can then be locked. The torque screwdriver has an overall length of 105 mm. Useful accessories include an extension (110 mm) and a bit adapter from 1/4 inch (6.3 mm) mm to 4 mm (5/32 inch) bits.
Technical data
- See technical description for manufacturer recommendations
- Torque receptacle 1/4 inch (6.35 mm)
0.05-0.6 Nm (5-60 cNm ) Tolerance (+/-6%) - Mounting shank length 15 mm, Ø 10 mm
- Torque easily adjustable with a knurled screw, lock function and click sound
- A 1/4 inch to 4 mm (5/32 inch) bit adapter is supplied
- PERFECTLY MATCHES our precision mechanic bit set article 6-340-3
- Material Quality steel and aluminum
- Supplied in sturdy plastic Quadrobox
- Total length 100 mm
- Weight 111 g
Scope of delivery
- 4-563-100 Mini torque screwdriver 0.05-0.6Nm (5-60cNm ) 6-kt 1/4 inch
- 4-564 Bit adapter 1/4 inch, 4mm bits, length 42.5mm
Additional information
| Torque screwdriver | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||
| LEDs | ||||||||||
|
|
||||||||||
| More | ||||||||||
|
||||||||||
Data sheets
| TDS-EN | PDF(3.15 MB) |
|---|---|
| TDS-EN | PDF(3.15 MB) |
Similar products
-

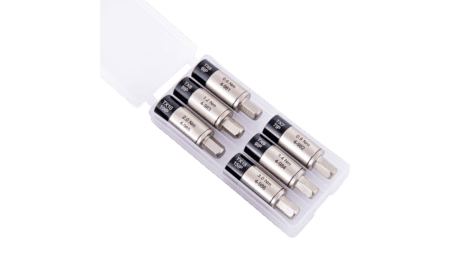

4-980-G
