Dosing systems
DX-250 - Digital dosing system, 0 - 6.9 bar
CHF 458.00 excl. VAT, plus shipping costs
Item no:
DX-250
Stock:6 Available immediately
Description

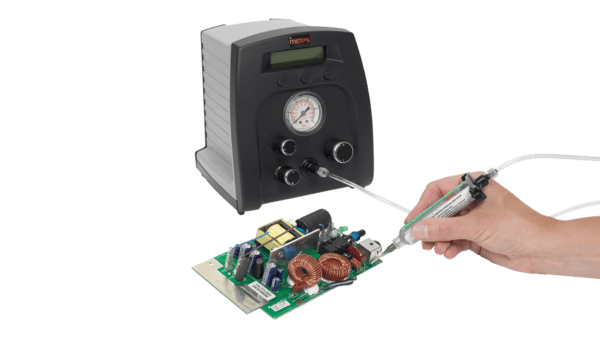

The DX250 series controllers are economical, highly precise and repeatable. They are equipped with a digital timer and a continuously adjustable retention vacuum to prevent dripping of low-viscosity media.
The dosing system is available in two versions:
- With a working pressure of 0 - 6.9 bar for common applications (DX-250)
- As well as a working pressure of 0 - 1 bar for low-viscosity media (DX-255)
Technical data
- Input voltage: 100 - 230 VAC, 50/60 Hz
- Working pressure: DX-250 - 0 - 6.9 bar
- Max. Cycle rate: 600 cycles/minute
- Time range: 0.020 - 60 seconds
- Control tolerances: +/- 0.001 %
- Retention vacuum control: infinitely adjustable
- 2 working modes: Timer and cleaning mode
- Dosing profile memory: Not available
- Control interface: Start by voltage or normally open contact
- Certification: CE, TÜV-GS, NRTL
- Size (W x D x H): 152 x 165 x 178 mm
- Weight: 1.2 kg

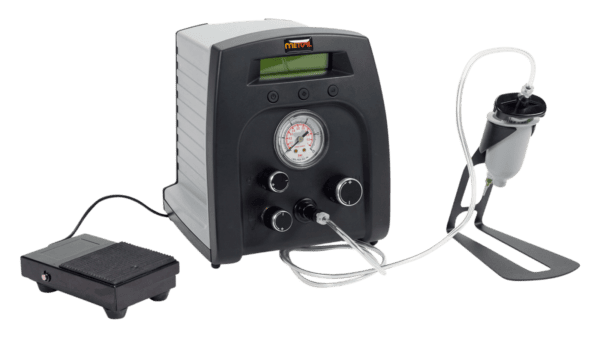

Scope of delivery
- System
- Universal power supply unit
- Foot switch
- Storage stand
- Compressed air hose
- Cartridge (10 cc) with cartridge adapter
- Dosing needle kit
Additional information
| Dosing systems | ||||
|---|---|---|---|---|
|
||||
| LEDs | ||||
|
|
||||
Data sheets
| TDS | PDF(192.86 KB) |
|---|
