Dosing systems

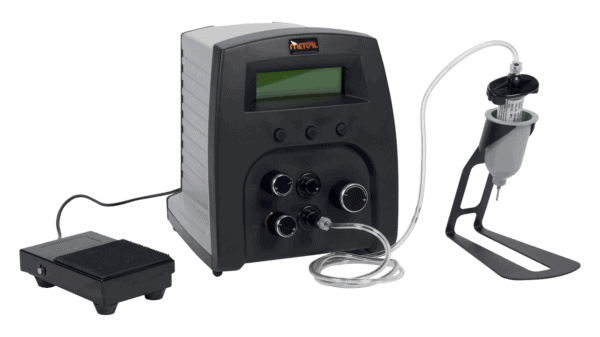

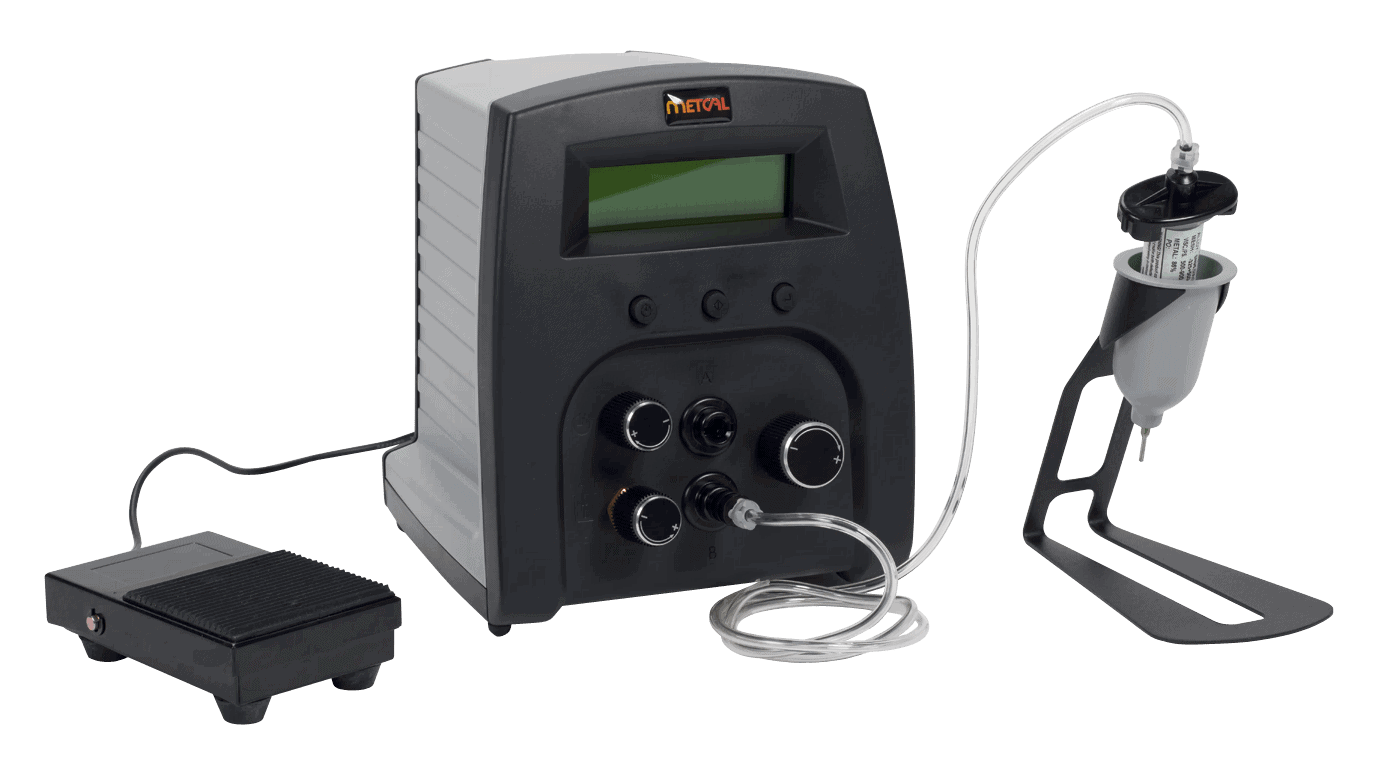

DX-350 - Digital dosing system, 0 - 6.9 bar
CHF 751.00 excl. VAT, plus shipping costs
Item no:
DX-350
Stock:1 Available immediately
Description
The DX350 series dispensing system is fully microprocessor-controlled. The intuitively operated DX350 dosing system applies media with low, medium and high viscosity precisely and with repeatable accuracy. This applies equally to line and spot dispensing.
The infinitely variable retention vacuum prevents low viscosity media from dripping.
Technical data
- Compact and lightweight
- 10 different dosing programs and 4 operating modes programmable
- Digital timer, output of pressure and vacuum measurements
- High repeat accuracy for line or spot dosing
- The adjustable retention vacuum prevents the medium from dripping between dosing cycles
- Available for 2 different Working pressure ranges:
0 - 6.9 bar for general dosing applications (DX-350) and 0 - 1 bar for low-viscosity media (DX-355)
Scope of delivery:
- Power supply unit, foot switch, storage stand,
- Compressed air hose, dosing needle kit
- and cartridge (10 cc) with cartridge adapter
- l I/O interface for robot control
Additional information
| Dosing systems | ||||
|---|---|---|---|---|
|
||||
| LEDs | ||||
|
|
||||
Data sheets
| TDS | PDF(192.86 KB) |
|---|
