Enclosed power supplies
750W Power supply 24V/31.3A
CHF 178.30 excl. VAT, plus shipping costs
Item no:
UHP-750-24
Stock: Available to order
Packaging ex works:
10 piece
Estimated delivery time:
2 weeks
5+ CHF 178.30 CHF 169.90 (4%save)
10+ CHF 169.90 CHF 162.40 (8%save)
20+ CHF 162.40 CHF 157.70 (11%save)
Description

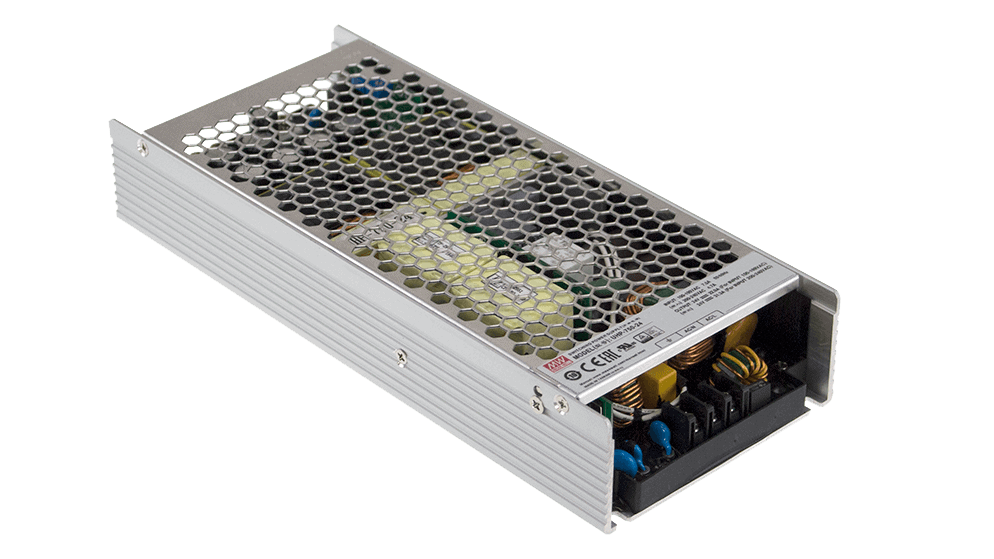

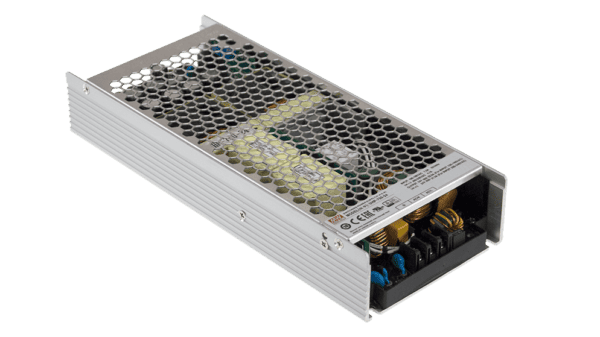

The UHP-750-24 is a slim, fanless power supply unit in a housing with a height of just 41 mm. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- DC OK Relay contact
- Full load operation with conduction cooling (without fan)
- Operating temperature range from -30°C to +70°C
- Holds surge voltages up to 300Vac for up to 5 seconds
- Approved for operation up to 5000 meters altitude
- Dimensions 237 x 100 x 41mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
| More | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
Data sheets
| Data sheet UHP-750 | PDF(1.18 MB) |
|---|---|
| Test Report | PDF(418.74 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration UHP-750 | PDF(74.01 KB) |
