2500W Power supply 48V/52.1A
CHF 541.90 excl. VAT, plus shipping costs
Description

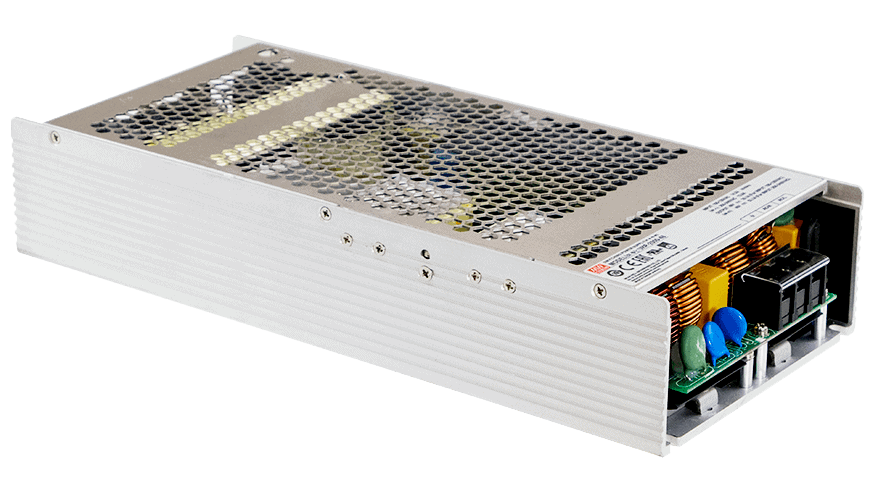

UHP-2500-48 is a compact, fanless power supply unit in a housing. Thanks to its industrial and household approvals, this high-quality power supply unit can be used in a wide range of applications such as industrial automation, household appliances, LED displays and much more.
Technical data
- Input voltage 90 to 264Vac
- High efficiency up to 96
- DC OK Relay contact
- Remote ON/OFF
- 2000W with conduction cooling (without fan)
- Operating temperature range from -30°C to +70°C
- Approved for operation up to 5000 meters altitude
- CANbus, PMbus optionally available
- Dimensions 310 x 140 x 60mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet UHP-2500 | PDF(644.93 KB) |
|---|---|
| Test Report | PDF(571.76 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration UHP-2500 | PDF(74.37 KB) |
Downloads
| 3D data UHP-2500 | Zip file (2 MB) |
|---|
Accessories
-

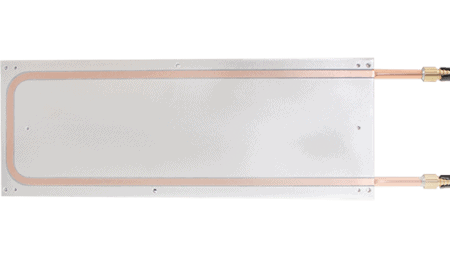

WHS-656
Water cooling plate for PHP-3500 / UHP-2500CHF 153.70Available to order
Similar products
-
RSP-3000-48
3000W Power supply 48V/62.5ACHF 533.20Available to order -
PHP-3500-48
3500W Power supply 48V/73ACHF 961.40Available to order -
CPS-EX3000.048
3000W Power supply 48V/62.4ACHF 1'778.00Available to order -
LCM3000W-T
3000W medical power supply 48Vdc/62.5ACHF 608.60Available to order -
RSP-2400-48
2400W Power supply 48V/50ACHF 465.00Available to order
