Enclosed power supplies
1500W Power supply 380V/3.95A
CHF 367.10 excl. VAT, plus shipping costs
Item no:
UHP-1500-380
Stock: Available to order
Packaging ex works:
6 piece
Estimated delivery time:
2 weeks
5+ CHF 367.10 CHF 349.70 (4%save)
10+ CHF 349.70 CHF 334.30 (8%save)
20+ CHF 334.30 CHF 324.60 (11%save)
Description

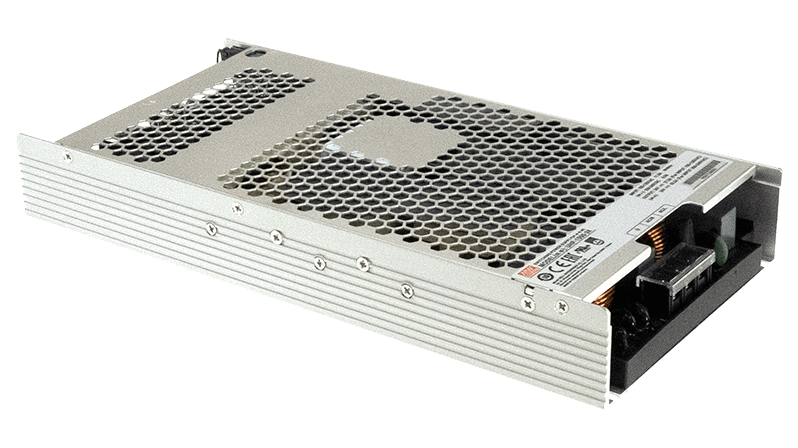

The UHP-1500-380 is a compact, fanless power supply unit in a housing with a height of just 41 mm and a high output voltage.
Technical data
- Input voltage 90 to 264Vac
- High efficiency up to 96
- DC OK signal
- Remote ON/OFF
- Programmable voltage from 50 to 120%
- Programmable current from 20 to 100%
- Full load operation with conduction cooling (without fan)
- Operating temperature range from -30°C to +70°C
- Approved for operation up to 5000 meters altitude
- Dimensions 290 x 140 x 41mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet UHP-1500-HV | PDF(1.19 MB) |
|---|---|
| Test Report | PDF(679.86 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration UHP-1500-HV | PDF(74.44 KB) |
Downloads
| 3D Step File UHP-1500-HV | Zip file (1.77 MB) |
|---|
Accessories
-
F12S1-2214GFS
Illuminated Pushbutton switch with power imprint, greenCHF 12.00Available to order
Similar products
-
PHP-3500-380
3500W Power supply 380V/9.2ACHF 961.40Available to order -

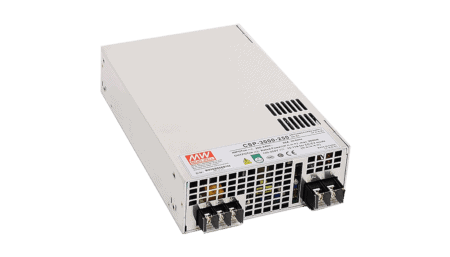

CSP-3000-400
3000W Power supply 400V/7.5ACHF 391.601 Available immediately -

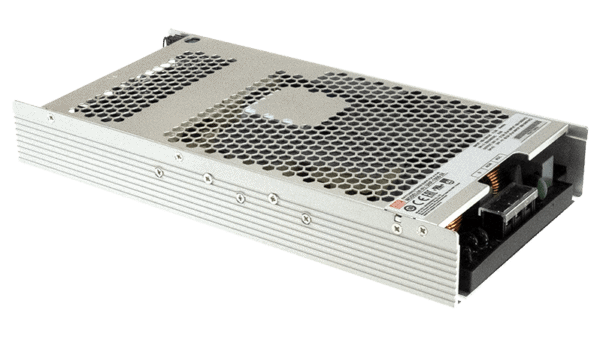

UHP-1500-380E
