Enclosed power supplies
10080W 3-phase power supply unit 48V/210A
CHF 2'852.80 excl. VAT, plus shipping costs
Item no:
RST-10000-48
Stock: Available to order
Estimated delivery time:
2 weeks
5+ CHF 2'852.80 CHF 2'717.60 (4%save)
10+ CHF 2'717.60 CHF 2'597.60 (8%save)
20+ CHF 2'597.60 CHF 2'522.50 (11%save)
Description

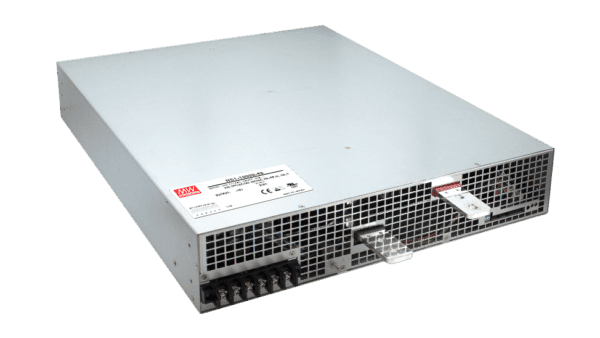

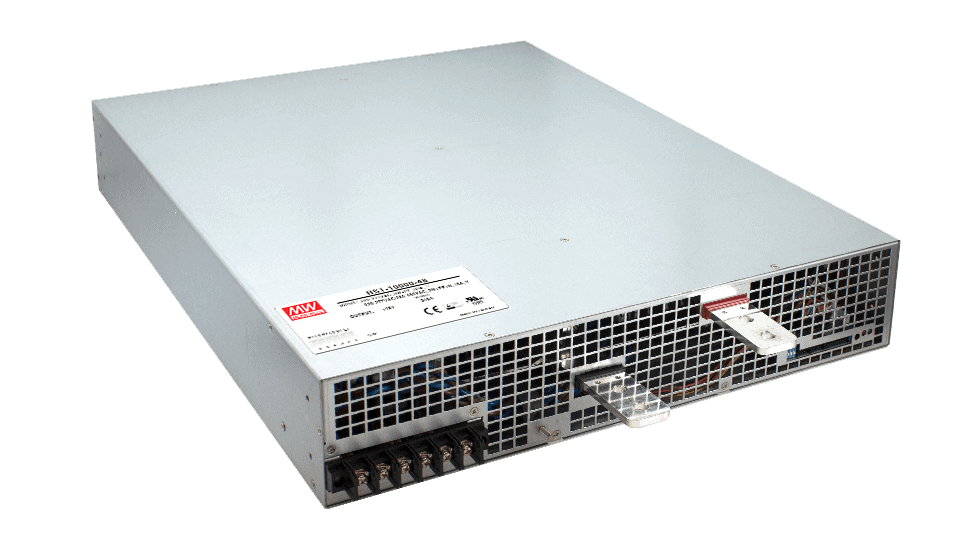

RST-10000-48 is a 10kW power supply unit with 3-phase input.
Technical data
- Three-phase input voltage range 196 to 305Vac (3-wire / delta connection) or 340 to 530Vac (4-wire / star connection)
- With active PFC
- Remote Sense and Remote On/Off functions integrated
- Auxiliary circuit 12V/0.1A
- Output voltage can be trimmed between 20 - 120% using an external control signal
- Output current can be trimmed between 20 - 100% using an external control signal
- Current sharing with up to 2 units up to 20kW
- Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
- Air cooling with integrated, speed-controlled DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 540 x 424 x 83.5mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet RST-10000 | PDF(595.84 KB) |
|---|---|
| Test Report | PDF(491.54 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration RST-10000 | PDF(74.39 KB) |
Downloads
| 3D data RST-10000 | Zip file (1.41 MB) |
|---|
