Enclosed power supplies
1500W Power supply 12V/125A
CHF 367.10 excl. VAT, plus shipping costs
Item no:
NSP-1600-12
Stock: Available to order
Packaging ex works:
6 piece
Estimated delivery time:
2 weeks
5+ CHF 367.10 CHF 349.70 (4%save)
10+ CHF 349.70 CHF 334.30 (8%save)
20+ CHF 334.30 CHF 324.60 (11%save)
Description

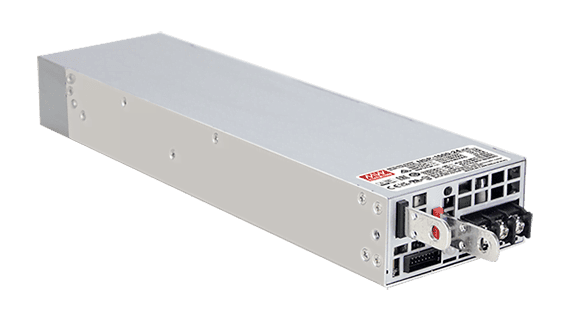

NSP-1600-12 is an industrial AC/DC power supply unit with an excellent price/performance ratio. Cooling is controlled by a temperature-controlled fan.
Technical data
- Input voltage 90 to 264Vac
- with active PFC
- Remote Sense and Remote On/Off functions integrated
- 12V/0.8A auxiliary output
- Output voltage can be trimmed between 40 - 125% using an external control signal (60 - 125% for the NSP-1600-12)
- DC OK signal and overtemperature alarm signal (OTP)

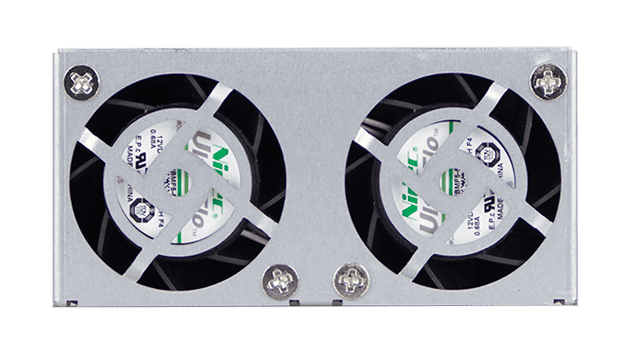

- Air cooling with temperature-controlled DC fan
- Operating temperature range from -30°C to +70°C (note derating)
- Dimensions 300 x 85 x 41mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
Data sheets
| Data sheet NSP-1600 | PDF(890.58 KB) |
|---|---|
| Test Report NSP-1600-12 | PDF(478.56 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration NSP-1600 | PDF(74.38 KB) |
Downloads
| 3D Step File NSP-1600 | Zip file (427.12 KB) |
|---|
Accessories
-
MHS013A
Mounting foot NSP-1600/NSP-3200CHF 0.60Available to order -

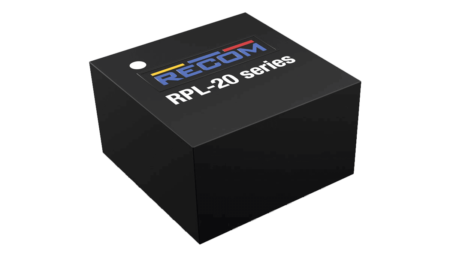

RPL-20-CT
20A DC/DC converter, input 4...16V, output 0.6...5.5V/20A, LGA-MCHF 12.45Available to order -
R-78K5.0-1.0
1A switching regulator, input 6.5...36V output 5V/1000mA, SIP3CHF 2.9039 Available immediately -

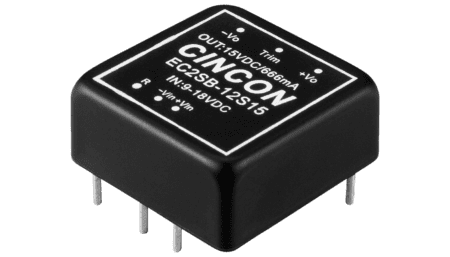

EC2SB-12S12
10W DC/DC converter, input 9...18V, output 12V/0.833ACHF 27.60Available to order -
RPM5.0-2.0-CT
10W DC/DC converter, input 3...17V, output 0.9...6.0V/2000mA, LGACHF 4.7530 Available immediately -

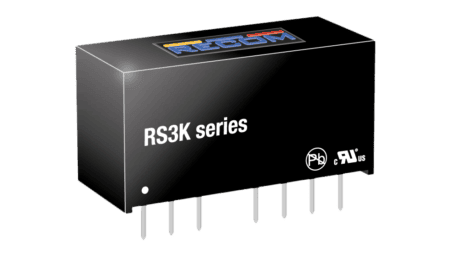

RS3K-2424SZ/H3
