Enclosed power supplies
100W Power supply 36V/2.8A
CHF 14.60 excl. VAT, plus shipping costs
Item no:
LRS-100-36
Stock: Available to order
Packaging ex works:
40 piece
Estimated delivery time:
1-2 weeks
5+ CHF 14.60 CHF 13.80 (5%save)
10+ CHF 13.80 CHF 13.30 (8%save)
20+ CHF 13.30 CHF 12.80 (12%save)
Description

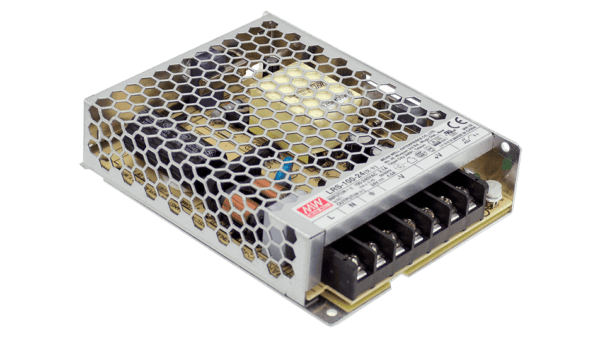

LRS-100-36 is a power supply unit in a perforated metal housing with a low height of only 30mm.
Technical data
- Input voltage 85 to 264Vac
- Power consumption at no load <0.3W
- Metal housing with screw terminals
- Complies with household appliance standards IEC/EN60335-1 and IEC/EN61558-1,-2-16
- Designed for operations up to max. 5000m.a.s.l. operating altitude
- Operating temperature range from -30°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Vibration test up to 5G
- Dimensions 129 x 97 x 30mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet LRS-100 | PDF(710.1 KB) |
|---|---|
| Test Report | PDF(353.09 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration LRS-100 | PDF(73.58 KB) |
Downloads
| 3D data LRS-100 | Zip file (676.35 KB) |
|---|
Accessories
-
TBC-07
Cover for 7-pin connection terminal MWCHF 0.60682 Available immediately
