Enclosed power supplies
3192W Power supply 24V/133A
CHF 657.30 excl. VAT, plus shipping costs
Item no:
DPU-3200-24
Stock: Available to order
Packaging ex works:
4 piece
Estimated delivery time:
2 weeks
5+ CHF 657.30 CHF 626.20 (4%save)
10+ CHF 626.20 CHF 598.50 (8%save)
20+ CHF 598.50 CHF 581.20 (11%save)
Description

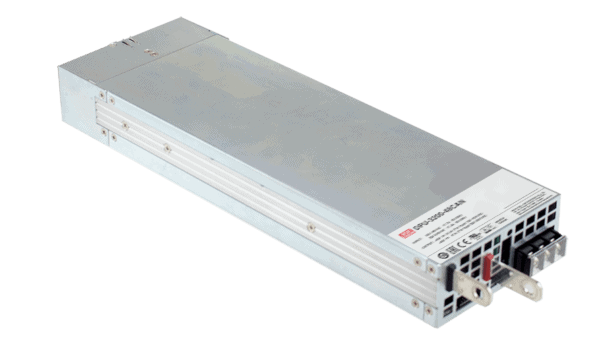

DPU-3200-24 is a 3.2kW power supply unit with a 1U profile and a very high power density. Equipped with numerous functions such as parallel function, remote ON-OFF, 5V and 12V auxiliary voltages, system integration is made easier.
Technical data
- Input voltage 90 to 264Vac (derating at input <180Vac)
- with active PFC
- Very high efficiency up to 94.5%
- Remote Sense and Remote On/Off functions integrated
- Auxiliary circuit 12V/0.8A and 5V/0.3A
- Output voltage can be trimmed between 50 - 125% using an external control signal
- Output current can be trimmed between 20 - 100% using an external control signal
- Current sharing (4+1) up to 16kW
- Alarm signal outputs (TTL open collector signal): DC OK, temperature alarm
- Operating temperature range from -30°C to +70°C (derating from +50°C)
- Optionally available with CANBUS or PMBUS
- Dimensions 325.8 x 107 x 41mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet DPU-3200 | PDF(588.19 KB) |
|---|---|
| Test Report DPU-3200-24 | PDF(498.01 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration DPU-3200 | PDF(74.41 KB) |
Downloads
| 3D data DPU-3200 | Zip file (707.67 KB) |
|---|
