Enclosed power supplies
3000W Power supply 400V/7.5A
CHF 391.60 excl. VAT, plus shipping costs
Item no:
CSP-3000-400
Stock:1 Available immediately
Packaging ex works:
4 piece
5+ CHF 391.60 CHF 373.00 (4%save)
10+ CHF 373.00 CHF 356.50 (8%save)
20+ CHF 356.50 CHF 346.20 (11%save)
Description

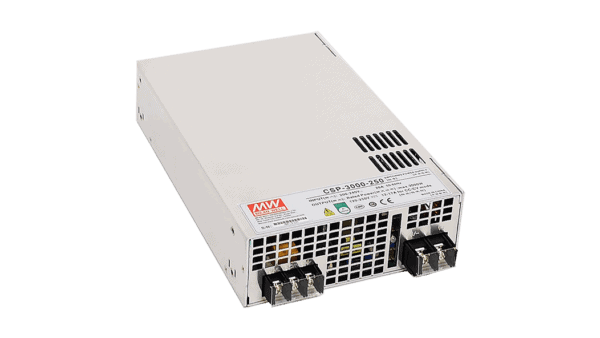

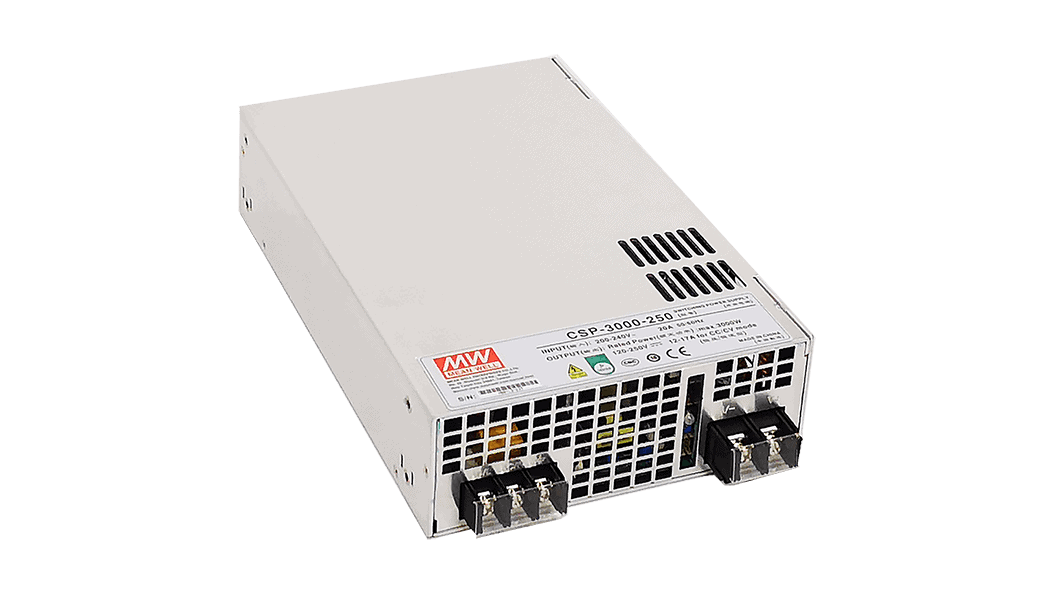

CSP-3000-400 is a 3000W AC/DC converter with high output voltage. The ability to control the constant current limit makes this series particularly suitable for laser applications, UV curing and as a charger.
Technical data
- Input voltage 180 to 264Vac
- with active PFC
- High efficiency of 93%
- Voltage and current programmable
- Active current sharing up to 7200W (2×1)
- Remote ON/OFF and Power OK signal
- Auxiliary output of 12V/0.4A
- Operating temperature range from -30°C to +70°C
- Dimensions 278 x 177.8 x 63.5mm (L x W x H)
Additional information
| Enclosed power supplies | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet CSP-3000 | PDF(1.23 MB) |
|---|---|
| Test Report CSP-3000-400 | PDF(554.21 KB) |
| Installation Manual Enclosed | PDF(995.01 KB) |
| Carbon Footprint declaration CSP-3000 | PDF(74.03 KB) |
Downloads
| 3D data CSP-3000 | Zip file (808.17 KB) |
|---|
Accessories
-

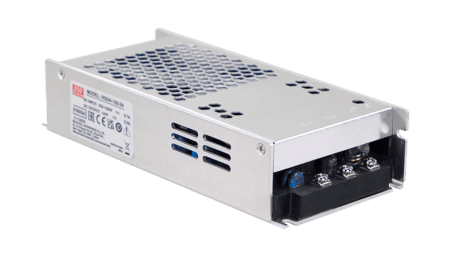

RSDH-150-24
150W DC/DC converter, input 250...1500V, output 24V/6.2ACHF 65.50Available to order -
CFB750-300S24
748W DC/DC converter, input 200...425V, output 24V/31.2ACHF 324.70Available to order
Similar products
-

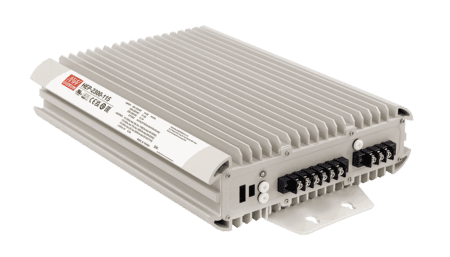

HEP-2300-380
2300W Power supply 380V/6.05ACHF 777.90Available to order -

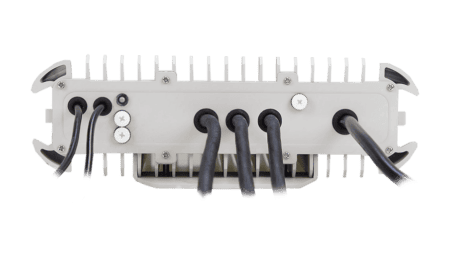

HEP-2300-380W
2300W power supply 380V/6.05A, IP67CHF 795.40Available to order -

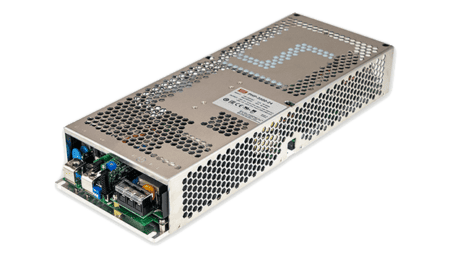

PHP-3500-380
