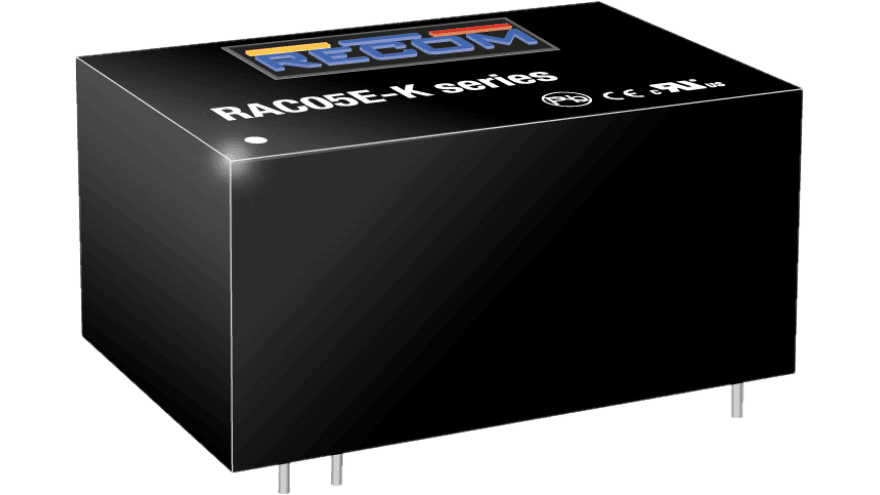

5W AC/DC power supply unit, PCB mounting, 24V/208mA
CHF 6.45 excl. VAT, plus shipping costs
Description
The low-cost primary-side regulated AC/DC converters of the RAC05E-K series are designed for general requirements in the ITE and office sector as well as for household applications or light industrial automation processes with a power consumption of less than 0.1W without load. The footprint is based on the current industry standard pinning for AC/DC modules from 3W with only slightly increased height. The AC/DC modules are UL and CB certified to IEC62368-1 and EN60335-1 standards for household applications. Certified for full load operation from -25°C to +55°C and worldwide input voltage ranges of nominal 100-240Vac, the modules provide moderately regulated outputs with permanent short-circuit and overvoltage protection. With just a few additional components, the limit values of EN55014 and EN55032 Class B for electromagnetic compatibility are complied with.
Technical data
- 100-240VAC input
- Controlled on the primary side
- Standard industry pinout
- Full load operation: -25 to 55°C
- Power consumption without load <100mW
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet RAC05E-K | PDF(1.92 MB) |
|---|
Downloads
| 3D Step File RAC05E-K | Zip file (112.9 KB) |
|---|
