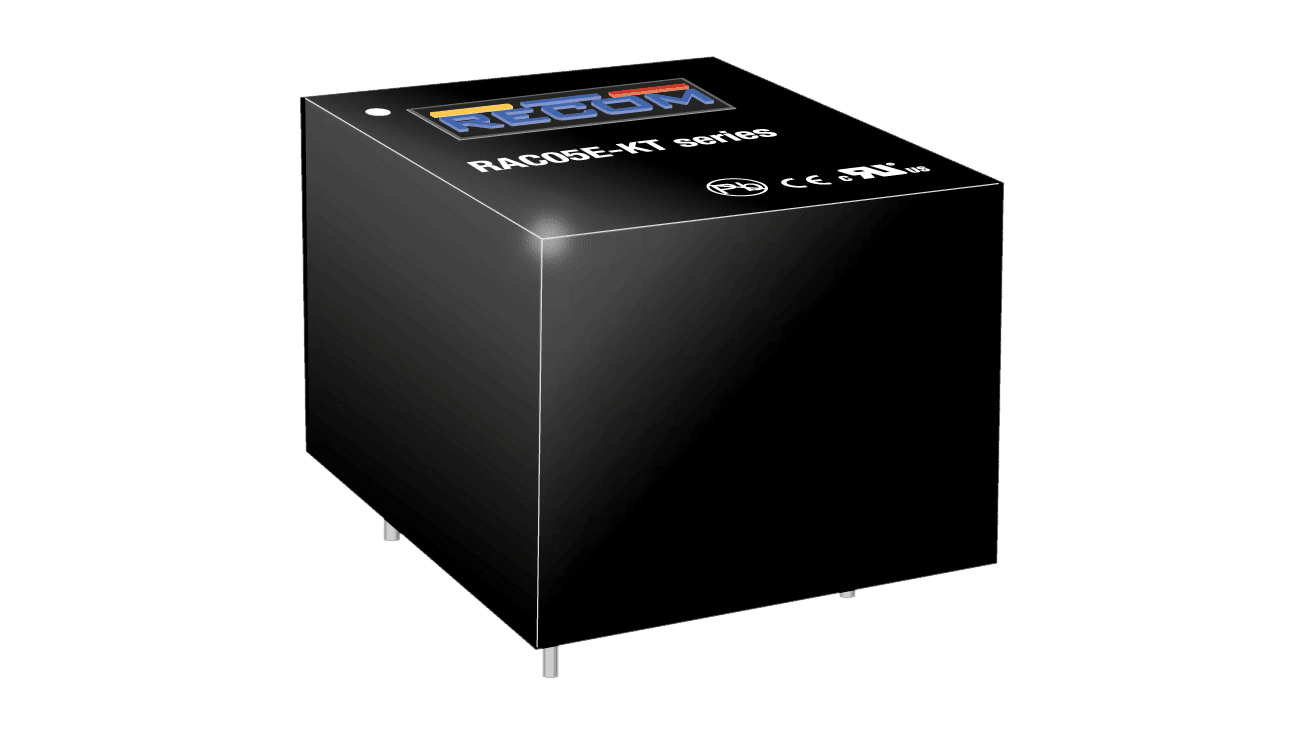

5W AC/DC power supply unit, PCB mounting, 5V/1000mA
CHF 5.85 excl. VAT, plus shipping costs
Description
The RAC05E-KT series of low-cost primary regulated AC/DC converters are designed for general ITE and office requirements as well as for household applications or light industrial automation processes with a power consumption of less than 0.1 W in no-load operation. The footprint is based on the usual industry standard pinning for EI30 transformers and AC/DC modules such as the RAC05-K/277 series for increased power. The RAC05E-KT modules have the L and CB certifications of the IEC62368-1 and EN60335-1 standards for domestic applications. Certified for full load operation from -25°C to +55°C and worldwide input voltage ranges of nominal 100-240Vac, the modules provide moderately regulated outputs with permanent short-circuit and overvoltage protection. Without external components, the series complies with EN55014; EN55032 Class B and FCC15 for worldwide electromagnetic compatibility.
Technical data
- 100-240VAC input
- Primary side controlled
- Terminal assignment of EI-30 transformer
- Full load operation: -25 to 55°C
- Power consumption at no load <100mW
- Household and ITE-certified
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
| More | ||||||||||||||||||||
|
||||||||||||||||||||
Data sheets
| Data sheet RAC05E-KT | PDF(2.16 MB) |
|---|
Downloads
| 3D Step File RAC05E-K | Zip file (139.13 KB) |
|---|
Accessories
-
RKK-0505S/H
1W DC/DC converter, input 5V, output 5V/200mACHF 1.8525 Available immediately -
R-78K3.3-0.5
0.5A switching regulator, input 4.5...36V output 3.3V/500mA, SIP3CHF 2.3038 Available immediately -
R1SE-0505
1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SMDCHF 3.2040 Available immediately -
RFM-0505S
1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SIP4CHF 1.6042 Available immediately -
ROE-0512S
1W DC/DC converter, input 5V, output 12V/84mA, SIP4CHF 3.0042 Available immediately
Similar products
-
RAC05-05SK/480
5W AC/DC power supply unit, PCB mounting, 5V/1ACHF 15.1514 Available immediately -

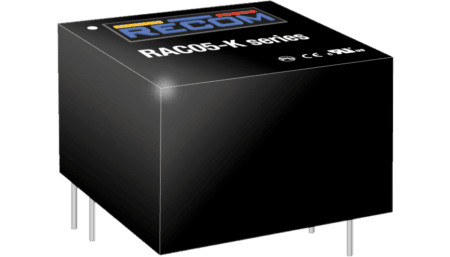

RAC05-05SK
