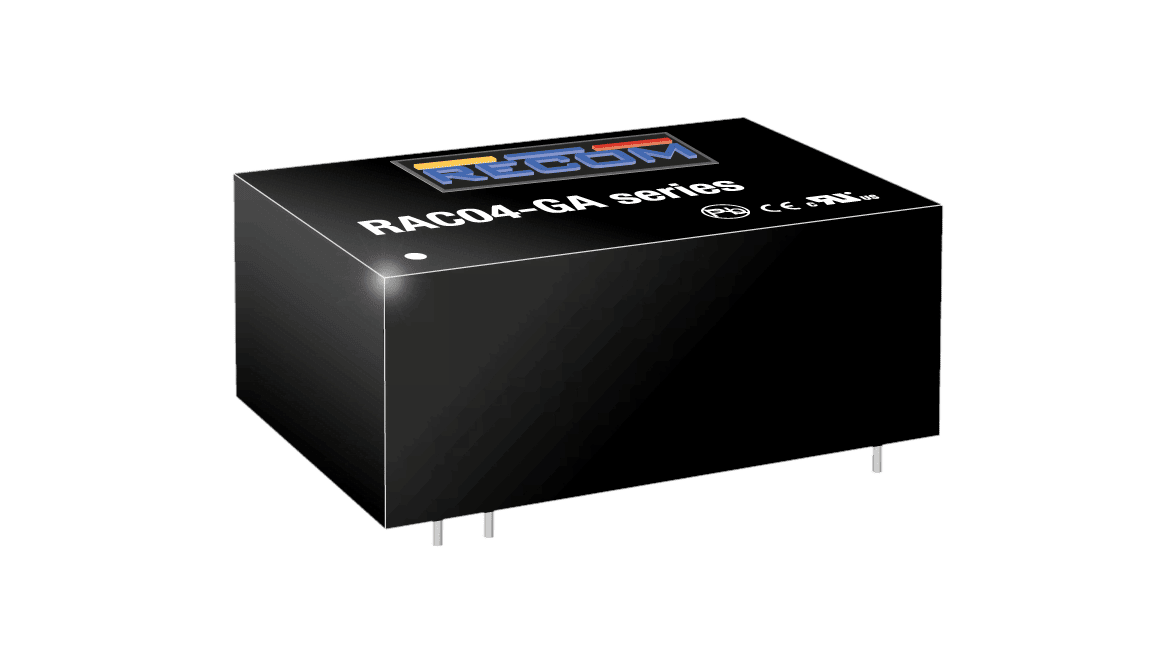

4W AC/DC power supply unit, PCB mounting, 5V/800mA
CHF 10.25 excl. VAT, plus shipping costs
Description
The RAC04-GA series are cost-effective AC/DC power supplies for PCB mounting. They have a universal AC input voltage range, regulated and short-circuit proof isolated DC outputs, low standby power consumption and an operating temperature range of -40°C to +85°C. The RAC04-GA have a built-in Class A / FCC Part 15 EMC filter, are certified to IEC/EN/UL60950-1 and EN60335 as well as IEC/EN/UL62368 and EN61558 safety standards and come with a three-year warranty.
Technical data
- Universal input 85-305VAC
- 4W PCB mounting housing
- <75mW power consumption without load
- Ultra-flat profile, compact size
- -40°C to +85°C Operating temperature
- Continuous SCP, OCP, OVP
- IEC/EN/UL60950 and EN60335-1 certified, EN55032 Class A
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet RAC04-GA | PDF(629.12 KB) |
|---|
Downloads
| 3D Step File RAC04-GA | Zip file (109.79 KB) |
|---|
Accessories
-
RKK-0505S/H
1W DC/DC converter, input 5V, output 5V/200mACHF 1.8525 Available immediately -
R-78K3.3-0.5
0.5A switching regulator, input 4.5...36V output 3.3V/500mA, SIP3CHF 2.3038 Available immediately -
R1SE-0505
1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SMDCHF 3.2040 Available immediately -

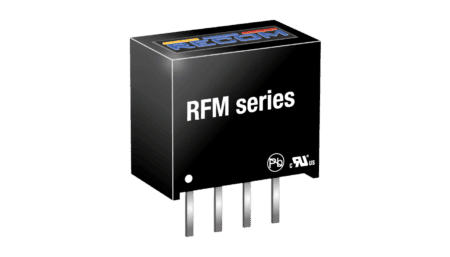

RFM-0505S
1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SIP4CHF 1.6042 Available immediately -
ROE-0512S
1W DC/DC converter, input 5V, output 12V/84mA, SIP4CHF 3.0042 Available immediately
Similar products
-

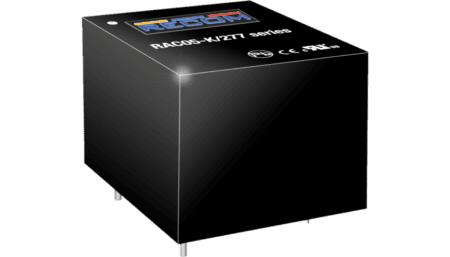

RAC05-05SK/277
5W AC/DC power supply unit, PCB mounting, 5V/1ACHF 9.9512 Available immediately -
RAC05E-05SKT
5W AC/DC power supply unit, PCB mounting, 5V/1000mACHF 5.8511 Available immediately -

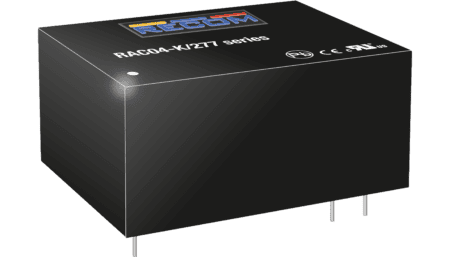

RAC04-05SK/277
4W AC/DC power supply unit, PCB mounting, 5V/800mACHF 8.55Available to order -

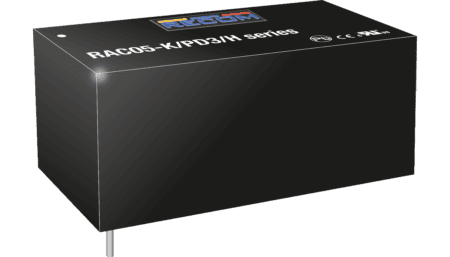

RAC05-05SK/PD3/H
5W AC/DC power supply unit, PCB mounting, 5V/1ACHF 15.15Available to order -
IRM-05-5
5W AC/DC power supply unit, PCB mounting, 5V/1ACHF 6.306 Available immediately -

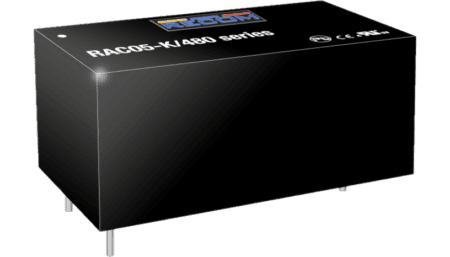

RAC05-05SK/480
5W AC/DC power supply unit, PCB mounting, 5V/1ACHF 15.1514 Available immediately
