PCB mount power supplies
5W medical AC/DC power supply unit, PCB mounting, 5V/1A
CHF 7.30 excl. VAT, plus shipping costs
Item no:
MPM-05-5
Stock: Available to order
Packaging ex works:
270 piece
5+ CHF 7.30 CHF 6.90 (5%save)
10+ CHF 6.90 CHF 6.60 (9%save)
20+ CHF 6.60 CHF 6.40 (12%save)
Description
MPM-05-5 is an ultra-compact AC-DC power supply with medical approval for PCB mounting in an encapsulated housing.
Technical data
- Input voltage 80 to 264Vac
- No load power consumption 0.075W
- Very low leakage current (80µA)
- Protection class II Device without earth connection
- Wide temperature range from -40 to +85°C
- 2x MOPP (insulation: primary to secondary)
- Service life >48,000 hours
- Suitable for BF applications
- Operating altitude up to 5000 meters
- Short-circuit, overload, overvoltage and overtemperature protection
- Medical approval according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
- The design complies with household approval EN60335-1
- Dimensions 45.7 x 25.4 x 21.5mm (L x W x H)
Additional information
| Power supply units for PCB mounting | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| LEDs | ||||||||||||||||||
|
|
||||||||||||||||||
| More | ||||||||||||||||||
|
||||||||||||||||||
Data sheets
| Data sheet MPM-05 | PDF(256.75 KB) |
|---|---|
| Test Report MPM-05-5 | PDF(236.99 KB) |
| Installation instructions PCB power supply units | PDF(830.11 KB) |
Downloads
| 3D data MPM-05 | Zip file (199.44 KB) |
|---|
Accessories
-
RKK-0505S/H
1W DC/DC converter, input 5V, output 5V/200mACHF 1.8525 Available immediately -
R-78K3.3-0.5
0.5A switching regulator, input 4.5...36V output 3.3V/500mA, SIP3CHF 2.3038 Available immediately -
R1SE-0505
1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SMDCHF 3.2040 Available immediately -
RFM-0505S
1W DC/DC converter, input 5V +/-10%, output 5V/200mA, SIP4CHF 1.6042 Available immediately -
ROE-0512S
1W DC/DC converter, input 5V, output 12V/84mA, SIP4CHF 3.0042 Available immediately
Similar products
-
RAC05E-05SKT
5W AC/DC power supply unit, PCB mounting, 5V/1000mACHF 5.8511 Available immediately -
RACM06E-05SK/277
6W AC/DC power supply unit, PCB mounting, 5V/1200mA, industrial, medical, householdCHF 8.1018 Available immediately -

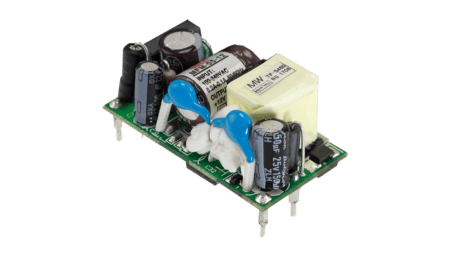

MFM-05-5
