LED constant voltage
45W LED driver constant voltage 24V/1.88A, DALI2, AC Push
CHF 72.50 excl. VAT, plus shipping costs
Item no:
LS-45-24 DALI2 LI1
Stock:264 Available immediately
Packaging ex works:
90 piece
Description

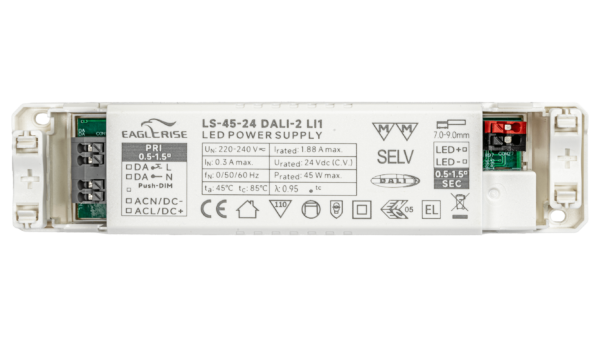

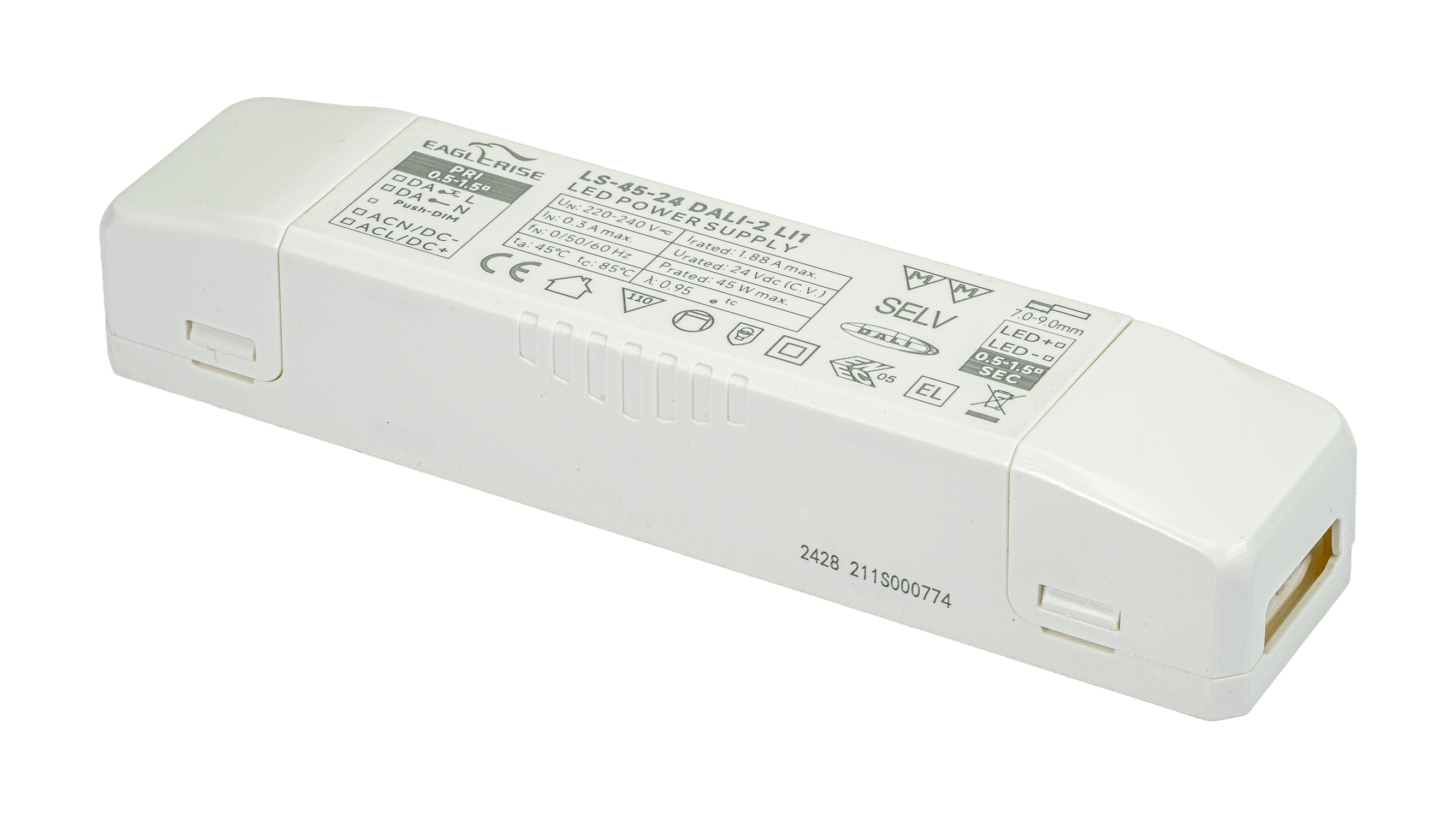

LS-45-24 DALI2 LI1 is a 45W LED converter with 24Vdc output voltage. The light can be controlled via DALI2 or with a simple push-button (AC Push). The 20kHz PWM dimming frequency ensures flicker-free dimming. The connection with spring terminals enables quick and uncomplicated installation.
Technical data
- No load power consumption 0.5W
- Built-in DALI2 interface and AC Push
- Output voltage with PWM dimming with a high dimming frequency of 20kHz
- Protection class II Driver without earth connection
- Circuit optimized to avoid glowing LEDs
- Spring clamps and tool-free mounting of the covers make installation easier
- EOFI Level 15%
- Operating temperature range from -20°C to +60°C
- Dimensions 168 x 38 x 30mm (L x W x H)
Additional information
| LED constant voltage | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
Data sheets
| Data sheet LS-45-24 DALI2 LI1 | PDF(1.43 MB) |
|---|---|
| Operating instructions AC Push | PDF(153 KB) |
| Eaglerise LED Driver Installation Manual | PDF(327.31 KB) |
