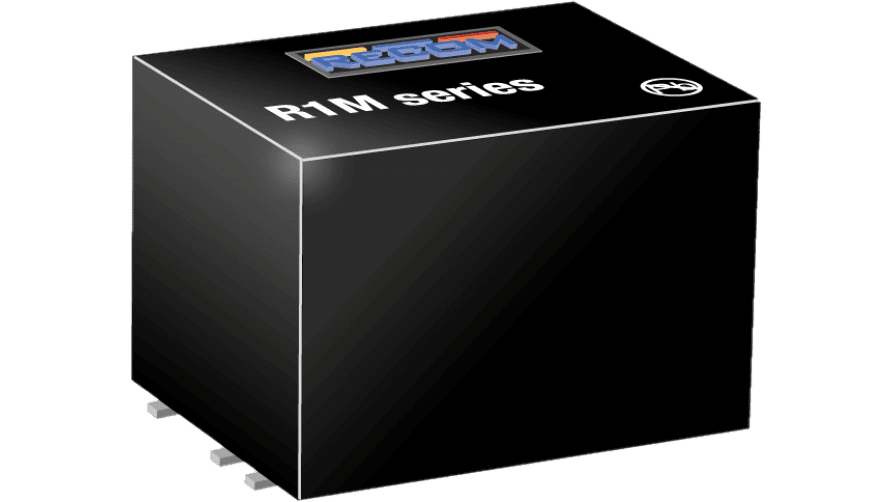

1W DC/DC converter, input 4.5...18V output 15V/70mA, SMD
CHF 19.55 excl. VAT, plus shipping costs
Description
R1M is an isolated 1W DC/DC converter in a compact SMD package, available with 4:1 inputs for 5, 12, 24 and 48V voltages and offering single or dual regulated, short-circuit proof outputs. No minimum load is required. The isolation is 1.6kVDC/1min and the operating temperature ranges from -40°C to +90°C without derating. Only a few external components are required for class A and B EMC compliance.
Technical data
- 1W power in SMD housing
- 4:1 Input voltage range
- Efficiency of up to 81
- 1.6kVDC/1min Insulation
- Regulated output
- -40°C to +90°C at full load
- Permanently short-circuit protected
Additional information
| DC-DC converter | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Data sheets
| Data sheet R1M | PDF(253.54 KB) |
|---|
Downloads
| 3D Step File R1M | Zip file (151.05 KB) |
|---|
