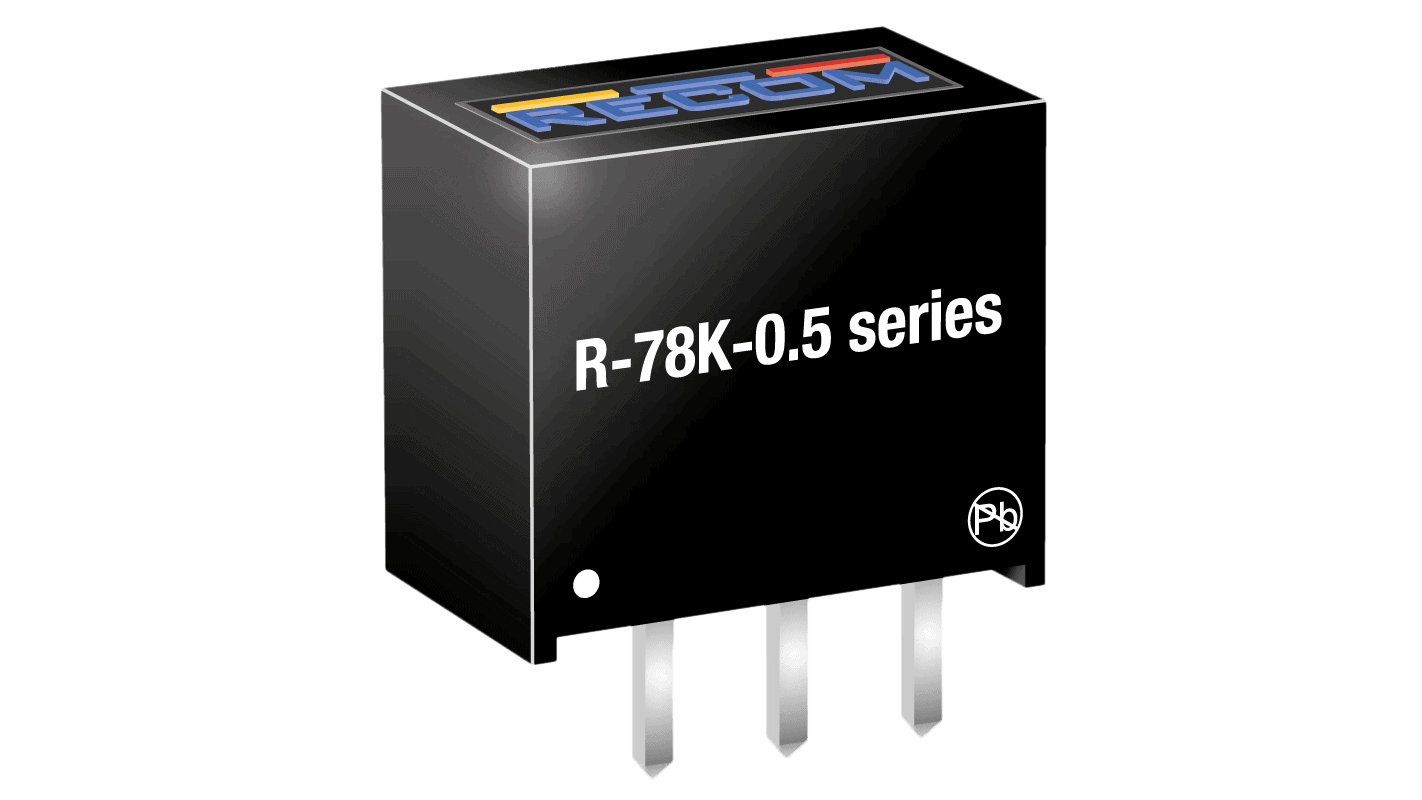

0.5A switching regulator, input 4.5...36V output 2.5V/500mA, SIP3
CHF 2.30 excl. VAT, plus shipping costs
Description
The R-78K-0.5 series is a switching regulator that offers all the advantages (high efficiency, wide input range, precise output voltage regulation) at a low cost. Due to the high efficiency of the R-78K-0.5 of up to 96%, no heat sink is required and full load operation from -40 to 90°C is possible. The compact TO-220 compatible SIP3 package measures only 11.5 x 7.55 x 10.2 mm, saving valuable space on the PCB.
Technical data
- Efficiency of up to 96%, no heat sinks required
- Wide input voltage range
- Operation at an ambient temperature of -40°C to +90°C without derating
- Pin-compatible with 78 series controllers
- Non-isolated DC/DC converter
- Undervoltage and short-circuit protection
Additional information
| DC-DC converter | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| Data sheet R78K-0.5 | PDF(363.42 KB) |
|---|
Downloads
| 3D Step File | Zip file (174.35 KB) |
|---|
Similar products
-
R-78K2.5-2.0
2A switching regulator, input 4.5...36V output 2.5V/2000mA, SIP3CHF 4.35Available to order -

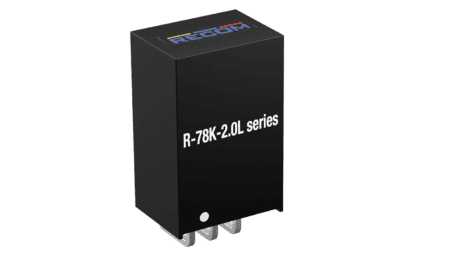

R-78K2.5-2.0L
