DC/DC DIN rail mounting
15W DC/DC converter, input 18...75V, output 12V/1.25A
CHF 18.50 excl. VAT, plus shipping costs
Item no:
DDR-15L-12
Stock:3 Available immediately
Packaging ex works:
160 piece
5+ CHF 18.50 CHF 17.70 (4%save)
10+ CHF 17.70 CHF 16.90 (8%save)
20+ CHF 16.90 CHF 16.40 (11%save)
Description

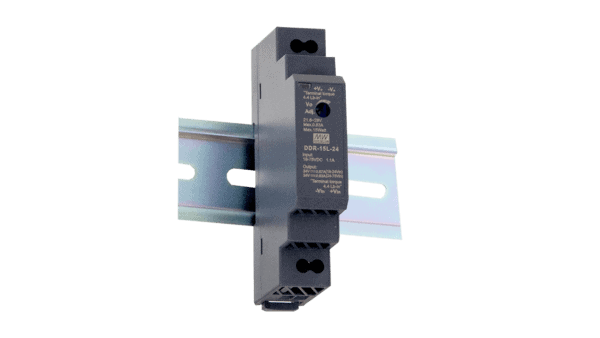

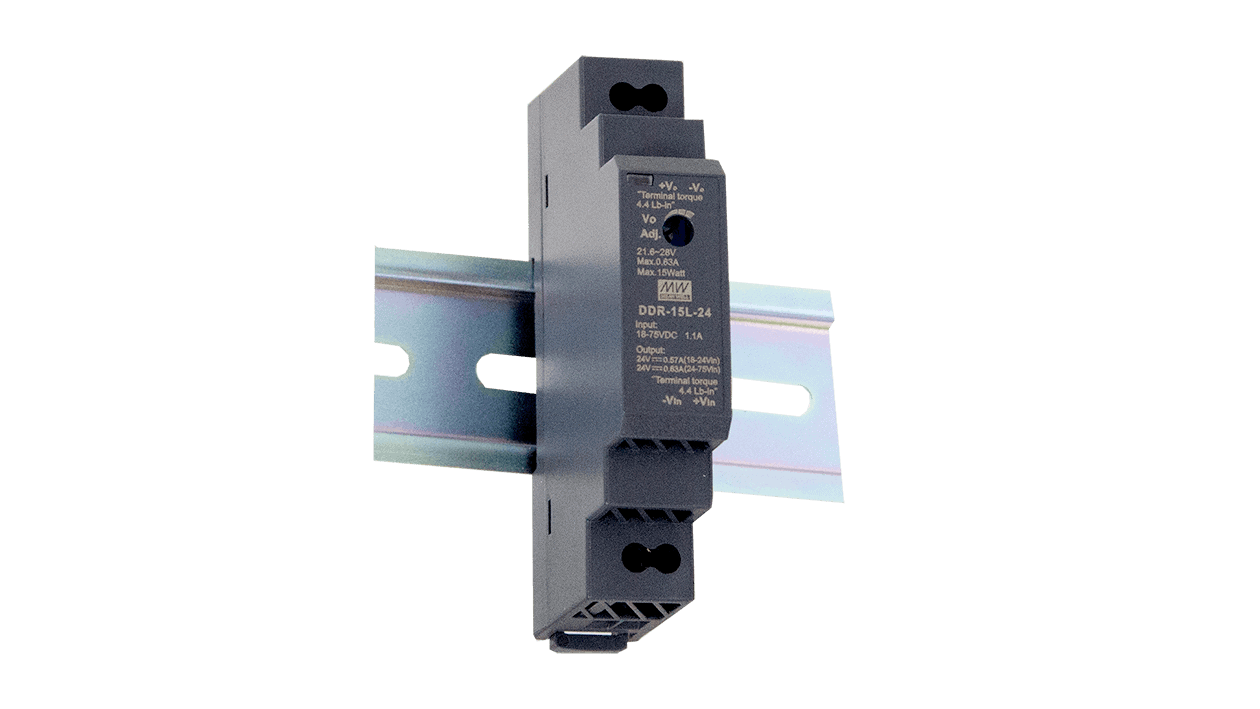

DDR-15L-12 is a 15 Watt DC/DC converter for direct mounting on the DIN rail.
Technical data
- Width only 17.5mm (1SU)
- 4:1 very wide input voltage range
- -40°C to +85°C wide temperature range
- No minimum load required
- Output voltage adjustable (+/-10%)
- Convection cooling
- For DIN Rail TS-35/7.5 or 15
- Protective circuits: Short circuit/overcurrent/overvoltage/input polarity reversal/input undervoltage
- 4KVdc I/O Reinforced Isolation
- 3-year guarantee
- Manufacturer MEAN WELL
Additional information
| DC-DC converter | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet DDR-15 | PDF(218.45 KB) |
|---|---|
| Test Report DDR-15L-12 | PDF(322.61 KB) |
| Installation Manual DDR | PDF(872.62 KB) |
| Carbon Footprint declaration DDR-15 | PDF(73.37 KB) |
Downloads
| 3D data DDR-15 | Zip file (381.84 KB) |
|---|
