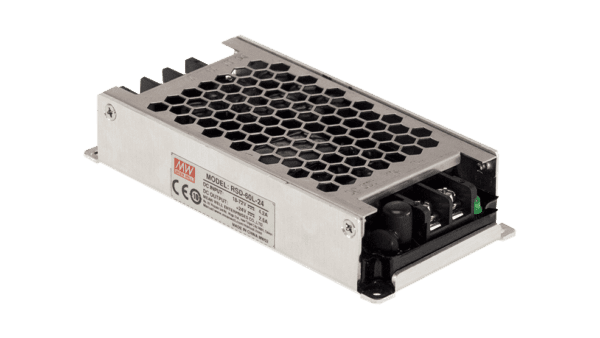

60W DC/DC converter, input 18...72V, output 24V/2.5A
CHF 39.20 excl. VAT, plus shipping costs
Description
RSD-60L-24 is a robust DC-DC converter with railroad approvals. With an operating temperature range of -40°C to +70°C, a 4:1 input range, low voltage ripple, excellent EMC characteristics and an isolation voltage of 4KVdc, the RSD-60 series is suitable for automotive systems, railroad applications and industrial applications with harsh environmental conditions with high vibrations, a lot of dirt and extreme temperature conditions.
Technical data
- 4:1 Entrance area
- 4000Vdc insulation
- Convection-cooled without forced ventilation
- Half potted
- Overload circuit with constant current limiting
- Complies with railroad approval EN50155 and EN45545-2
- Operating temperature range from -40°C to +70°C
- Dimensions 128 x 60 x 25mm (L x W x H)
- 3-year guarantee
- Manufacturer MEAN WELL
Additional information
| DC-DC converter | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||
|
|
||||||||||||||||||||||
| More | ||||||||||||||||||||||
|
||||||||||||||||||||||
Data sheets
| Data sheet RSD-60 | PDF(415.67 KB) |
|---|
Downloads
| 3D data RSD-60 | Zip file (305.91 KB) |
|---|
