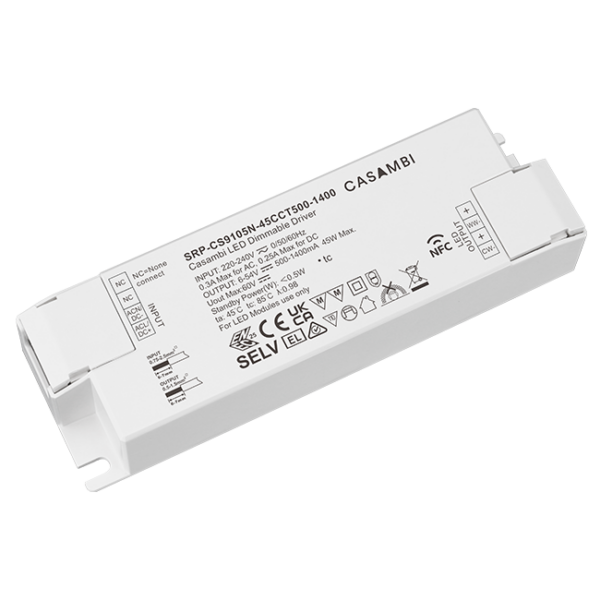

45W Casambi, Tunable white, constant current LED driver, NFC
CHF 90.90 excl. VAT, plus shipping costs
Description
SRP-9105-45-TW-C1400NFC is a flexible, dimmable 45W Tunable white LED converter with constant current output. The power supply can be controlled with Casambi. The output current can be set between 500 and 1400mA via NFC.
Control
- Casambi
Application
- Tunable White
Current setting
- NFC
Functions programmable with app and NFC
- CLO (Constant Lumen Output)
- EL (Emergency Mode)
Dimming range
The load-dependent dimming range is 0.1% to 100%
Dimming method: Amplitude dimming
Technical data
- Casambi dimmable 2-channel power supply unit
- 200-240VAC / 176-280VDC wide input voltage range
- 2-channel constant current output (total output power up to 45W)
- Output current adjustable from 500mA to 1400mA via NFC
- VF: 6-54VDC
- Class 2 power supply unit, fully insulated plastic housing
- High power factor and efficiency
- Amplitude dimming
- IP20
- Dimensions: 145x45x28mm
- 5 year guarantee
DOWNLOAD SR NFC TOOL
ANDROID APPLE
Additional information
| LED constant current | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||
| LEDs | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
| More | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
Data sheets
| SRP-9105-45-TW-C1400NFC | PDF(1.36 MB) |
|---|
Accessories
-
TIMER-CASAMBI
Backup timer Casambi, input 12-48Vdc, command APP CASAMBI - N.O. Push buttonCHF 197.509 Available immediately -

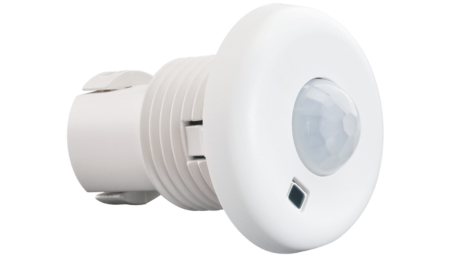

LSE-CASAMBI-FM
Casambi recessed luminaire PIR motion detector and brightness sensorCHF 87.5026 Available immediately -

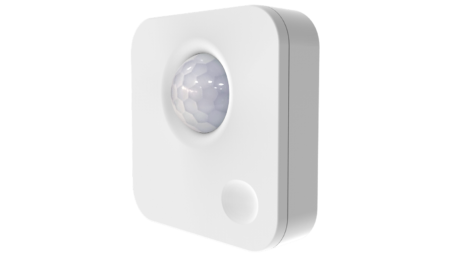

CASAMBI-PIR01
Casambi PIR sensor, whiteCHF 85.004 Available immediately -
PF12.6-C30-92765-UK
Flexible TW LED strip / CC version / 2700K & 6500K, CRI >90 / 12.6m6 Available immediately -
SO86-C84-S92765-UK
LED module ø86mm / TW / 2700K & 6500K / CRI >90 / 84LEDCHF 20.0083 Available immediately -
CABLE2M-TW-AWG20-HF
Tunable White AWG20 cable with white sheath, halogen-free (roll = 200m)CHF 300.00188 Available immediately -
CABLE1M-TW-AWG20
TW cable AWG20 (roll = 305m)CHF 240.001776 Available immediately -
1320200

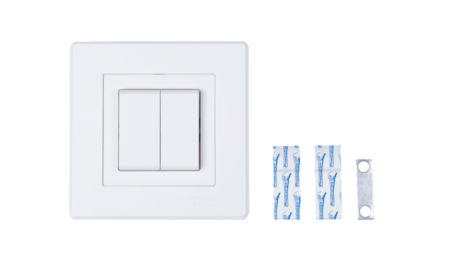

WS-LIV-BLE-2-WS Casambi wall transmitter white with dual rockerCHF 69.80Available to order
Similar products
-
SRP-9105-25-TW-C700NFC
25W Casambi, Tunable white, constant current LED driver, NFCCHF 81.002 Available immediately -

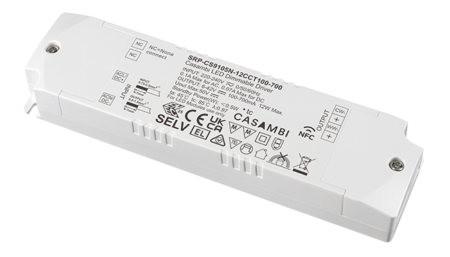

SRP-9105-12-TW-C700NFC
12W Casambi, Tunable white, constant current LED driver, NFCCHF 76.501 Available immediately
