LED IP modules
Channel module, edge lit, 6 x 3535 LED, 15×45°, 6500K, CRI >75
High-quality LED modules for advertising technology and signage
CHF 26.35 excl. VAT, plus shipping costs
Item no:
SC-EL-3535-6-865
Stock: Available to order
Description
- Side illumination modules with 3535 LEDs for illuminating light boxes in illuminated advertising / signage
- Suitable for double-sided light boxes with a depth of 8-30cm
- Available as a 3, 5 and 6 module
- High color consistency, color rendering and luminous efficacy
- Beam pattern: 15°x45°
- Seamless connection, various dimensions of light box applicable (15/10 modules)
- Long service life
- IP60
- 5 year guarantee
Technical data
- Operating voltage: 24V
- Power: 15W
- Luminous flux: 1650lm
- Color temperature: 6500K
- Color rendering: Ra>75
- Beam pattern: 15°x45°
- Dimension: 420x25x15.6mm
- Number of LEDs per module: 6
- Max. Number of modules in series: 10
Additional information
| LED IP modules | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||
| LEDs | ||||||||||||||||
|
|
||||||||||||||||
| More | ||||||||||||||||
|
||||||||||||||||
Data sheets
| SC-EL-3535-6-865 | PDF(444.32 KB) |
|---|
Similar products
-

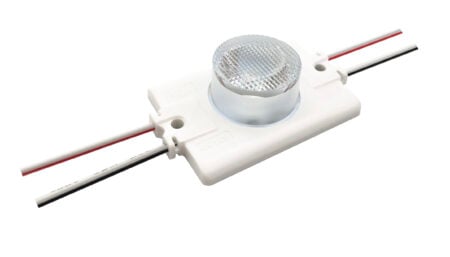

SC-ELH-3535-1-865
Channel module, edge lit, 1 x 3535 LED, 15×45°, 7000K, CRI >75CHF 3.15906 Available immediately -
SC-BL-283B-3-865
Channel module, back lit, 3 x LM283B+, 170°, 6500K, CRI >80CHF 2.204475 Available immediately -
SIMCHAN3535NB-4000K-12V
Channel module 1 x 3535, 60°/10°, 4000KCHF 3.60Available to order -
SC-BLLB-283B-96-865
Channel module, back lit, 12 x LM283B+, 170°, 6500K, CRI >80CHF 12.3096 Available immediately -
SC-EL-3030-1-840
Channel module, edge lit, 1 x 3030 LED, 10×65°, 4000K, CRI >80CHF 1.75714 Available immediately -
SIMCHAN3535NB-6500K-12V
Channel module 1 x 3535, 60°/10°, 6500KCHF 3.603275 Available immediately -
SC-BLMINI-283B-2-840
Channel Module Mini, back lit, 2 x LM283B+, 180×140°, 4000K, CRI >80CHF 1.151700 Available immediately -
SC-BL-283B-3-840
Channel module, back lit, 3 x LM283B+, 170°, 4000K, CRI >80CHF 2.203560 Available immediately -
SC-BL-3030-4-82765
Channel module Tunable White, back lit, 4 x 3030 LED, 160°, 2700-6500K, CRI>80CHF 7.00420 Available immediately -

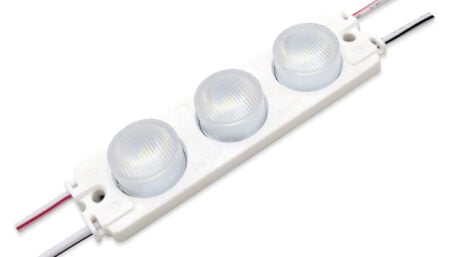

SC-EL-3030-3-865
