LED dimmer

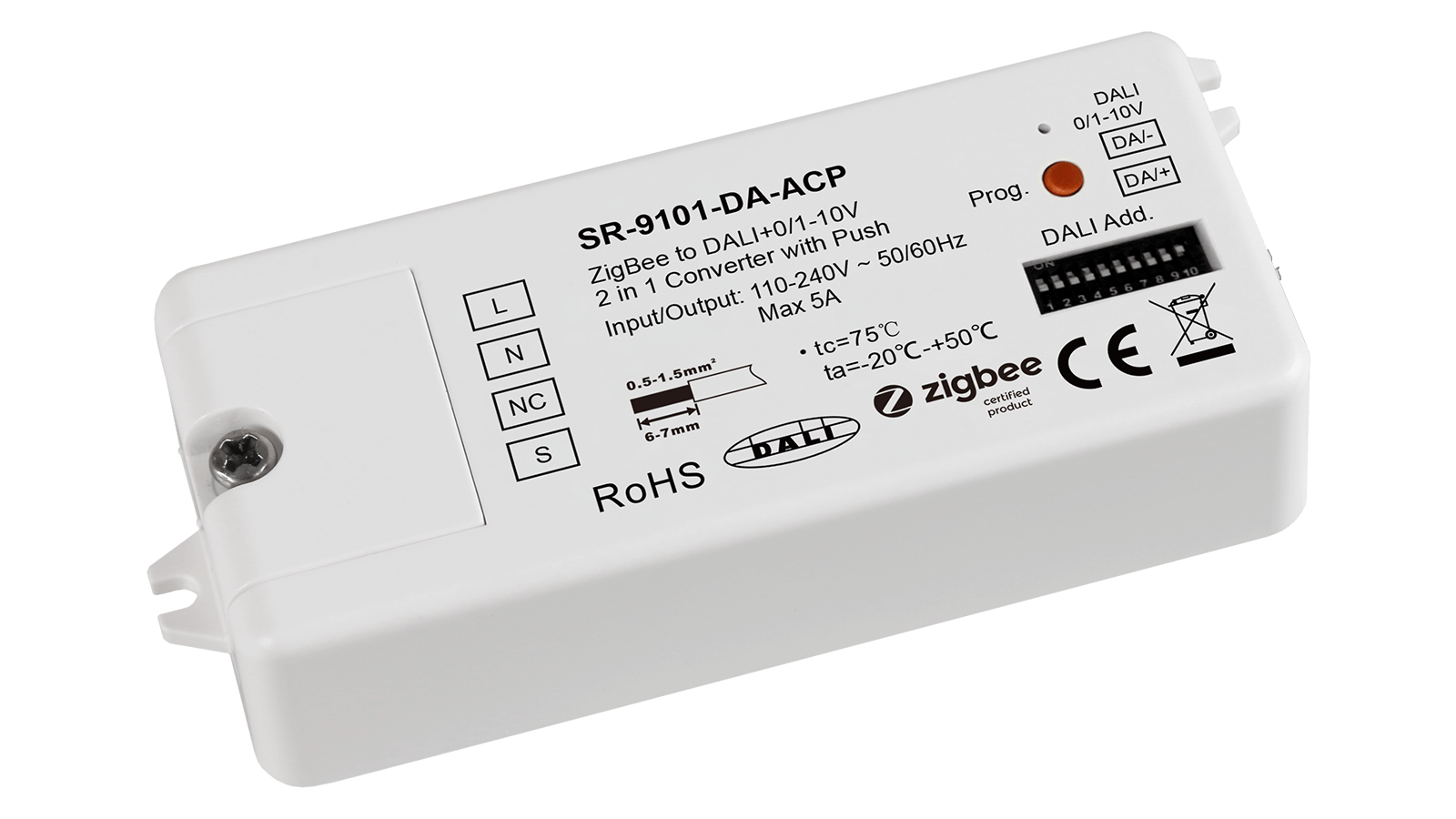

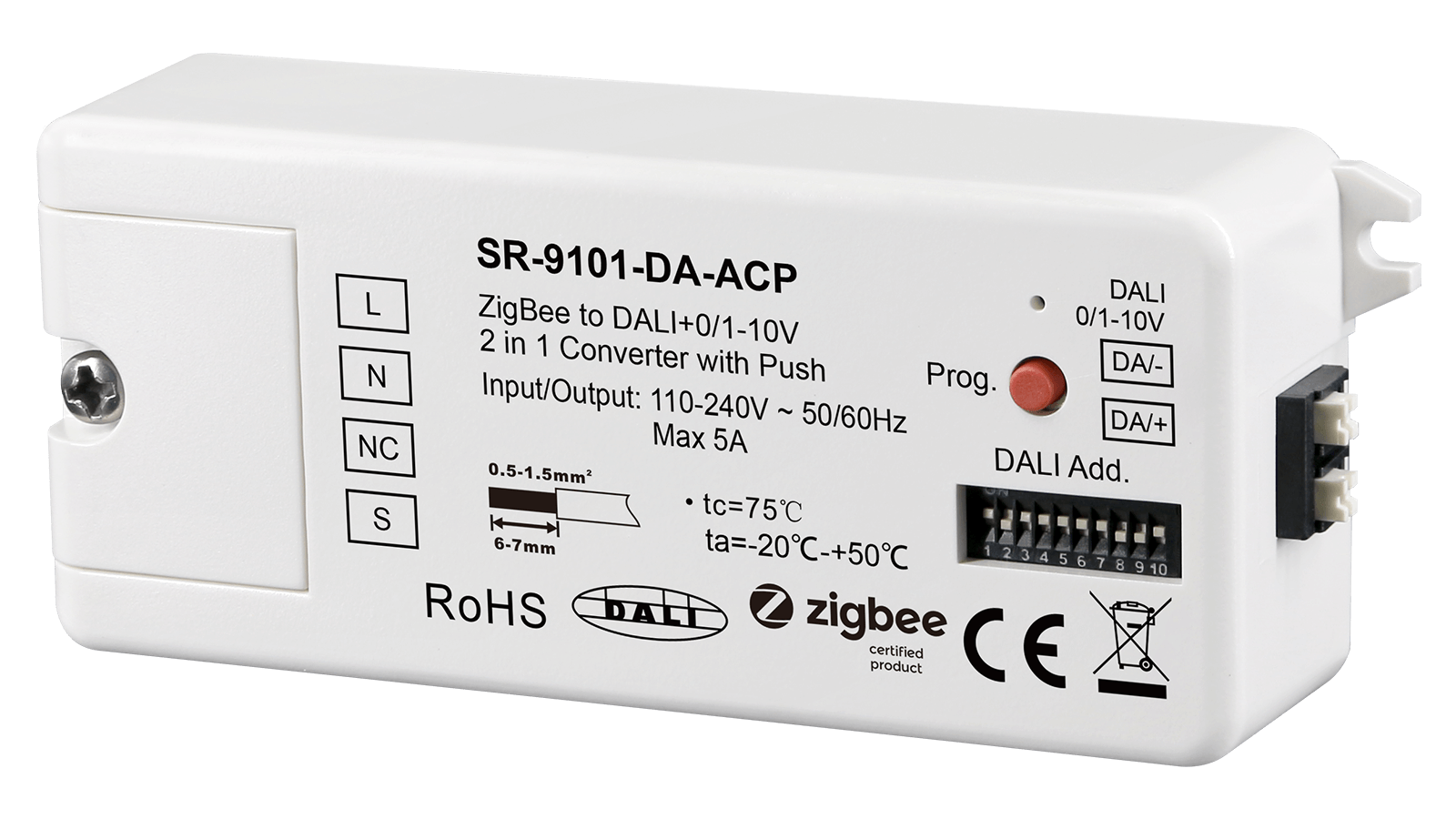

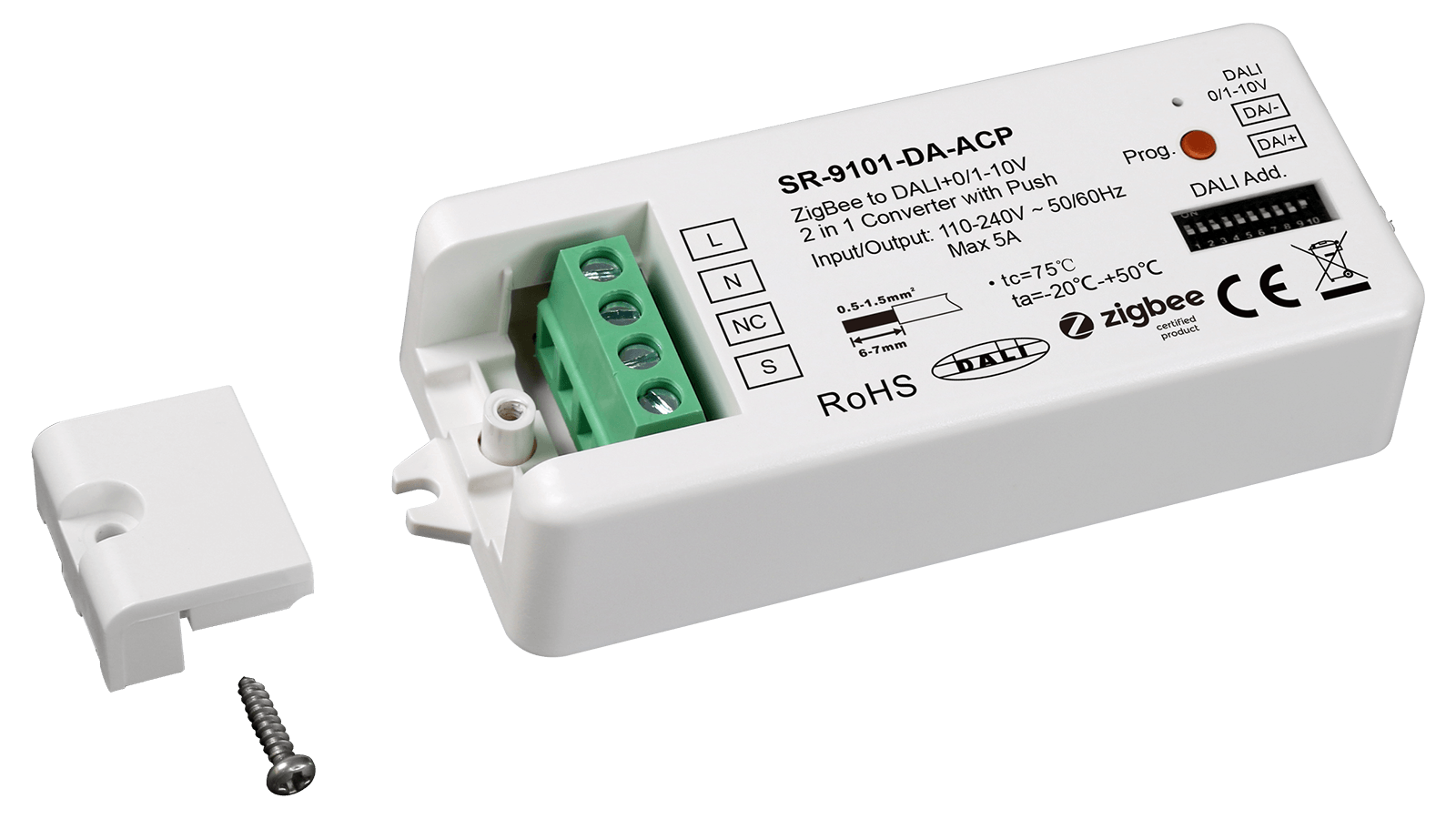

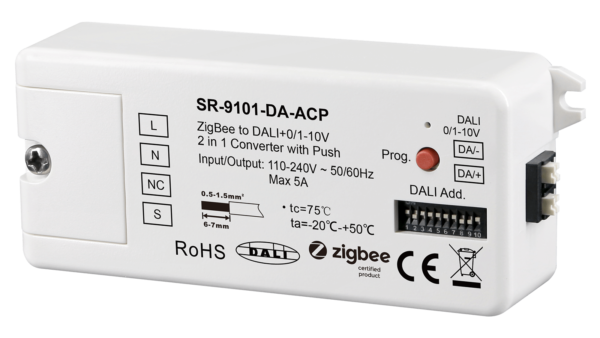

Signal converter ZIGBEE 3.0 + Push to DALI DT6/DT8 + 0/1-10V
CHF 61.00 excl. VAT, plus shipping costs
Item no:
SR-9101-DA-ACP
Stock: Available to order
Description
- Zigbee+Push to DALI+0/1-10V converter based on Zigbee 3.0
- Zigbee signal input & push-button input, DALI output on DALI line or 0/1-10V signal output, 110-240VAC power input
- Can be controlled by both Zigbee signal and push-button input
- Integrates existing push-buttons in DALI or 0/1-10V
- Compatible with universal Zigbee gateway or hub products
- Can be paired directly with a compatible ZigBee remote control via Touchlink
- Compatible with universal Zigbee remote controls
- Supports self-forming Zigbee networks without a coordinator
- Supports find-and-bind mode for binding a ZigBee remote control
- Supports Zigbee Green Power and can handle max. 20 zigbee green power switches
- DALI signal or 1-10V signal output selectable via DIP switch
- Built-in DALI bus power supply, no additional DALI bus PS required
- With max. 50mA DALI bus current output
- For supplying up to 25 DALI ballasts with control current
- DALI DT6 or DT8 Device type selectable via DIP switch in DALI mode
- Color control according to DALI specifications of device type 8,
- Color type: Tc, XY coordinates, RGBW selectable via DIP switch
- DALI address control mode or group control mode selectable via DIP switch
- Allows you to select the DALI address (00-63) to be controlled via DIP switches
- Allows you to select the DALI group (0-15) to be controlled via DIP switches
- Enables the control of 1 DALI group of devices or 1 DALI address on the DALI line
- Enables control of all devices on the DALI line via broadcast
Additional information
| LED dimmer | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| LEDs | ||||||||||||||||||||
|
|
||||||||||||||||||||
Data sheets
| SR-9101-DA-ACP | PDF(1.11 MB) |
|---|
